Contrinex 620 100 474 LHK-3131-303
EAN:
Part number:
Item no:
Product type
Retroreflective photo sensor
Functions
Light-ON
Background suppression
Max. operating voltage
36 V DC
Connector
Cable, open end
Type
LHK-3131-303
Datasheet (PDF)
Number
Total (€ 96.63 / piece)
€ 105.04
-8 %
€ 96.63
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Contrinex 620 100 474 LHK-3131-303
Our service for you
Technical specifications
- Product type
Retroreflective photo sensor
- Type
LHK-3131-303
- Functions
Light-ON
Background suppression
- Min. operating voltage
10 V DC
- Max. operating voltage
36 V DC
- Operating voltage
10 - 36 V DC
- Outputs
PNP
- Connector
Cable, open end
- Cable length
2.00 m
200 mm
IP67
- Min. temperature
-25 °C
- Max. temperature
+55 °C

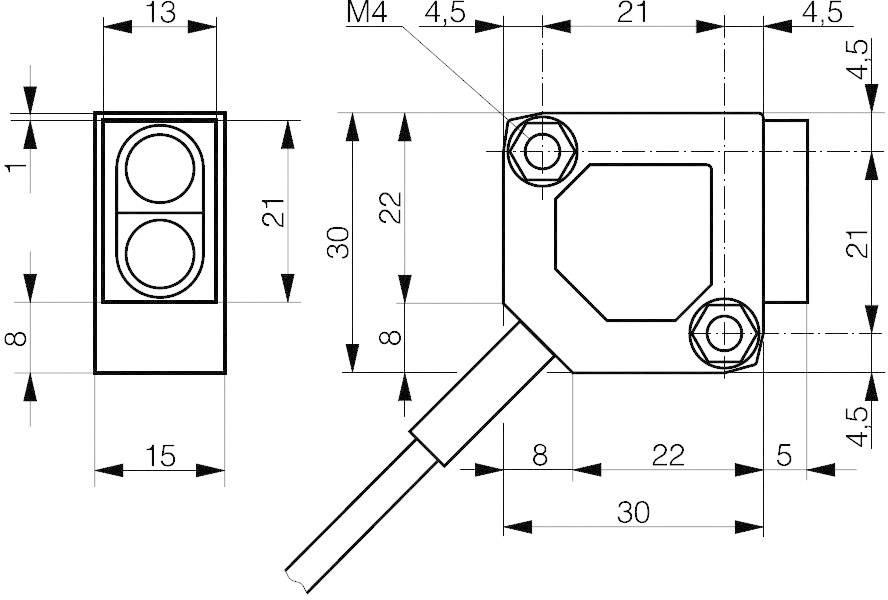

- Length
30 mm
- Width
30 mm
- Height
15 mm
- Dim
(L x W x H) 30 x 30 x 15 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- Type
Reflex light sensor with HGA
- Type
LHK-3131-303
- Range
15 - 200 mm
- Connection
PVC cable, 2 m
- Operating voltage
10 - 36 V DC
Documents & Downloads
Datasheet
Datasheet 155919 Contrinex 620 100 474 LHK-3131-303
User & Safety Instructions
User & Safety Instructions 155919 Contrinex 620 100 474 LHK-3131-303
Description
Small, rugged, square design, visible red light, glass window is scratch-resistant and easy to clean.
This text is machine translated.
This text is machine translated.
Hints
For more information on this 620 100 474, please refer to its datasheet under 'downloadable documents'
