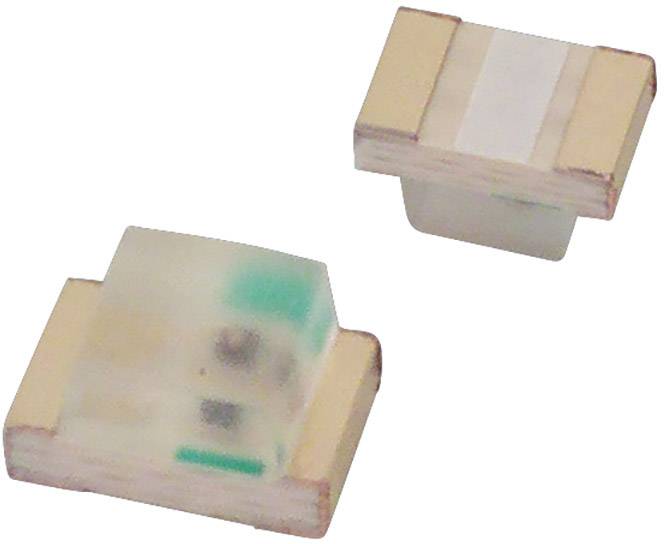

Lite-On LTST-C170GKT SMD LED 2012 Green 6 mcd 130 ° 10 mA 2.1 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
2.1 V
Forward current I(F)
10 mA
Type
SMD
Type
2012
Datasheet (PDF)
Number
Minimum order quantity: 100
Multiple: 100
Total (€ 0.04 / piece)
€ 4.00
plus VAT.
Technical specifications
- Product type
SMD LED
- Type
LTST-C170 GKT
- Factory colour
Green
- Forward voltage U(F)
2.1 V
- Forward current I(F)
10 mA
- Type
SMD
- Type
2012
- Light intensity I(V)
6 mcd
- Wavelength
569 nm
- Radiation angle
130°
- Type
Clear
- Dim
(L x W x H) 2 x 1.25 x 1.1 mm
- Length
2 mm
- Technology
GaP
- Width
1.25 mm
- Min. temperature
-55 °C
- Height
1.1 mm
- Max. temperature
+85 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127358 Lite-On LTST-C170GKT SMD LED 2012 Green 6 mcd 130 ° 10 mA 2.1 V
User & Safety Instructions
User & Safety Instructions 1127358 Lite-On LTST-C170GKT SMD LED 2012 Green 6 mcd 130 ° 10 mA 2.1 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
