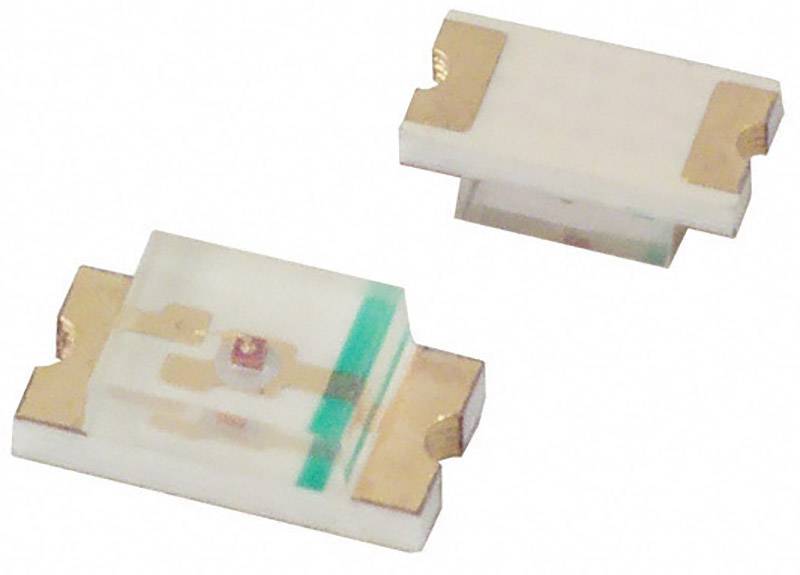

Lite-On LTST-C150GKT SMD LED 3216 Green 6 mcd 130 ° 10 mA 2.1 V
EAN:
Part number:
Item no:
Product type
SMD LED
Forward voltage U(F)
2.1 V
Forward current I(F)
10 mA
Type
SMD
Type
3216
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
100
-
€ 0.08
300
12% = € 0.01
€ 0.07
500
25% = € 0.02
€ 0.06
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 100
Multiple: 100
Total (€ 0.08 / piece)
€ 8.00
plus VAT.
Technical specifications
- Product type
SMD LED
- Type
LTST-C150 GKT
- Factory colour
Green
- Forward voltage U(F)
2.1 V
- Forward current I(F)
10 mA
- Type
SMD
- Type
3216
- Light intensity I(V)
6 mcd
- Wavelength
569 nm
- Radiation angle
130°
- Type
Clear
- Dim
(L x W x H) 3.2 x 1.6 x 1.1 mm
- Length
3.2 mm
- Technology
GaP
- Width
1.6 mm
- Min. temperature
-55 °C
- Height
1.1 mm
- Max. temperature
+85 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127350 Lite-On LTST-C150GKT SMD LED 3216 Green 6 mcd 130 ° 10 mA 2.1 V
User & Safety Instructions
User & Safety Instructions 1127350 Lite-On LTST-C150GKT SMD LED 3216 Green 6 mcd 130 ° 10 mA 2.1 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
