Name: LogiLink EVC0122 eMobility charging cable 7.5 m incl. protective cap
Brand: LogiLink
SKU: 2888096
Availability: BackOrder

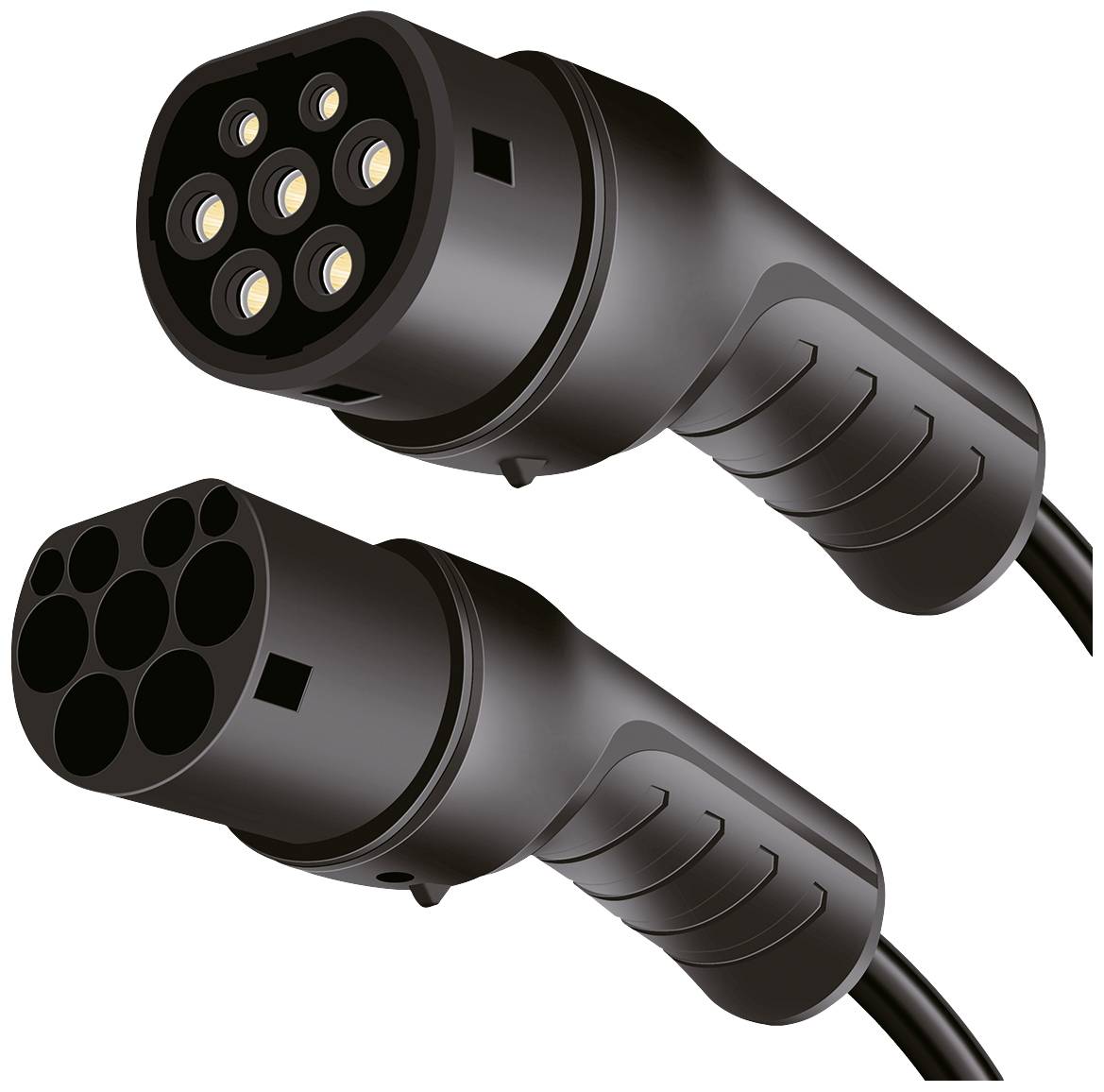

Two black charging plugs for electric vehicles, one shown from above and one from below, with six round connectors at the ends.

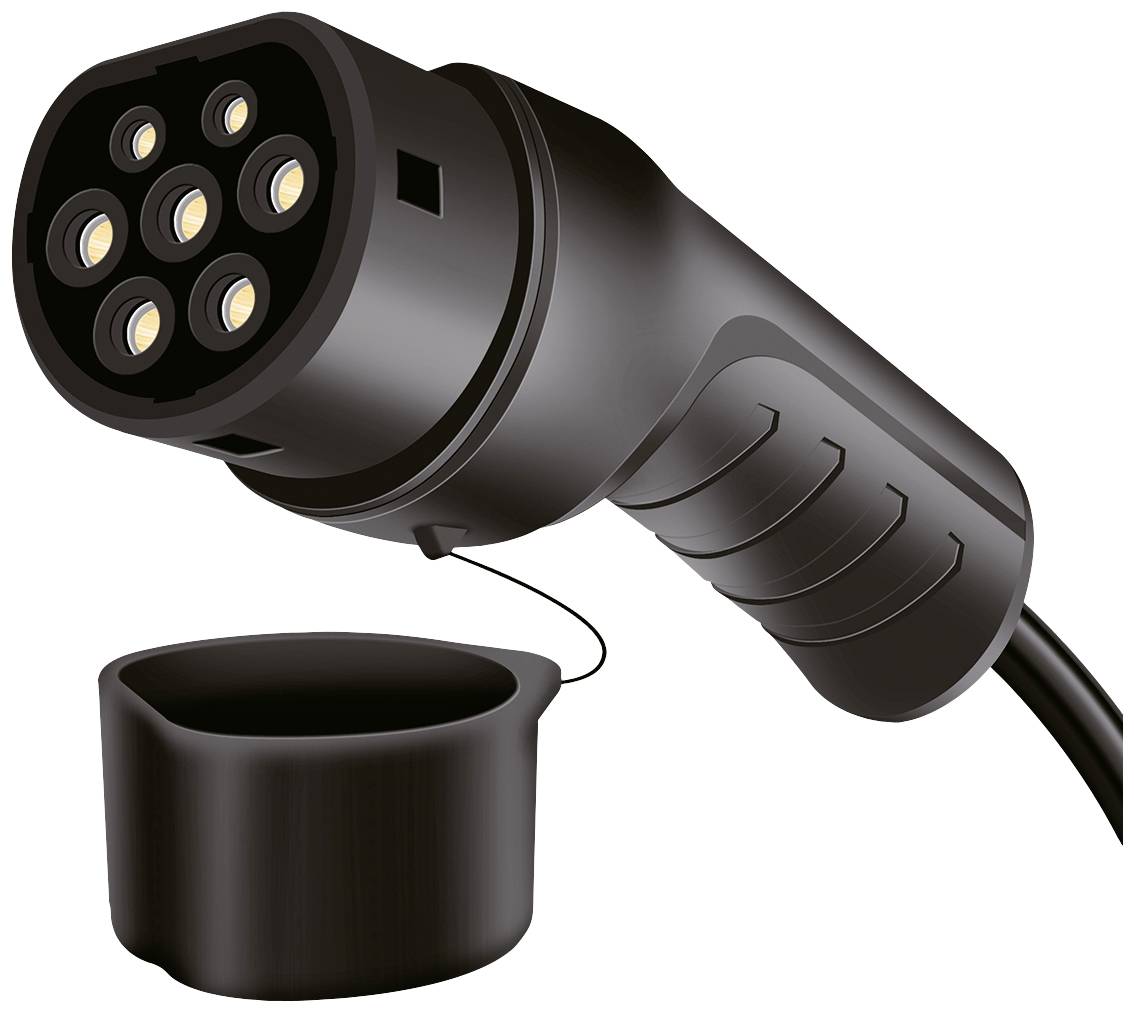

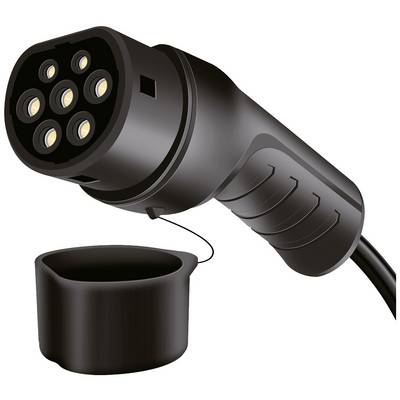

Plug of an electric vehicle with five round connectors, connected with a rubber cap for protection, against a neutral background.

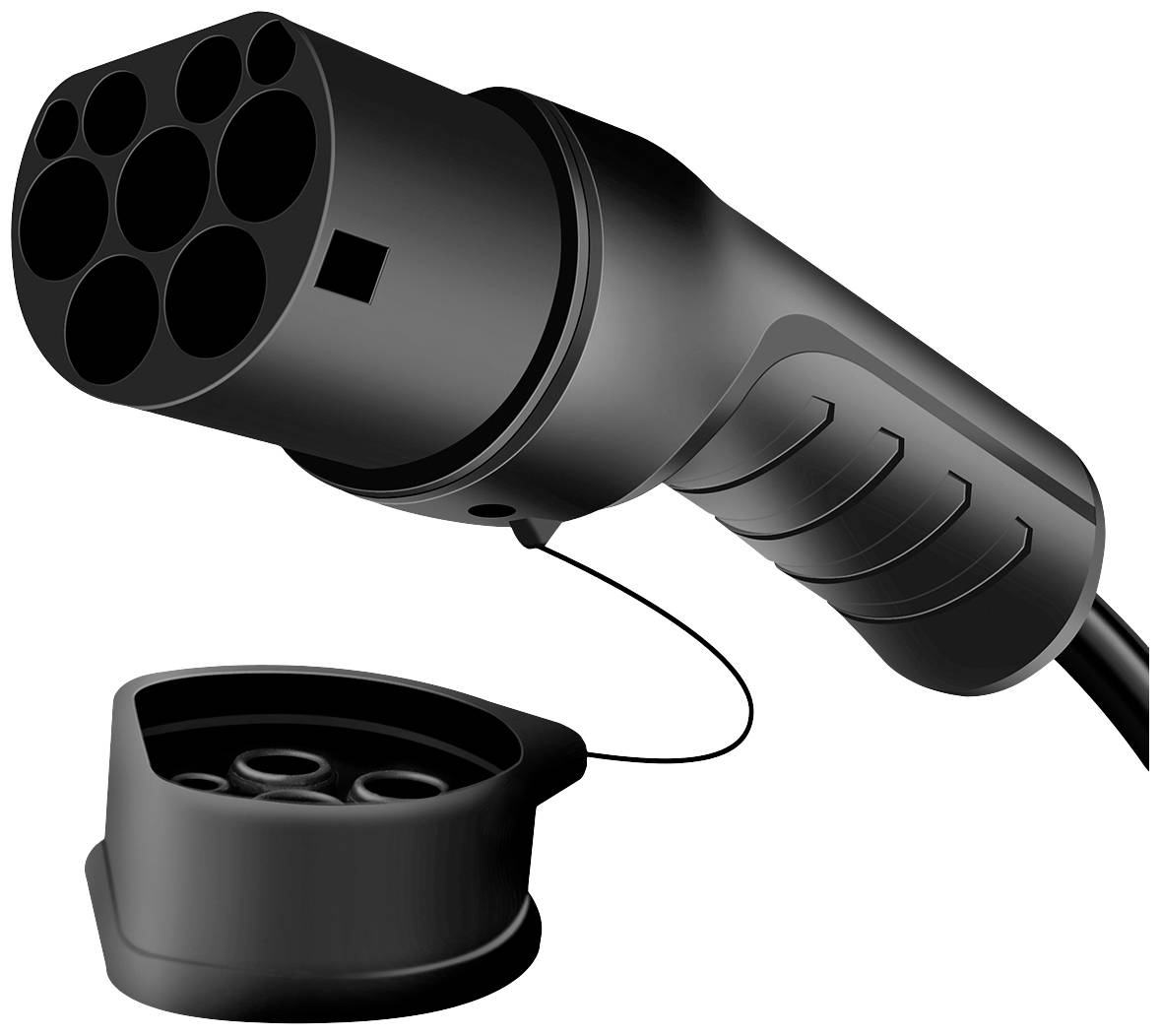

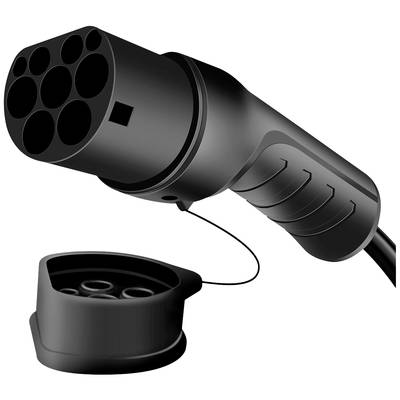

A black electric vehicle charging plug with a removable protective cover. The plug has multiple connectors for charging.

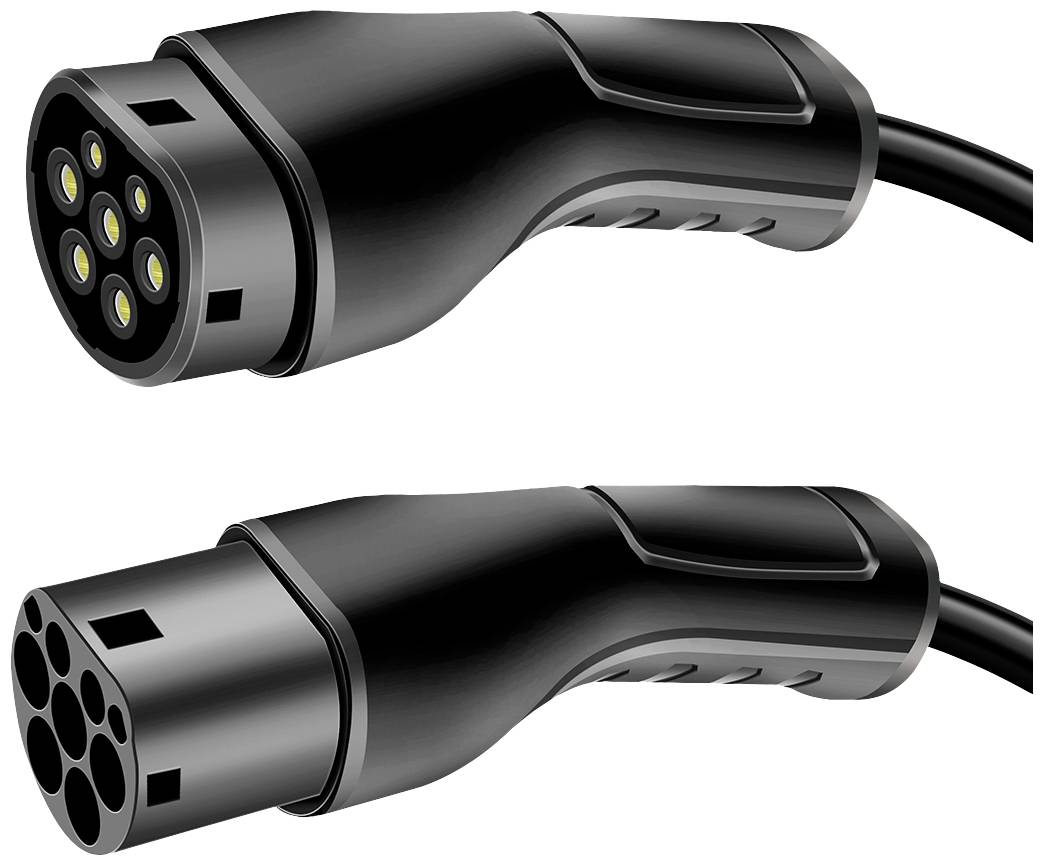

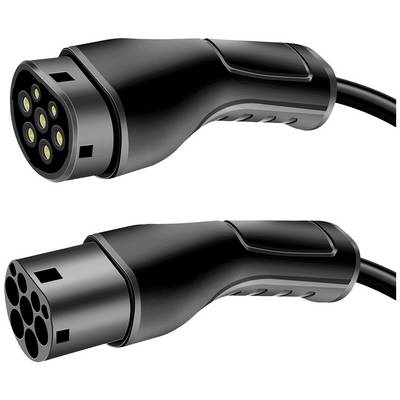

'Two views of a black electric vehicle charging connector with multiple ports. Top view showing the socket, bottom view showing the plug.'

Wired camera in a black housing, shown from the side, with a textured grip and rounded lens.

Black cylindrical reversing camera with cable, suitable for vehicle mounting, commonly used in security applications.

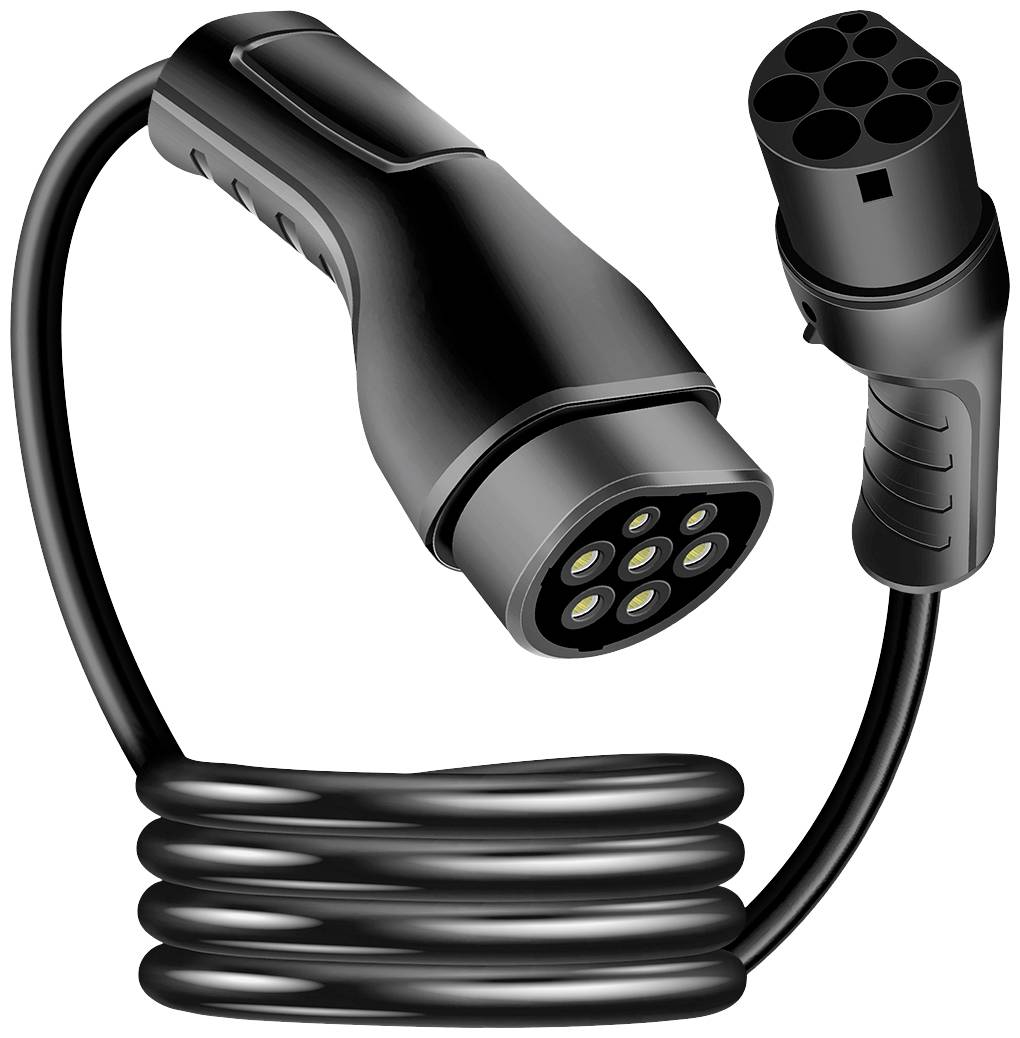

A black charging cable for electric vehicles with multiple plugs and a coiled design is shown.

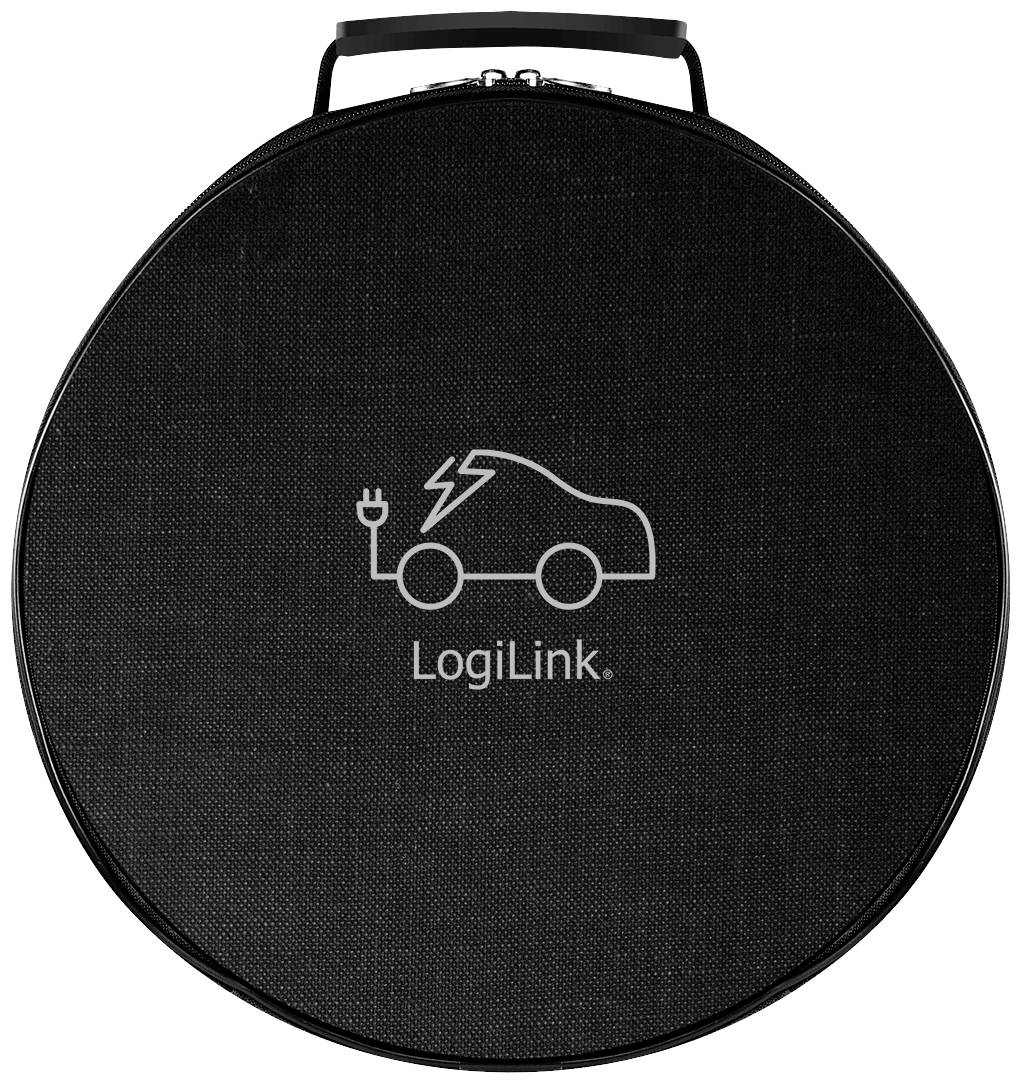

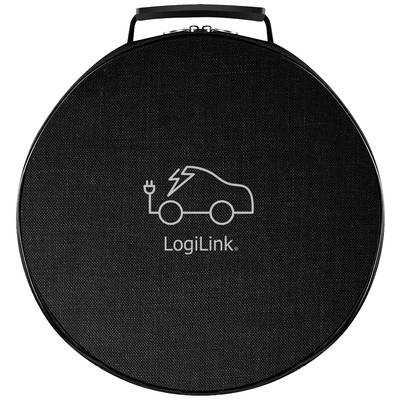

Round black bag with a white electric car symbol and the text 'LogiLink'. Likely used for storage purposes.

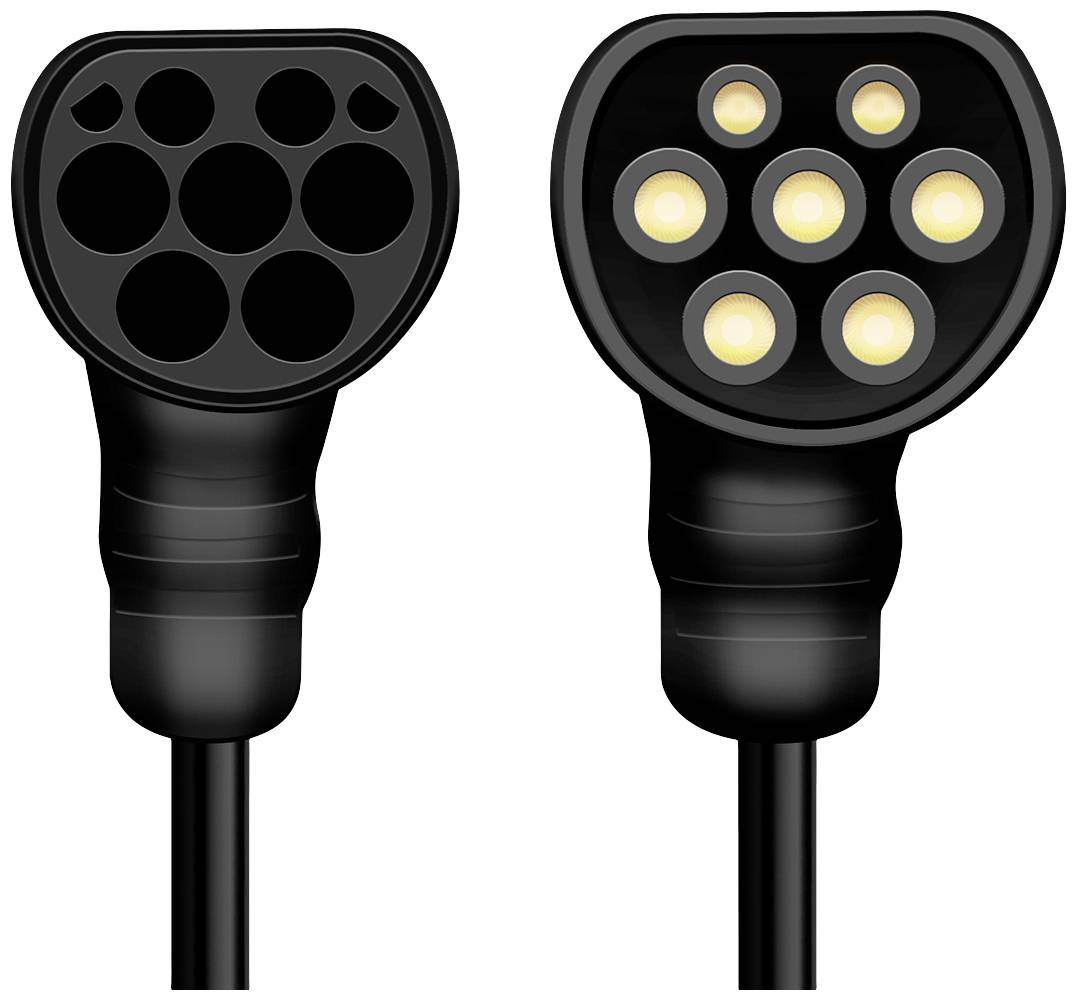

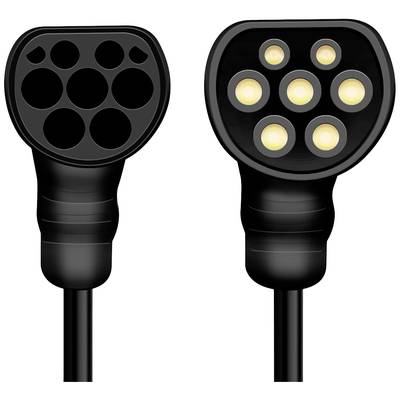

Two electric vehicle charging plugs in close-up. On the left without contacts, on the right with illuminated contacts.

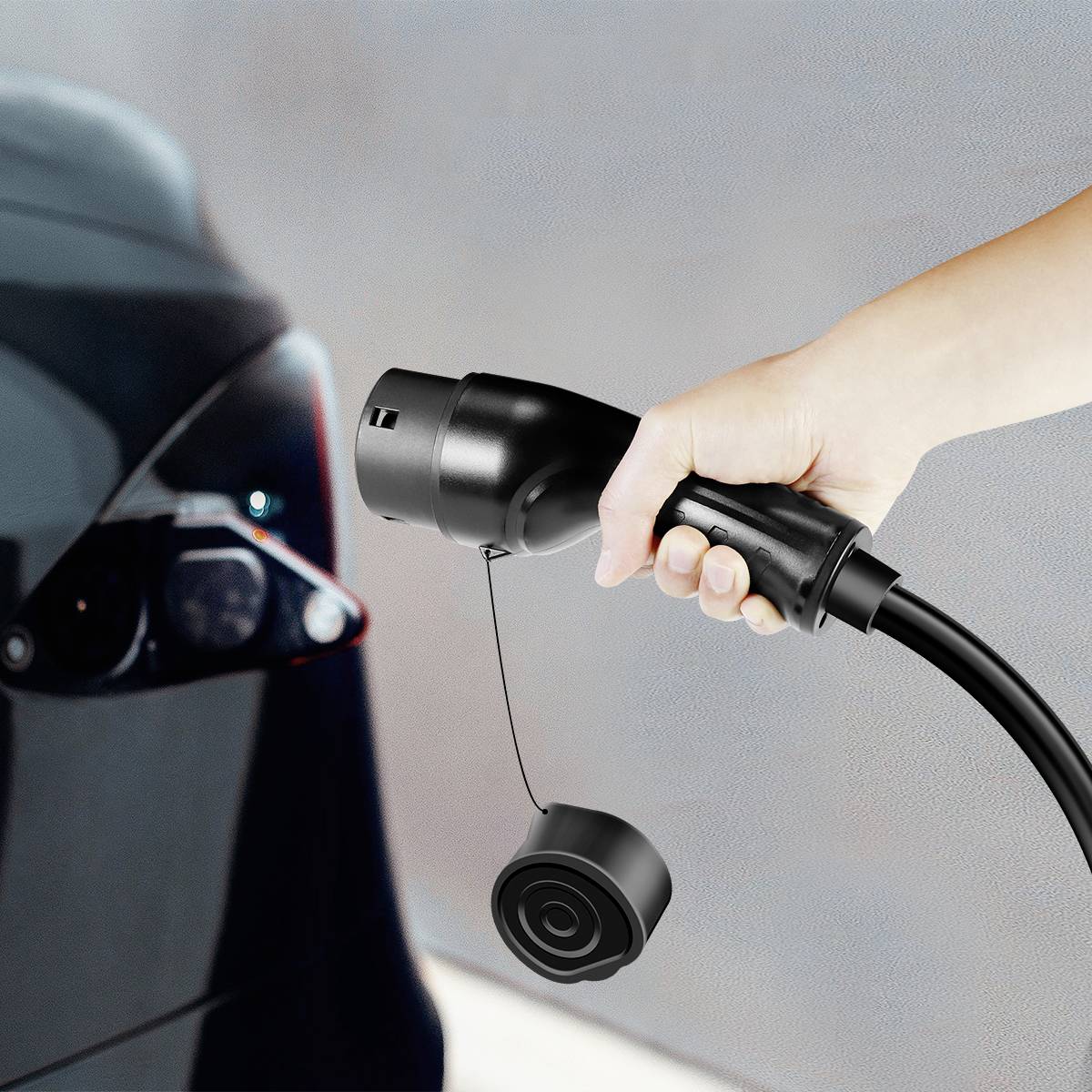

A hand is holding a charging cable, ready to be connected to an electric vehicle.

1/10

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 9 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 184.99 / piece)

€ 184.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

E-Car charging cable, type 2, 3-phase, 32 A, 22 kW, With case, 7.5 m

Connection 1: Type 2 charging plug (plug)
Connection 2: Type 2 charging plug (socket)
Suitable for Tesla, Audi, Mercedes-Benz, BMW, VW, Porsche, Renault, Citroen, Peugeot, Ford, Opel, Chrysler, General Motors and more
Charging mode according to Mode 3 (IEC 61851)
Plug device according to IEC 62196-2

Technical specifications

Cable type H07BQ 5x6 mm² + 0.5 mm²
Cable / wiring standard EN 50620:2017/A1:2019
Charging power up to 22 kW, 3-phase
Working temperature: -30 °C to +50 °C
Colour, black

Product type: eMobility charging cable

Type A: Type 2 (IEC 62196-2) socket

Type B: Type 2 (IEC 62196-2) plug

No. of phases: 3-phase

Charging mode: Mode 3

Cable length: 7.5 m

Cable features: incl. protective cap

Nominal voltage: 480 V

: IP65
IP54

Signal flow direction: Bidirectional (bi)

Min. temperature: -30 °C

Max. temperature: 50 °C

Charging capacity: 22 kW

Charging current: 32 A

Factory colour: Multicolour

Wireless charging: No

Weight: 0

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2888096 LogiLink EVC0122 eMobility charging cable 7.5 m incl. protective cap

User & Safety Instructions

User & Safety Instructions 2888096 LogiLink EVC0122 eMobility charging cable 7.5 m incl. protective cap

Description

This LogiLink certified Type-2 charging cable makes it easy to connect all vehicles with a Type-2 plug to public charging stations or to wall boxes with a charger socket. Robust quality, tested safety and a carry bag provide for a long-lasting use and protection against dust and dirt. Suitable for battery-electric vehicles (BEV) and plug-in hybrids (PHEV) from Tesla, Audi, Mercedes-Benz, BMW, VW, Porsche, Renault, Citroen, Peugeot, Ford, Opel, Chrysler, General Motors and others that have a CCS or Type 2 charging port.

This text is machine translated.

Features

32 A charging current at a nominal voltage of 480 V AC (Max. Testing voltage 42 A
Housing protection IP65 - plugged in, IP54 - not plugged in
Overrun protection
Plastic housing
Packaging: Brown box.

Scope of delivery

Incl. carrying bag.

Description

Features

32 A charging current at a nominal voltage of 480 V AC (Max. Testing voltage 42 A
Housing protection IP65 - plugged in, IP54 - not plugged in
Overrun protection
Plastic housing
Packaging: Brown box.
