Name: Lumitronix LED array (L x W x H) 22 x 10 x 4.63 mm
Brand: Lumitronix
SKU: 1693065
Availability: InStock

Two silver fuses with positive and negative markings, lying horizontally side by side on a white surface.

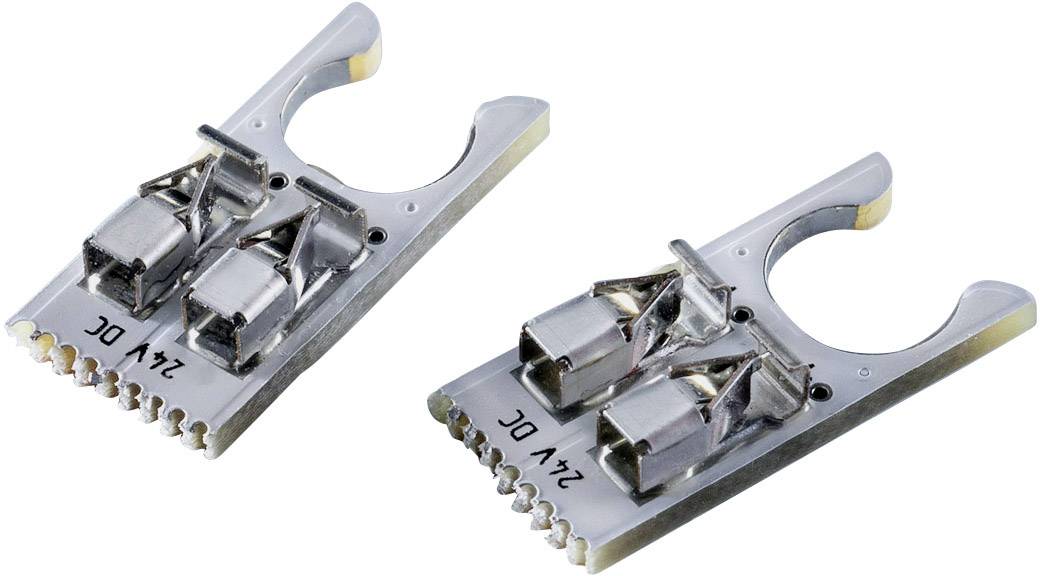

Two silver electrical components on a white background, suitable for applications with 2 volts direct current.

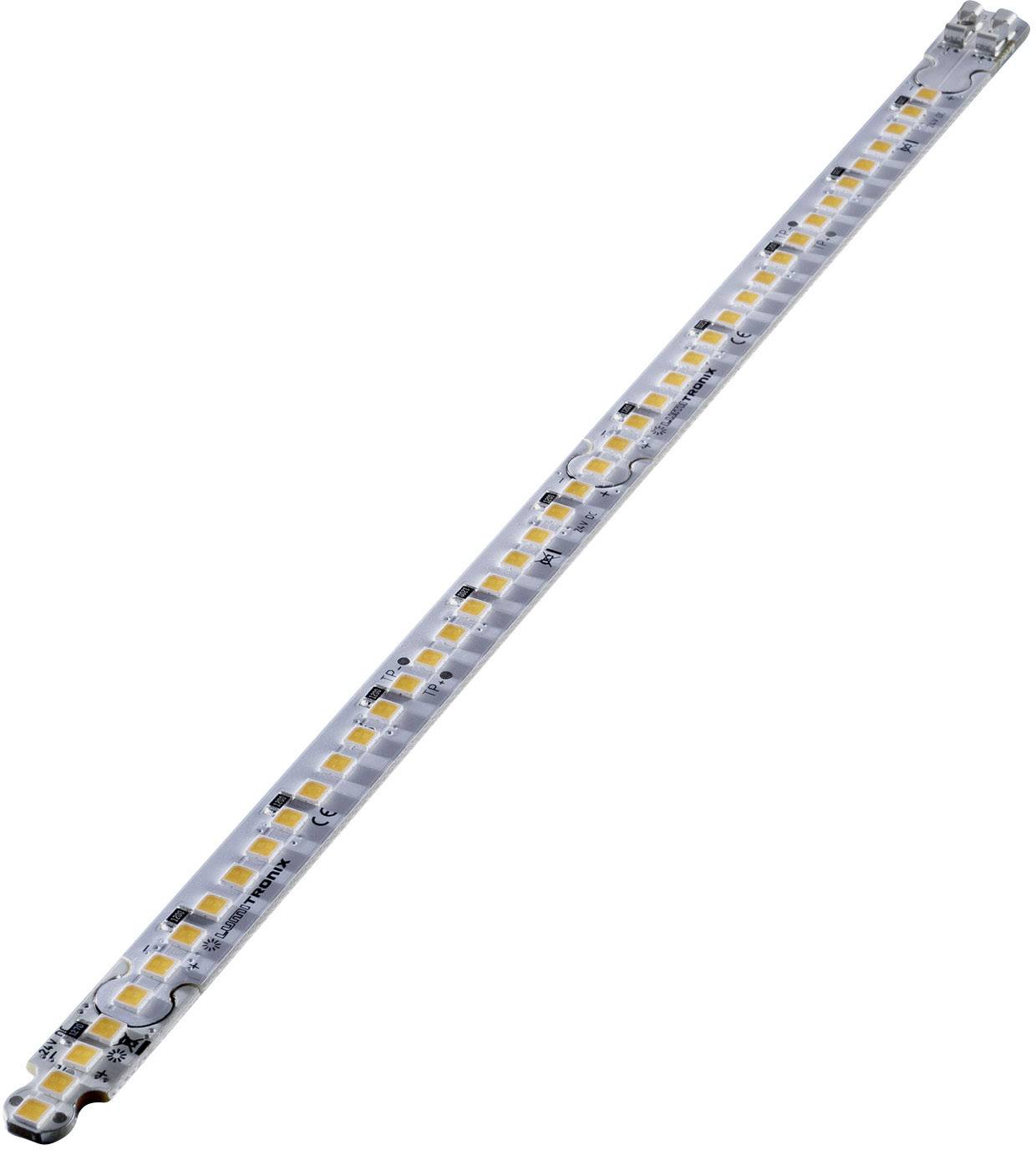

A long LED strip with a row of yellow and white diodes on a narrow circuit board, used for lighting purposes.

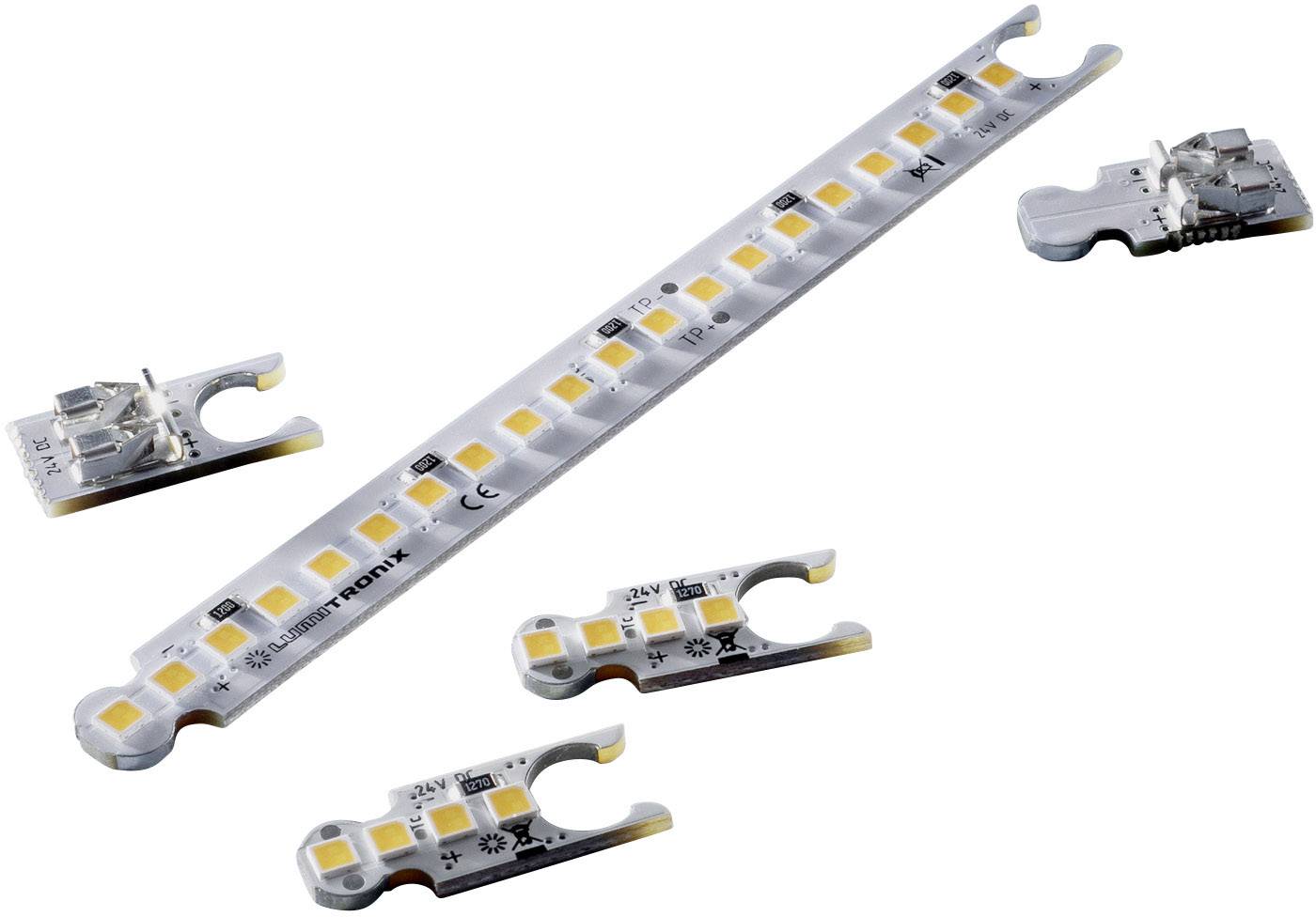

LED strip with small, separate units, suitable for use in lighting systems.

Sketch of five modular building designs in different configurations. The modules demonstrate flexible urban architectural concepts.

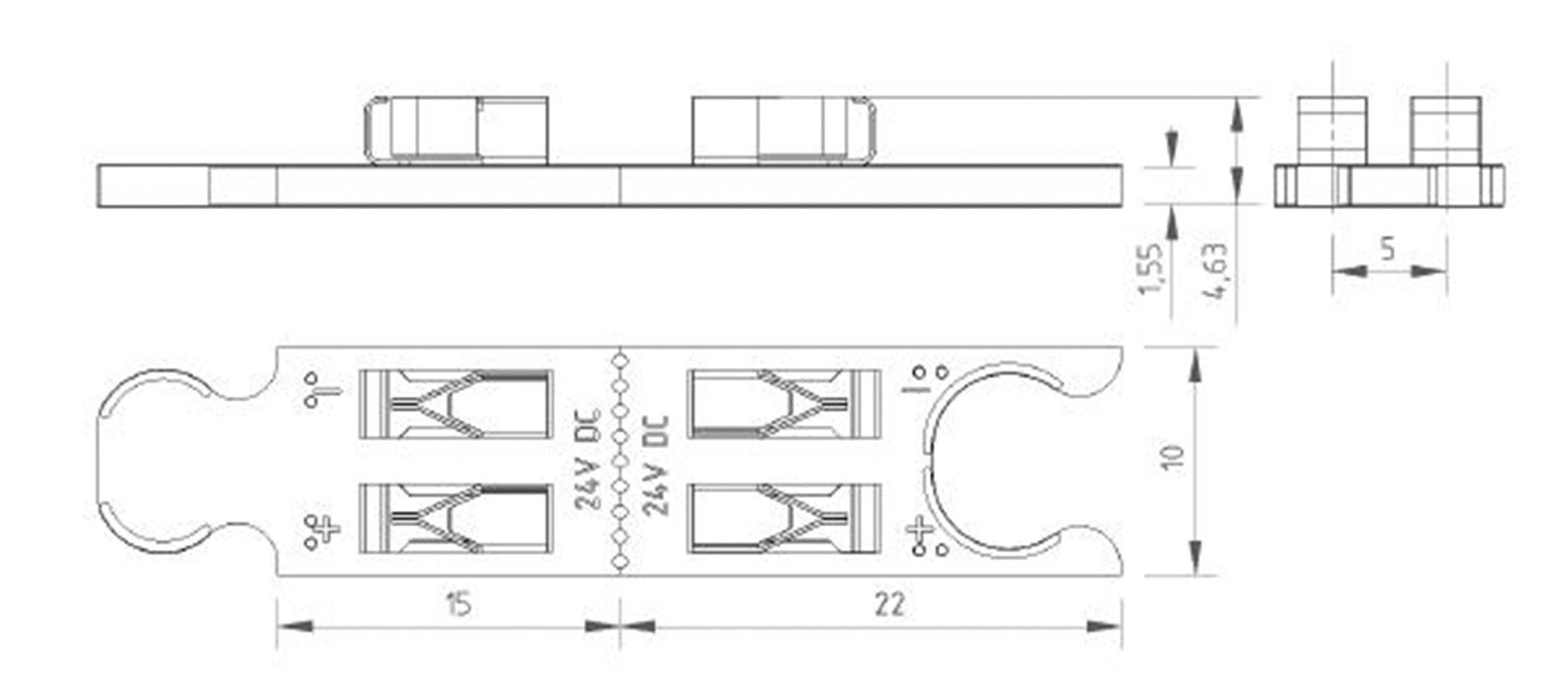

Technical drawing of an electronic component with dimensions. Shows top and side views. Dimensions are given in mm.

1/6

Image similar

Product type

LED array

Colour temperature

2700 K

Dim

(L x W x H) 22 x 10 x 4.63 mm

Forward voltage U(F)

48 V

Forward current I(F)

5000 mA

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

79 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.29 / piece)

€ 4.29

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ConextBar feeder

Dimmable

Technical specifications

Life> 60000 h

Product type: LED array

Colour temperature: 2700 K

Dim: (L x W x H) 22 x 10 x 4.63 mm

Forward voltage U(F): 48 V

Forward current I(F): 5000 mA

Width: 10 mm

Height: 4.63 mm

Length: 22 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1693065 Lumitronix LED array (L x W x H) 22 x 10 x 4.63 mm

Information

Information 1693065 Lumitronix LED array (L x W x H) 22 x 10 x 4.63 mm

Description

LUMITRONIX ® with the new patented conext connection system a real innovation for the connection of LED modules. Thanks to the puzzle form the module can be easily without connector, disconnect and connect together again in a new form. The new conext-system takes place in three new LUMITRONIX® products application. The ConextMatrix LED modules are available in five different forms, which opens up many possibilities for free light fields and a wide range of applications. ConextPlay is for backlighting, model making, or just the playful learning and experimentation has been developed.
With the new ConextBar LED modules, there is now the possibility LED-strips without changing the LED distance only through cooperation or VU meter connect with each other to expand or short.
ConextBar:
Thanks to the patented connection system can easily with the ConextBar width 10 mm LED strips in a wide range of module lengths. The short ConextBar 4 LED modules extend the strips to
20.7 mm, and the long ConextBar20 LED module by 104 mm and thus create a lot of flexibility. The power is supplied by the infeed module. There can be up to 50 ConextBar20 LED modules or 250 ConextBar 4 LED modules via a feed module can be operated at the same time. The modules are equipped with warm white LEDs of the nichia -757 Series and convince apart from a good efficiency with a CRIWert of over 90.

This text is machine translated.
