Name: Lumitronix LED array Warm white (L x W x H) 20.70 x 10 x 2.33 mm
Brand: Lumitronix
SKU: 1693064
Availability: InStock

Two LED light strip modules, each with four yellow light-emitting diodes on a silver printed circuit board.

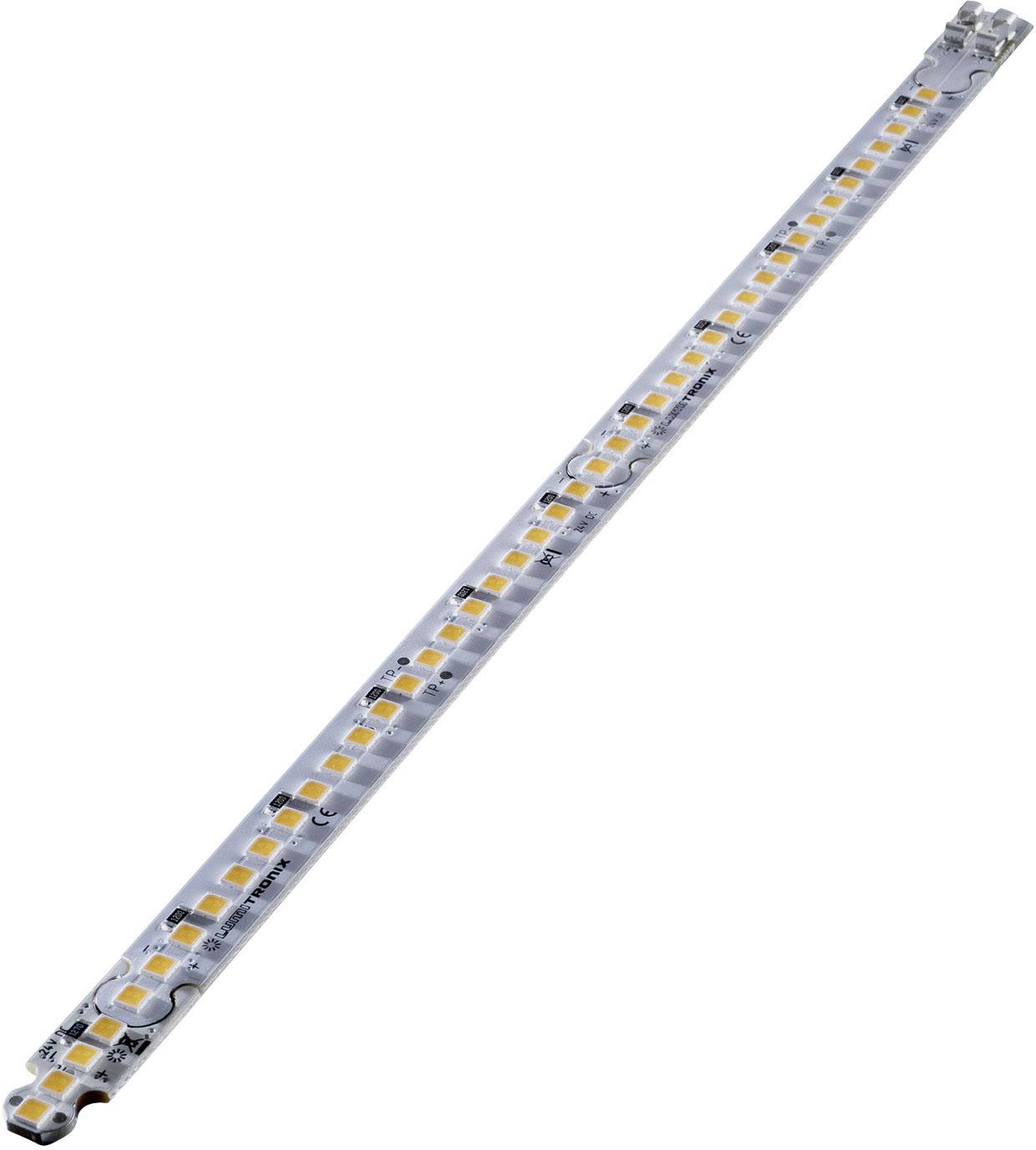

LED strips with numerous small, evenly distributed light sources.

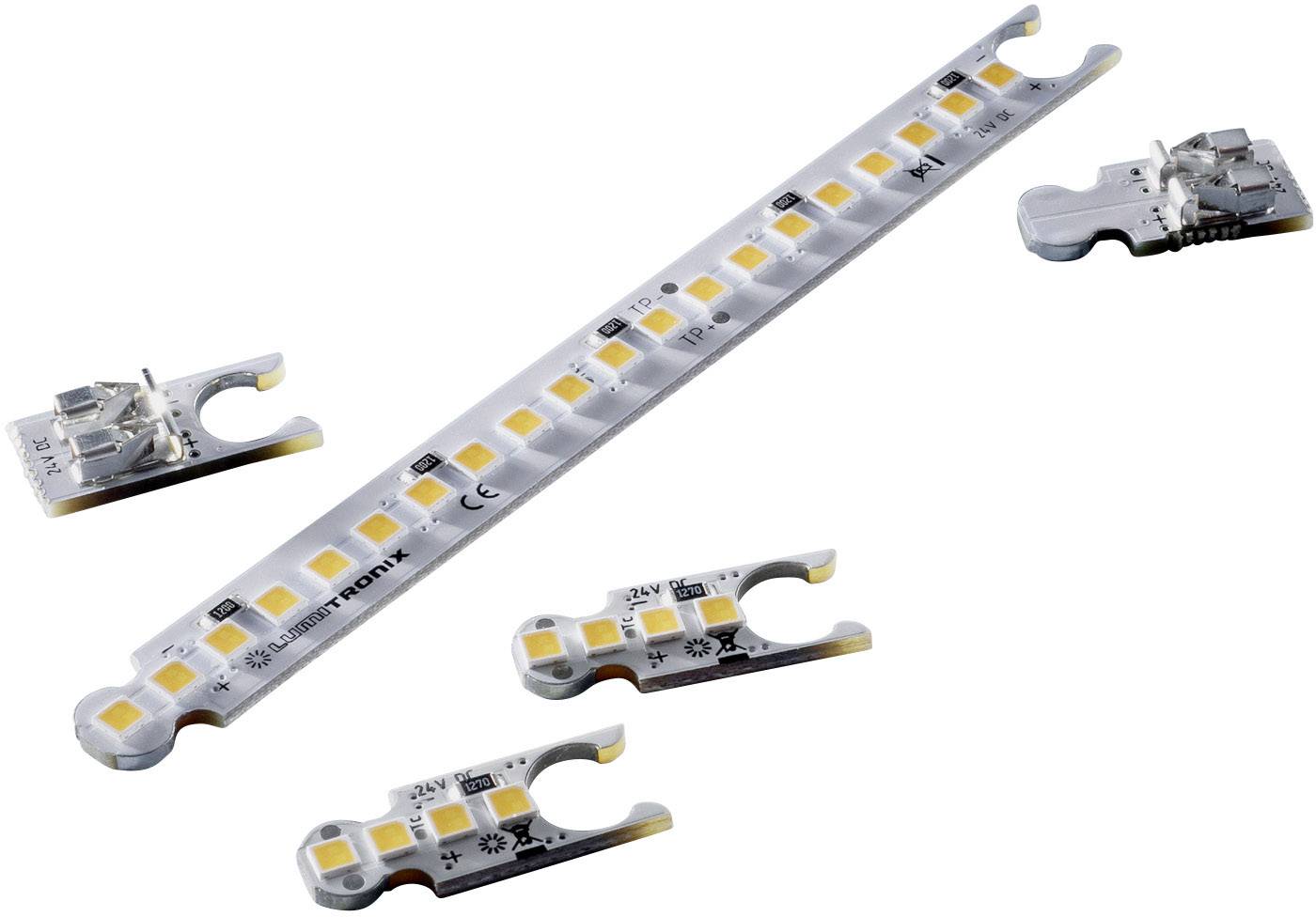

A LED strip and several LED modules are lying on a white background. The strip displays yellow light elements and technical symbols.

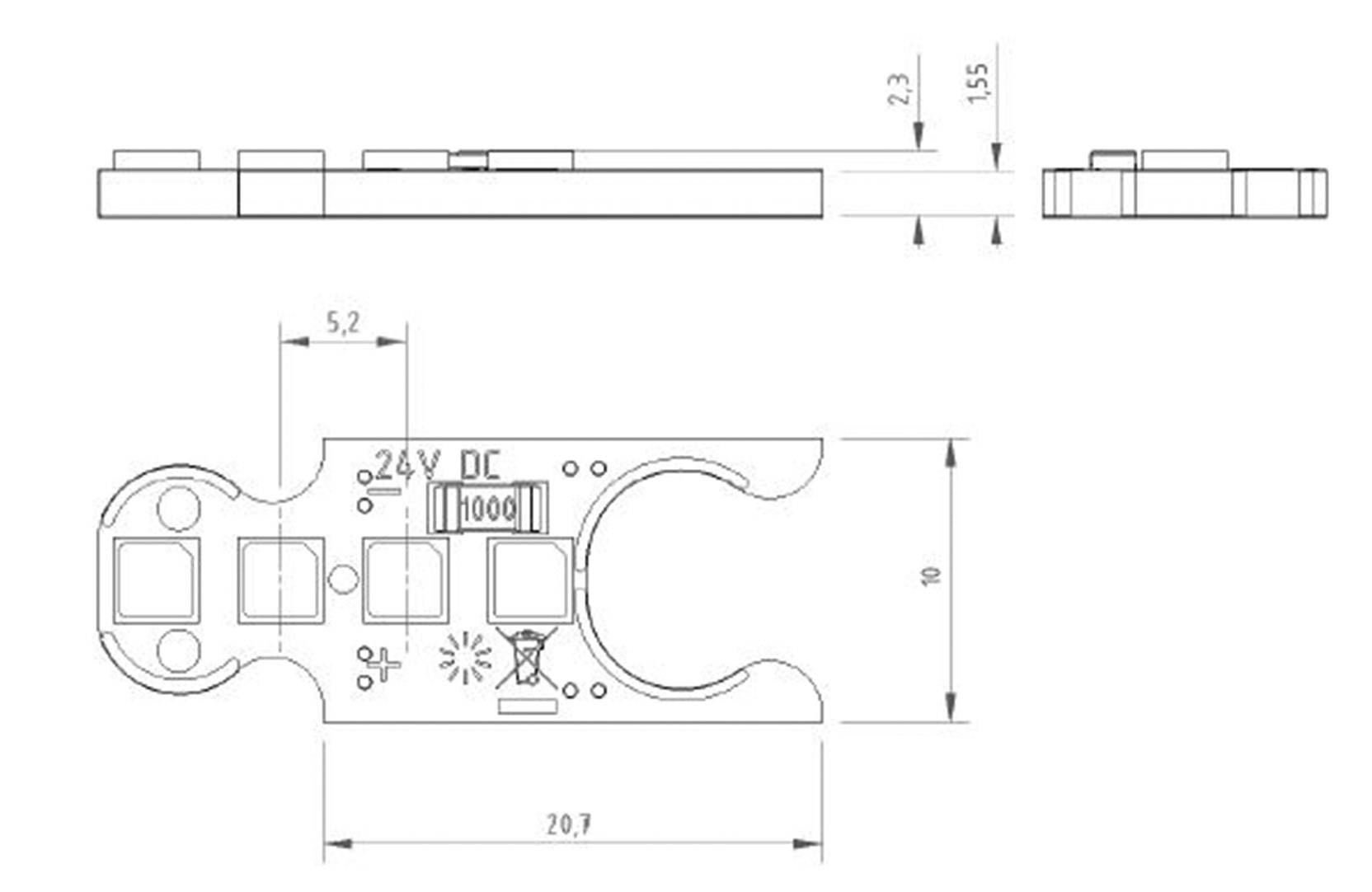

Technical drawing with dimensions of an electronic component. Top view from the side; bottom view from above. Dimensions given in mm.

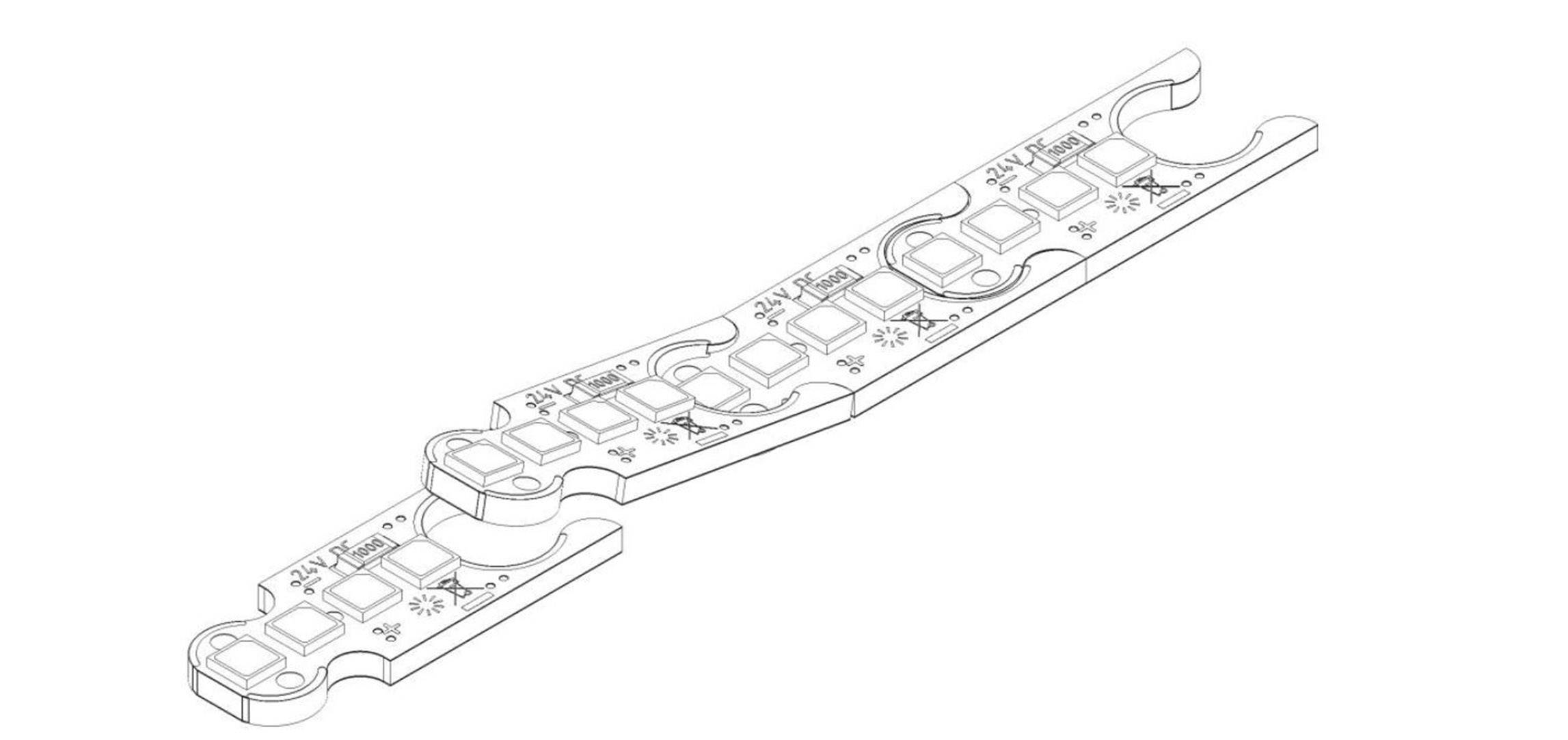

Technical drawing of an electronic component with multiple small components and connections on a curved circuit board.

1/5

Image similar

Product type

LED array

Factory colour

Warm white

Colour temperature

2700 K

Dim

(L x W x H) 20.70 x 10 x 2.33 mm

LEDs

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Mon 2 Nov

77 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.49 / piece)

€ 2.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ConextBar 4

Dimmable

Technical specifications

Life> 60000 h

Factory colour: Warm white

Product type: LED array

Colour temperature: 2700 K

Dim: (L x W x H) 20.70 x 10 x 2.33 mm

LEDs: 4

Forward voltage U(F): 24 V

Forward current I(F): 20 mA

Width: 10 mm

Height: 2.33 mm

Length: 20.70 mm

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 1693064 Lumitronix LED array Warm white (L x W x H) 20.70 x 10 x 2.33 mm

User & Safety Instructions

User & Safety Instructions 1693064 Lumitronix LED array Warm white (L x W x H) 20.70 x 10 x 2.33 mm

Information

Information 1693064 Lumitronix LED array Warm white (L x W x H) 20.70 x 10 x 2.33 mm

Description

LUMITRONIX ® with the new patented conext connection system a real innovation for the connection of LED modules. Thanks to the puzzle form the module can be easily without connector, disconnect and connect together again in a new form. The new conext-system takes place in three new LUMITRONIX® products application. The ConextMatrix LED modules are available in five different forms, which opens up many possibilities for free light fields and a wide range of applications. ConextPlay is for backlighting, model making, or just the playful learning and experimentation has been developed.
With the new ConextBar LED modules, there is now the possibility LED-strips without changing the LED distance only through cooperation or VU meter connect with each other to expand or short.
ConextBar:
Thanks to the patented connection system can easily with the ConextBar width 10 mm LED strips in a wide range of module lengths. The short ConextBar 4 LED modules extend the strips to
20.7 mm, and the long ConextBar20 LED module by 104 mm and thus create a lot of flexibility. The power is supplied by the infeed module. There can be up to 50 ConextBar20 LED modules or 250 ConextBar 4 LED modules via a feed module can be operated at the same time. The modules are equipped with warm white LEDs of the nichia -757 Series and convince apart from a good efficiency with a CRIWert of over 90.

This text is machine translated.
