Maico Ventilatoren EN 31 Wall and ceiling fan 230 V 1500 m³/h 31.5 cm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 494.96 / piece)
€ 494.96
plus VAT.
Only 1 Piece(s) available
Highlights & Details

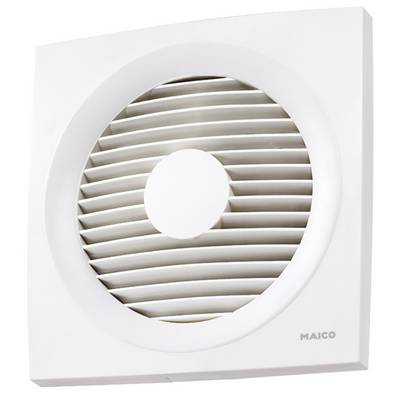

Wall and Ceiling Fan EN 31
- For pipe Ø up to 31.5 cm
Technical specifications
- Product type
Wall and ceiling fan
- Nominal voltage
230 V
76 W
- Rotational speed
1220 U/min
- Air flow rate
1500 m³/h
- Suitable for pipe Ø
31.5 cm
- Noise emission (max.)
57 dB
IP44
- Factory colour
White
- Material
Plastic
- Dim
(W x H) 44.5 cm x 44.5 cm
- Weight
4.6 kg
- Width
44.5 cm
- Height
44.5 cm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 469717 Maico Ventilatoren EN 31 Wall and ceiling fan 230 V 1500 m³/h 31.5 cm
User & Safety Instructions
User & Safety Instructions 469717 Maico Ventilatoren EN 31 Wall and ceiling fan 230 V 1500 m³/h 31.5 cm
Information
Information 469717 Maico Ventilatoren EN 31 Wall and ceiling fan 230 V 1500 m³/h 31.5 cm
Description
Housing without tool for cleaning easily removable. Pleasantly quiet. Dirt free and fast exchange of existing EN and ET-devices, since 100 processor compatible with the predecessor devices EN and ET. When there is an electric flaps with plug connection: Plug separating and the individual wires according to diagram EN new clamping. Fan maintenance-free. Engine: thermal overload protection as standard. Robust Motor. Suitable for continuous operation. Electrical connection: electrical "", if the touch protection of impeller according to DIN EN 294.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Wall and Ceiling Fans
- User manual.
