Buy Marquardt 1115.4101 1115.4101 Pushbutton 250 V AC 6 A 1 x Off/(On) momentary (L x W x H) 30 x 13 x 23.2 mm IP40 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

Black toggle switch with two switching positions, numbered '3' and '4', mounted on a black rectangular base.

Black toggle switch with two switching positions, numbered '3' and '4', mounted on a black rectangular base.

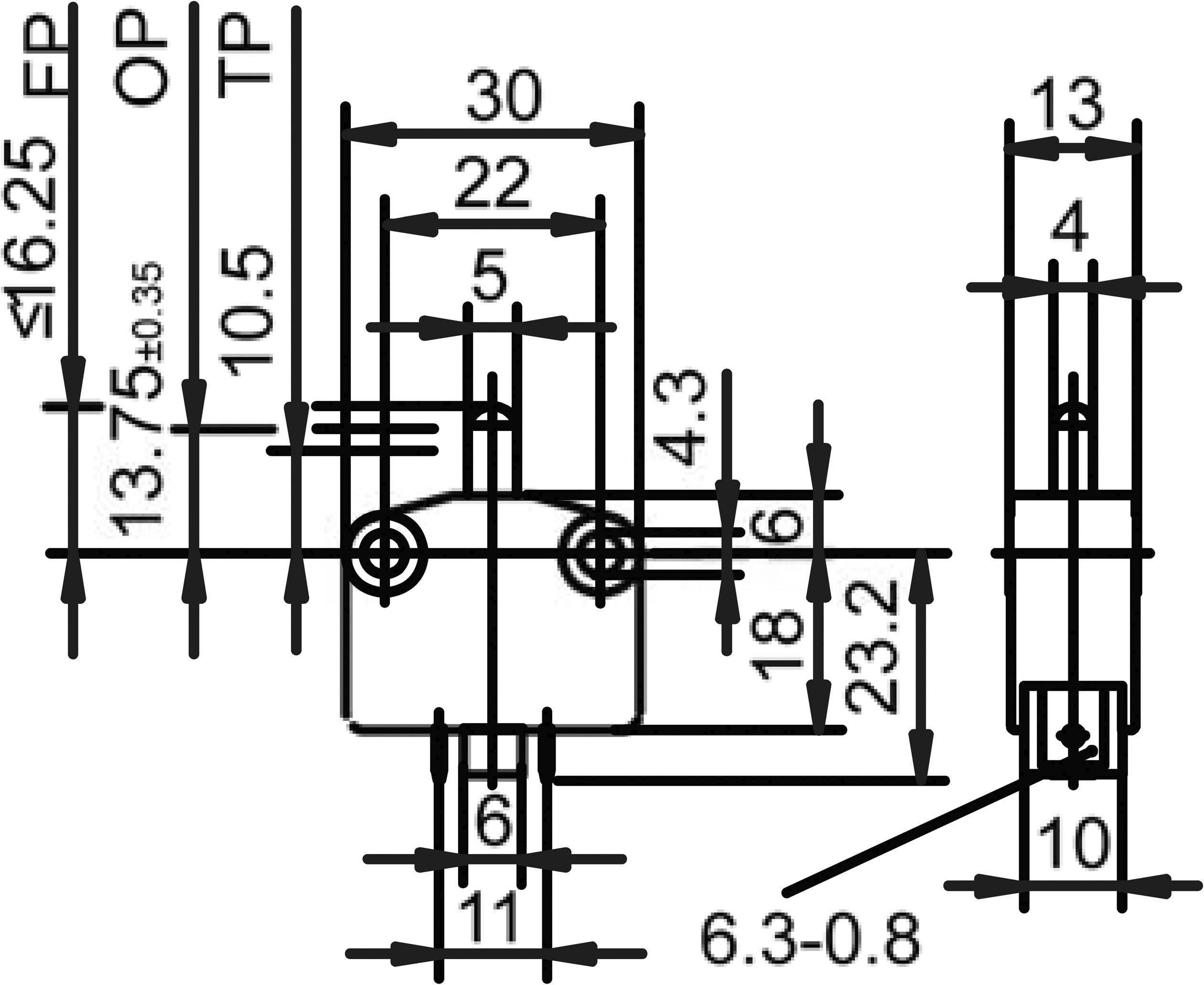

Technical drawing of a mechanical component, showing dimensions in millimetres. Critical measurements include width, height, and the spacing of mounting holes.

1/2

Image similar

Marquardt

Product type

Pushbutton

Lighting type

None

Switch position

1 x Off/(On)

Contact type

1 maker

Connection

Type C CEE 7/16 plug 6.3 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 5 Nov

81 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 12.10 / piece)

€ 12.10

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Marquardt 1115.4101 1115.4101 Pushbutton 250 V AC 6 A 1 x Off/(On) momentary (L x W x H) 30 x 13 x 23.2 mm IP40 1 pc(s)

Technical specifications

Product type: Pushbutton

Switch/button features: Protruding

Casing/button colour: Black

Functions: momentary

Lighting type: None

Switch position: 1 x Off/(On)

Contact type: 1 maker

Connection: Type C CEE 7/16 plug 6.3 mm

Switching voltage: 250 V AC

Switching current (max.): 6 A

Min. temperature: -40 °C

Max. temperature: +85 °C

Length: 30 mm

Width: 13 mm

Height: 23.2 mm

: IP40

Actuating force: 6 N

Content: 1 pc(s)

Dim: (L x W x H) 30 x 13 x 23.2 mm

Type: 1115.4101

Switching voltage: 400 V AC

Switching current: 16 A

Type: 1115.4101

Actuating force: 6 N

Connection: 6.3 mm flat plug

Temperature range: -40 - +85 °C

Documents & Downloads

Datasheet

Datasheet 702712 Marquardt 1115.4101 1115.4101 Pushbutton 250 V AC 6 A 1 x Off/(On) momentary (L x W x H) 30 x 13 x 23.2 mm IP40 1 pc(s)

User & Safety Instructions

User & Safety Instructions 702712 Marquardt 1115.4101 1115.4101 Pushbutton 250 V AC 6 A 1 x Off/(On) momentary (L x W x H) 30 x 13 x 23.2 mm IP40 1 pc(s)

Information

Information 702712 Marquardt 1115.4101 1115.4101 Pushbutton 250 V AC 6 A 1 x Off/(On) momentary (L x W x H) 30 x 13 x 23.2 mm IP40 1 pc(s)

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
