ElectromechanicsSwitches & ButtonsToggle SwitchesRocker Switches

Marquardt 1832.3602 Flip switch 1832.3602 250 V AC 20 A 2 x Off/On IP40 latch 1 pc(s) Piece

EAN:
Part number:
Item no:

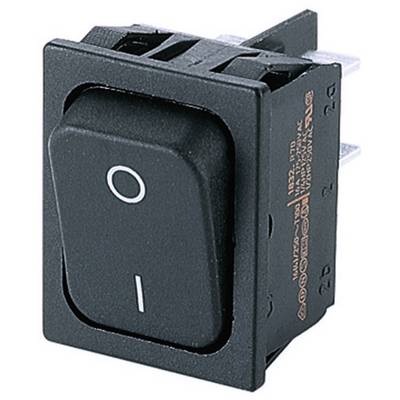

A rectangular rocker switch in the 'off' position. It is black with a white circle at the top and a horizontal line at the bottom.
Packaging type
Piece
Product type
Flip switch
Casing/button colour
Black
Front panel cut-out
30 x 22 mm
Functions
latch
Datasheet (PDF)
Fast track dispatch on Tue 27 Oct
1368 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 5.53 / piece)
€ 5.53
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Approvals ENEC, UL, CSA
Packaging type

Piece

Product type

Flip switch

Casing/button colour

Black

Front panel cut-out

30 x 22 mm

Functions

latch

Lighting type

None

Switch position

2 x Off/On

Print motif

0/I

Contact material

Ag (Silver)

Connection

Type C CEE 7/16 plug 6.3 mm

Switching voltage

250 V AC

Switching current (max.)

20 A

Recess depth

29.5 mm

Front panel thickness

3 mm

IP40

Content

1 pc(s)

Switching current (inductive)

4 A

Type

1832.3602

Switching current

10.8 A

Documents & Downloads

Datasheet

Datasheet 704236 Marquardt 1832.3602 Flip switch 1832.3602 250 V AC 20 A 2 x Off/On IP40 latch 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 704236 Marquardt 1832.3602 Flip switch 1832.3602 250 V AC 20 A 2 x Off/On IP40 latch 1 pc(s) Piece

Certificate

Certificate 704236 Marquardt 1832.3602 Flip switch 1832.3602 250 V AC 20 A 2 x Off/On IP40 latch 1 pc(s) Piece

Description

Tried and tested switching principle with long life and a strong operating characteristics.

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
