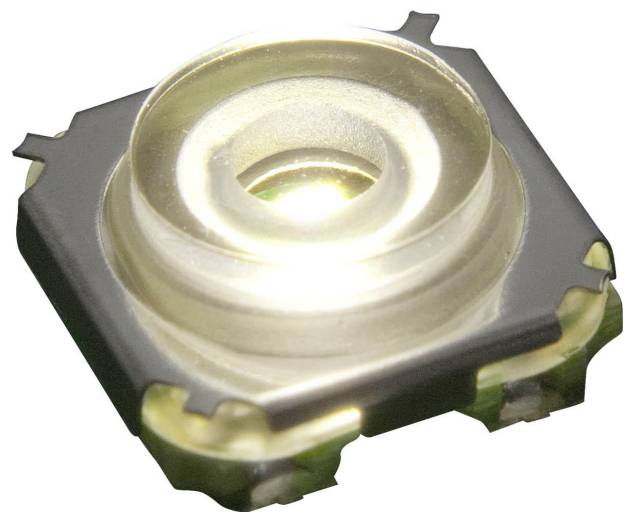

Marquardt 3006.2106 03006.2106-00 Short-travel keys 28 V 50 mA 1 x Off/(On) momentary White (L x W x H) 9.85 x 9.85 x 3.
Product type
Short-travel keys
Lighting type
LED
Area illumination
Switch position
1 x Off/(On)
Contact type
1 maker
Connection
SMD
Datasheet (PDF)
Part number:
Item no:
Number
Total (€ 6.04 / piece)
€ 6.04
incl. VAT
14-day return policy included
Highlights & Details
Short-travel pushbutton (white 4N)
- Low installation height
- Automatic configuration
- Excellent haptics
- Optimum search lighting
- Long life.
- High security and reliability
- Variants
Technical specifications
- Single-pole
- Product type
Short-travel keys
- Switch/button features
+ LED
- Casing/button colour
White
- Functions
momentary
- Lighting type
LED
Area illumination
- Colour
White
- Bulb type
LED (monochrome)
- Key type
3006.2106
- Switch position
1 x Off/(On)
- Print motif
ON/OFF
- Contact type
1 maker
- Contact material
Gold plated
- Connection
SMD
- Switching voltage
28 V
- Max. switching capacity
1 W
- Switching current (max.)
50 mA
- Min. temperature
-40 °C
- Max. temperature
95 °C
- Length
9.85 mm
- Width
9.85 mm
- Height
3.95 mm
- Button diameter
6.8 mm
- Durability
50E4
- Electrical lifespan
14 V DC 10 MA 50E4
IP40
- Actuating force
4 N
- Content
1 pc(s)
- Dim
(L x W x H) 9.85 x 9.85 x 3.95 mm
- Type
03006.2106-00
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3474802 Marquardt 3006.2106 03006.2106-00 Short-travel keys 28 V 50 mA 1 x Off/(On) momentary White (L x W x H) 9.85 x 9.85 x 3.
User & Safety Instructions
User & Safety Instructions 3474802 Marquardt 3006.2106 03006.2106-00 Short-travel keys 28 V 50 mA 1 x Off/(On) momentary White (L x W x H) 9.85 x 9.85 x 3.
Description
For mounting in flat control elements, also with integrated LED
SMD connection technology, reflow solder-free
Pleasant actuating characteristic with clearly noticeable pressure point and large actuation area
Built-in LED provides a central light source
Over 500,000 switching cycles in the 4N version
Switch system proven a million times over
This text is machine translated.
SMD connection technology, reflow solder-free
Pleasant actuating characteristic with clearly noticeable pressure point and large actuation area
Built-in LED provides a central light source
Over 500,000 switching cycles in the 4N version
Switch system proven a million times over
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
