Buy MEAN WELL DPU01L-05 DC/DC converter (module) 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

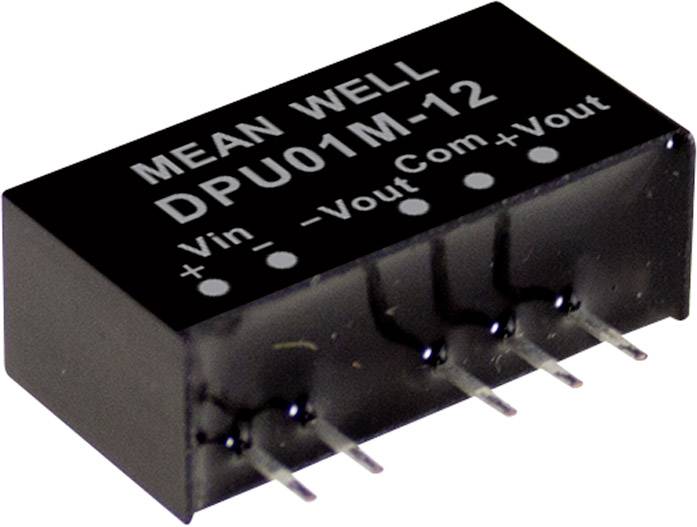

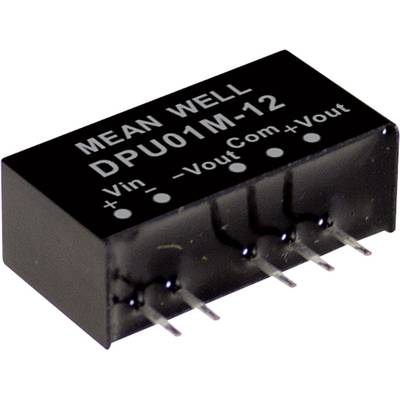

Small rectangular electronic component with the inscription 'MEAN WELL DPU01M-12', pins on the underside.

Datasheet (PDF)

2 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€

Only 2 Piece(s) available

Report legal concerns

Highlights & Details

MEANWELL DC/DC converter modules series DPU01 SIP/SIL 6 Case Dual Output Input voltage ratio: 1:1 Power: 1 W Unregulated

In the SIP/SIL6-casing
For direct PCB mounting
Input/output insulation 1500 V
According to EN 55032 Class A transmitted without additional components
Efficiency up to 83%
Circuit breaker
Low Cost

Technical specifications

Product type: DC/DC converter (module)

Type: DPU01L-05

Min. input voltage: 4.5 V DC

Input voltage (max.): 5.5 V DC

No. of outputs: 2 x

Max. output current: 100 mA

Output current (max.) - rounded: 100 mA

Efficiency (max.): 78 %

: 1 W

Insulation voltage: 1500 V DC

Connection: Pins

PSU features: DC-to-DC converter

Operating temperature (min.): -40 °C

Operating temperature (max.): +90 °C

Dim: (L x W x H) 19.5 x 6.1 x 10.2 mm

Height: 10.2 mm

Length: 19.5 mm

Width: 6.1 mm

Output voltage (max.): 5 V DC
-5 V DC

Weight: 1.8 g

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 2143609 MEAN WELL DPU01L-05 DC/DC converter (module) 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2143609 MEAN WELL DPU01L-05 DC/DC converter (module) 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Warranty Terms

Warranty Terms 2143609 MEAN WELL DPU01L-05 DC/DC converter (module) 100 mA 1 W No. of outputs: 2 x Content 1 pc(s)

Description

With the launch of eight new series of unsettled (SPU 01, DPU01) and regulated DC/DC converters (02, 02, 03, 03, SPBW DPBW SPBW DPAN06 and DPBW06) in the area of up to 10 W now offers mean corrugated a complete range of power supply solutions. These eight series are designed so that a standard SIP Pin assignment. In addition to a wide input range (2:1 and 4:1) and a wide operating temperature range from -40 up to +90 °C, all with 1500 V DC I/O insulation. Suitable applications include IoT, electronics, telecommunications, networking, industrial control and distributed power architecture.

This text is machine translated.
