MEAN WELL SGA60E05-P1J Mains PSU (fixed voltage) 5 V DC 6000 mA 30 W

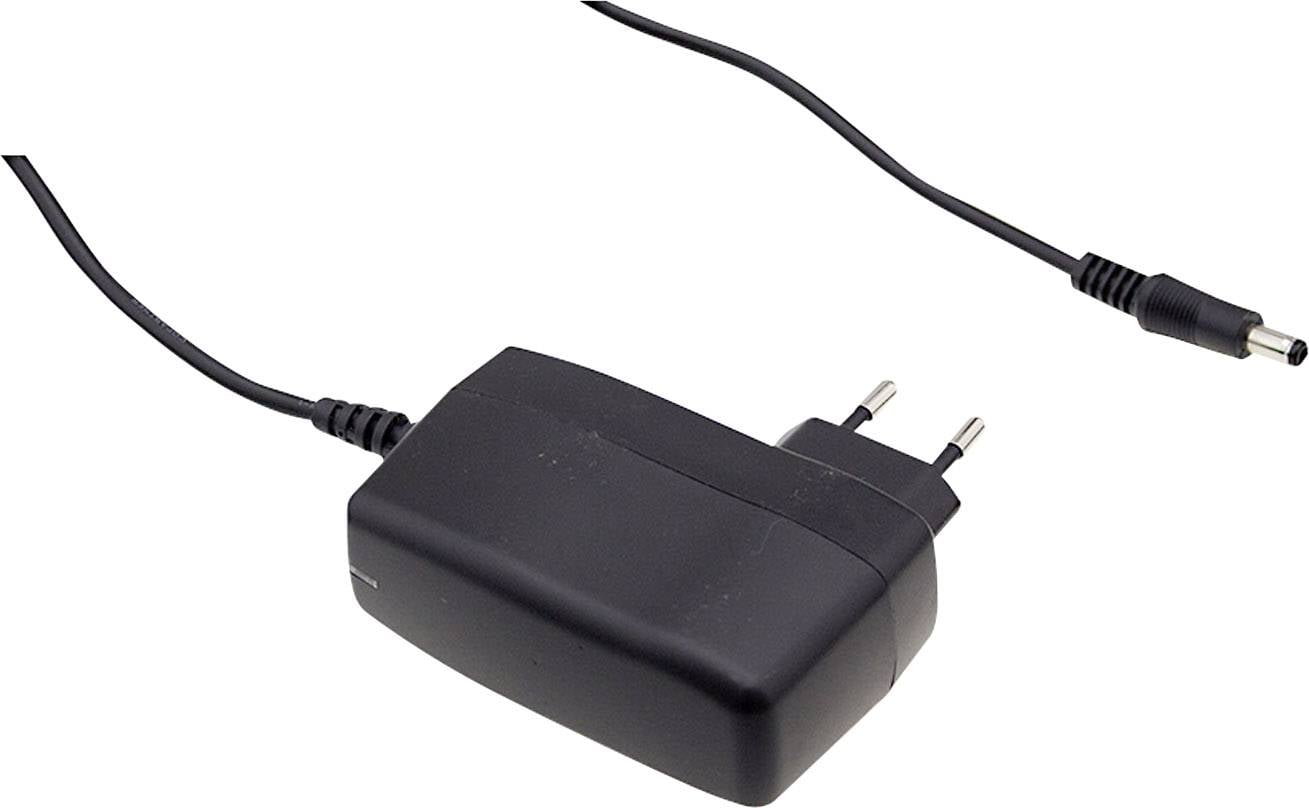

Black power supply with two-pin EU plug and attached cable, suitable for electronic devices.
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 9.99 / piece)
€ 9.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Mains PSU (fixed voltage)

Type

Synchronised

Max. output current

6000 mA

Output voltage

5 V DC

Output current (max.) - rounded

6 A

Output

5.5/2.1 coaxial connector

Input voltage

115 V AC

230 V AC

30 W

Dim

(L x W x H) 90 x 40 x 100 mm

No. of outputs

1 x

No. of inputs

1 x

Input voltage (max.)

264 V AC

Min. input voltage

90 V AC

Weight

250 g

Width

40 mm

Height

100 mm

Length

90 mm

Type

SGA60E05-P1J

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 1439210 MEAN WELL SGA60E05-P1J Mains PSU (fixed voltage) 5 V DC 6000 mA 30 W

User & Safety Instructions

User & Safety Instructions 1439210 MEAN WELL SGA60E05-P1J Mains PSU (fixed voltage) 5 V DC 6000 mA 30 W

Information

Information 1439210 MEAN WELL SGA60E05-P1J Mains PSU (fixed voltage) 5 V DC 6000 mA 30 W

Information 1439210 MEAN WELL SGA60E05-P1J Mains PSU (fixed voltage) 5 V DC 6000 mA 30 W

Warranty Terms

Warranty Terms 1439210 MEAN WELL SGA60E05-P1J Mains PSU (fixed voltage) 5 V DC 6000 mA 30 W

Description

Sleek Universal plug-in switching power supply from series SG40EA with universalplug and europlug, complies with energy efficiency level VI (DOE). It serves as a power supply for applications in consumer electronics, telecommunications, office equipment and industrial applications.

Features

  • Plug-in switching power supply with europlug
  • universal input
  • overload protection, pulsing hiccup shutdown, auto recovery
  • protections: short circuit/over load/over voltage
  • insulation class II
  • low no load power consumption
  • energy efficiency level VI (DOE 2016), except 5V type (level V)
