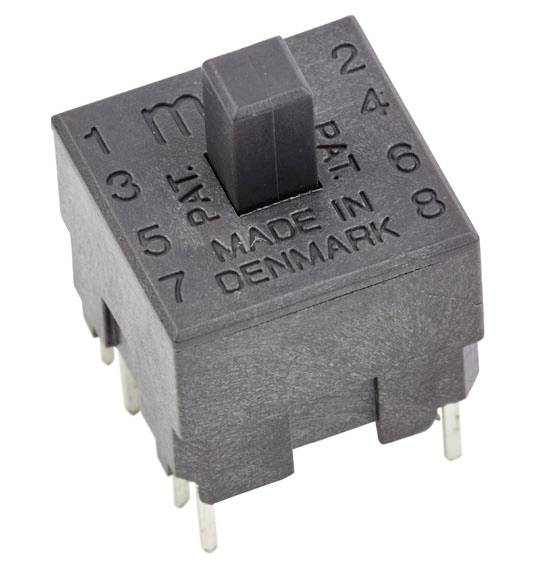

MEC 1540109 Unimec Series Pushbutton 120 V 250 mA momentary (L x W x H) 12.60 x 12.60 x 15.70 mm IP54 1 pc(s)
Product type
Pushbutton
Lighting type
None
Switching voltage
120 V
Switching current (max.)
250 mA
Width
12.60 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 6.04 / piece)
€ 6.04
incl. VAT
14-day return policy included
Highlights & Details
High temperature button, ON - MOM, silver contacts
Our service for you
Technical specifications
- Product type
Pushbutton
- Casing/button colour
Black
- Functions
momentary
- Lighting type
None
- Material
LCP
- Contact resistance
100 mΩ
- Switching voltage
120 V
- Max. switching capacity
9 W
- Switching current (max.)
250 mA
- Min. temperature
-40 °C
- Max. temperature
+160 °C
- Length
12.60 mm
- Width
12.60 mm
- Height
15.70 mm
IP54
- Actuating force
2.5 N
- Content
1 pc(s)
- Insulation resistance
10 mΩ
- Dim
(L x W x H) 12.60 x 12.60 x 15.70 mm
- RoHS-compliant
Yes
- Type
Unimec Series
Documents & Downloads
Datasheet
Datasheet 3305288 MEC 1540109 Unimec Series Pushbutton 120 V 250 mA momentary (L x W x H) 12.60 x 12.60 x 15.70 mm IP54 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3305288 MEC 1540109 Unimec Series Pushbutton 120 V 250 mA momentary (L x W x H) 12.60 x 12.60 x 15.70 mm IP54 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
