MegaSat HD 601 V5 SAT receiver
EAN:
Part number:
Item no:
Number
Total (€ 32.76 / piece)
€ 32.76
plus VAT.
Highlights & Details

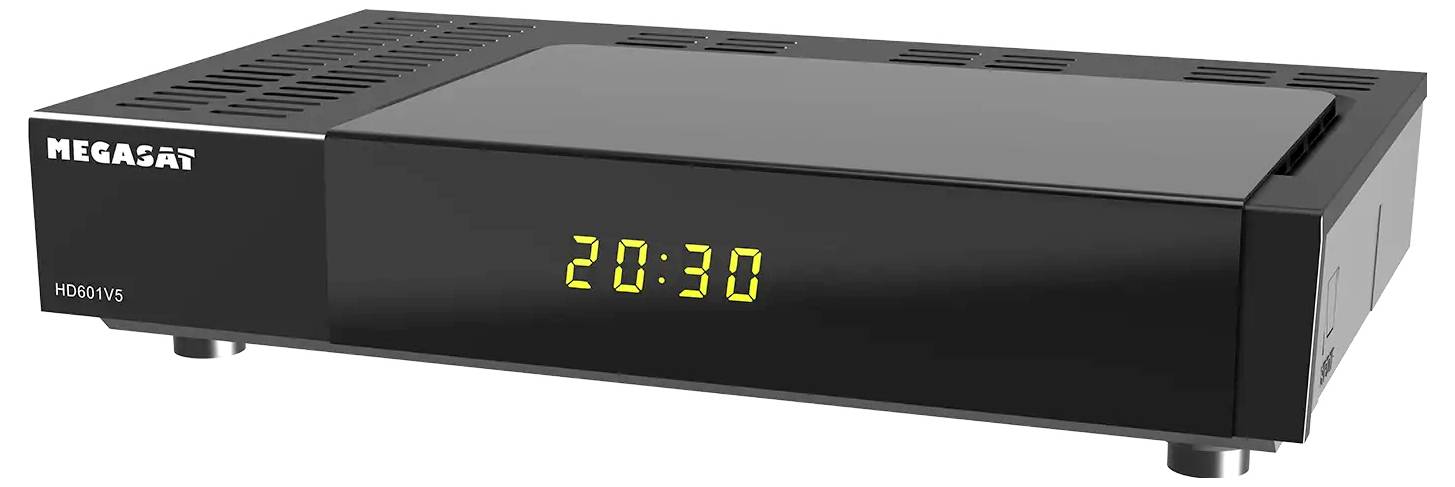

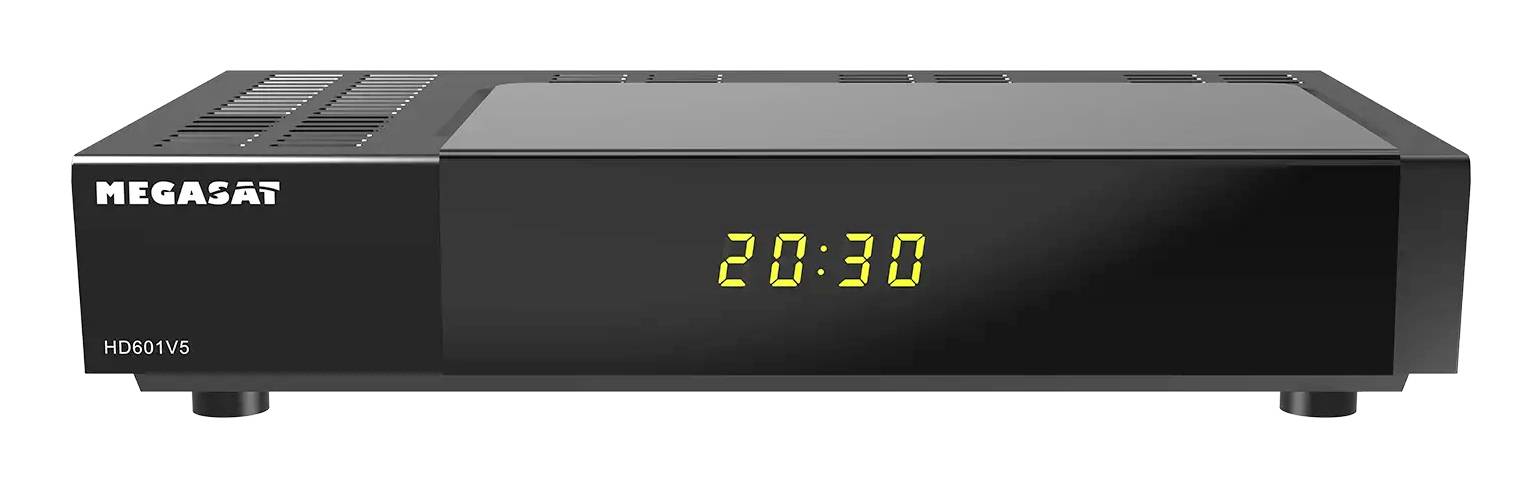

MegaSat HD 601 V5 satellite Full HD black
- SAT receiver
Technical specifications
- Digital signal format system DVB-S DVB-S2
- Number of channels: 5000 channels
- Product type
SAT receiver
- Width
180 mm
- Height
40 mm
- Depth
100 mm
- Weight
290 g
- Factory colour
Black
- Dim
(W x H x D) 180 x 40 x 100 mm
- Bluetooth
No
- Cable length
0 mm
- Version
Connection cable
- Image format
4:3
16:9
- Playback of
AAC
MP3
- No. of HDMI ports
1 x
- No. of USB A 2.0 ports
1 x
- Display resolution mode
Full HD
- Power consumption (standby)
0.5 W
- Power consumption (ON)
8 W
- Power supply (details)
100-240 V
- Wi-Fi
No
- UKCA
yes
- Ethernet LAN
no
- Remote control included
yes
- Timer
yes
- Digital audio optical out
1
- On Screen Display (OSD)
yes
- Input impedance
75 Ohm
- Card reader integrated
no
- Teletext function
yes
- Number of tuners
1 Signalempfänger
- Electronic Programme Guide (EPG)
yes
- SCART ports quantity
1
- RF ports quantity
1
- Manual
yes
yes
- Batteries included
yes
- Package weight
420 g
- Frequency range
950 - 2150 MHz
- Built-in HDD
no
- Built-in display
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3804687 MegaSat HD 601 V5 SAT receiver
Description
HD 601 V5
HD satellite receiver (DVB-S2) for receiving all free TV and radio programs. USB connection for media playback.
HD satellite receiver – ready to use and easy to use
The HD satellite receiver with Full HD resolution offers pin-sharp pictures for an optimum television experience. Thanks to the pre-programmed channel list, the device is ready to use immediately after connection, without any complex setup is required. The user-friendly and clear remote control provides for an easy and comfortable control.
Versatile USB functionality for media playback and updates
The integrated USB-connection enables the playback of photos, videos and music directly from a USB-stick or an external hard disk. In addition, firmware updates can be installed comfortably via the USB-connection, in order to keep the receiver always updated.
This text is machine translated.
Features
- Receives free-to-air DVB-S programs in top quality
- USB media player for different formats (e.g. MP3, AAC, etc.)
- Multi-day preview
- Fast teletext
- Timer and sleep timer function
- Energy saving with low consumption values in operation and standby
- Total program memory: 5000
- Video text subtitle
Scope of delivery
- MegaSat HD 601 V5

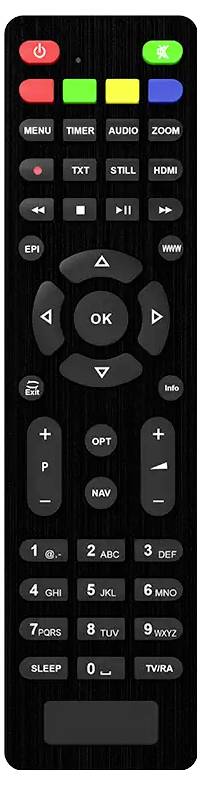

- Remote control incl. 2 × AAA batteries
- User manual
Hints
HDMI is a registered trademark of HDMI Licensing, LLC. The “CI Plus” Logo is a trademark of CI Plus LLP.
Unencrypted German-language HD channels (as of July 2014): Das Erste HD, ZDF HD, ARTE HD, ANIXE HD, ServusTV HD, QVC HD, QVC PLUS HD, HSE24 HD, HSE24 EXTRA HD, sonnenklar.TV HD, 3sat HD, BR HD, KiKA HD, NDR HD, MDR HD, hr HD, Phoenix HD, SWR HD, WDR HD, zdf.info HD, kultur.HD, neo_hd, einsfestival HD, eins plus HD, tagesschau24 HD, 123 tv HD, bibel TV HD, rbb HD, Juwelo TV HD.
