Megger LTW425-EU-SC Electrical tester VDE standard 0100, 0105
EAN:
Part number:
Item no:
Number
Total (€ 953.78 / piece)
€ 953.78
plus VAT.
Only 1 Piece(s) available
Highlights & Details

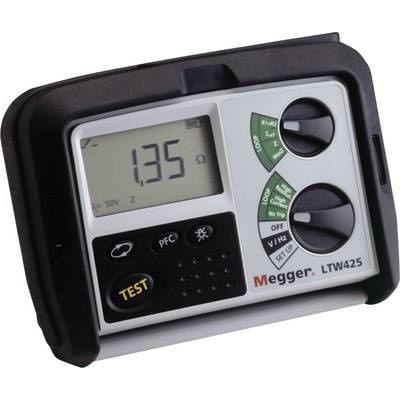

LTW 425, loop impedance measuring device
- Loop testing with low test current without triggering a 30 mA-FI/RCDs
- Loop testing with a high test current for high resolution of 0.001 Ohm
- Voltage range from 50 to 440 V, 45...65 Hz
- Robust casing with protective cover, protection class IP 54.
Technical specifications
- Loop testing with low test current without FI/RCD of 0.01 Ω to 2000 Ω
- Loop testing with a high test current of 0.001 Ω to 2000 Ω
- Display of the short-circuit current up to 40 kA
- Voltage measurement from 50 to 440 V
- Frequency measurements from 25 to 99.99 Hz.
- Product type
Electrical tester
Manufacturer's standards (no certificate)
- Reading category
CAT IV 300 V
- Dim
(L x W x H) 148 x 203 x 78 mm
- Weight
1000 g
- Reading range (VDE)
Loop impedance
- DIN standard
DIN VDE 0100
- Display type
LCD
- Width
203 mm
- Height
78 mm
- Length
148 mm
- Test procedure
automated
- Voltage supply
Battery
- Type
LTW425-EU-SC
- VDE standard
0100
0105
- Features
RCD/FI testing
- Power supply (details)
Batteries 8 x 1.5 V IEC LR6 (AA) or NiMH rechargeable batteries
- Reading category
CAT IV 300 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 556125 Megger LTW425-EU-SC Electrical tester VDE standard 0100, 0105
Conformity certificate
Conformity certificate 556125 Megger LTW425-EU-SC Electrical tester VDE standard 0100, 0105
Description
The devices of the new LTW 400-series offer a 2-conductor loop testing with low test current without triggering an FI/RCDs, as well as with a high test current for a high resolution. The devices can be used for a wide voltage range.
This text is machine translated.
This text is machine translated.
Features
- Measurement category CAT IV/300 Volt
- Protection class IP54
- Automatic start function
- Backlit LC display
- Voltage and frequency measurement
- Operation with batteries and rechargeable batteries is possible.
Scope of delivery
- Hard case
- Test lead set 2-pin, with terminals
- Safety test lead
- 8 batteries
- Detailed instructions on CD.
