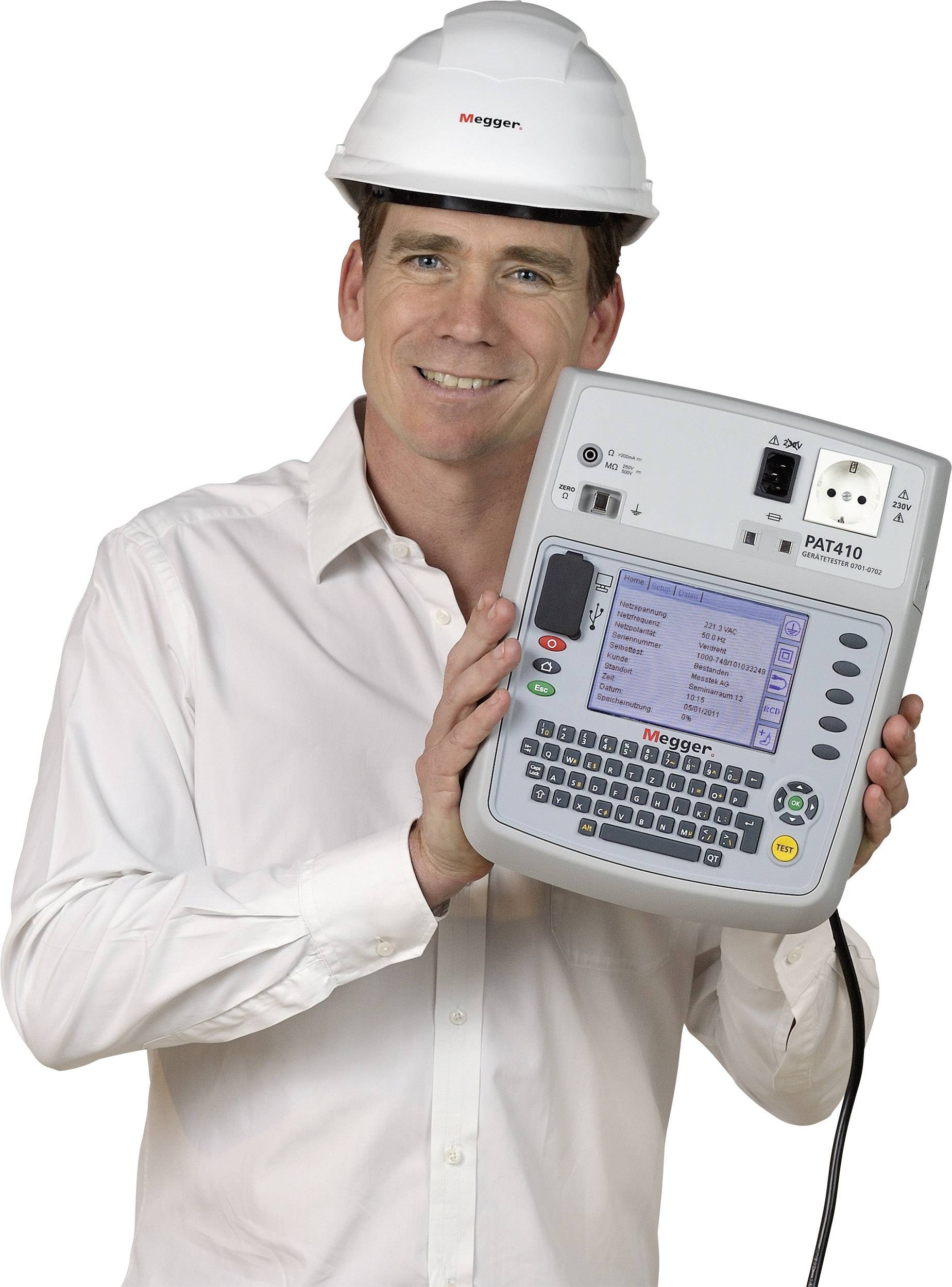

Megger PAT410-DE Equipment tester VDE standard 0701-0702
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 2,475.00 / piece)
€ 2,475.00
incl. VAT
Only 7 Piece(s) available
Highlights & Details
PAT 410, device tester according to DIN VDE 0701-0702, BGV A3, EN 62638
- PC-independent, internal database for 10,000 records
- Bi-directional data exchange between meter and PC
- Fast test sequences using expert mode, safety by means of "Login PIN"
- Full-fledged keyboard for data acquisition on site
- High-resolution 14.5 cm (5.7"") illuminated color VGA display with intuitive user navigation
Technical specifications
- Earthing conductor test 200mA DC
- Test lead compensation
- Insulation test 250V and 500V
- Leakage current measurement method
- Protective conductor current measurement according to the differential current measurement method
- Contact current measurement after the direct measurement method
- Test with power measurement
- Testing of mains connection cables and extension cables
- Testing of mobile FI/RCD circuit breaker (GFCI) with 30 mA.
- Product type
Equipment tester
Manufacturer's standards (no certificate)
- Reading category
CAT II 300 V
- Interfaces
USB
- Dim
(L x W x H) 320 x 255 x 120 mm
- Weight
2.7 kg
IP40
- Reading range (VDE)
Insulation resistance
Leakage current
Differential current
Touch voltage
Voltage
Frequency
Power
Continuity
- DIN standard
DIN EN 62638
- Display type
Digital (LCD)
- Width
255 mm
- Height
120 mm
- Length
320 mm
- Test procedure
automated
- Voltage supply
230 V/AC
- Memory (space)
10000
- Memory
Yes
- Type
PAT410-DE
- VDE standard
0701-0702
- Features
RCD/FI testing
- Memory
10,000 records
- Display (details)
VGA color display, 14.5 cm (5.7"), beleuchtetet
- Interfaces
3 x USB
- Reading category
CAT II 300 V
- Standards
DIN VDE 0701-0702, BGV A3, EN 62638
Documents & Downloads
Datasheet
Datasheet 106261 Megger PAT410-DE Equipment tester VDE standard 0701-0702
User & Safety Instructions
User & Safety Instructions 106261 Megger PAT410-DE Equipment tester VDE standard 0701-0702
Description
Completely freely configure PAT 410 according to your specifications. Unusual quickly, you can now inventory, check and document. Even faster working with the optional barcode printer and scanner. PC-independent allows the huge, internal data memory with 10000 records the practically unlimited storage of resources for your customers, locations and departments. They give everything about the full QWERTY keyboard or via the barcode scanner directly on site.
This text is machine translated.
This text is machine translated.
Features
- Automatic and manual test sequences
- Adjustable GOOD/BAD evaluation for immediate identification faulty devices
- Buffer storage up to 5 min for quick-start function in case of relocation
- Only a probe connection for protective conductor, insulation resistance and contact current
- Entry of 20 characters for the Prufling-Nr.
- Automatic Reversal/plug rotation L-N at ground conductor and contact current measurement
- 3 USB interfaces for PC, barcode printer and scanner
- Direct printing of test labels with barcode on site
- Connection for optional RFID scanner
- Bi-directional data exchange via USB-Stick
- Data Export to CSV or database
Scope of delivery
- Bag
- Test lead with probe tip and alligator clip
- Adapter IEC C6-C13 (clover)
- Adapter for extension cables
- Calibration certificate
- Quick guide
- User guide on CD.
- Software Download Manager.
