Metrel MI 3205 EU Insulation tester
EAN:
Part number:
Item no:
Number
Total (€ 4,205.00 / piece)
€ 4,205.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Insulation tester
- Reading type
Insulation resistance
Manufacturer's standards (no certificate)
- Interfaces
RS232
- Reading category
CAT IV 600 V
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2536349 Metrel MI 3205 EU Insulation tester
Information
Test Summary Report 2536349 Metrel MI 3205 EU Insulation tester
Description
The MI 3205 TeraOhm XA 5 kV is a portable, battery (Li-Ion) or mains-operated test device with excellent IP protection (IP65 housing closed and IP54 housing open), for determining the insulation resistance, by using high-test voltages up to 5 kV. It was developed and produced with the extensive knowledge and experience acquired over many years by working in this field.
This text is machine translated.
This text is machine translated.
Features
- Insulation resistance up to 15 TΩ;Adjustable test voltage (50 V...5 kV) 50 V and 100 V steps;Programmable timer;Capacity measurement;Charging speed at capacitive load <1.5 s / µF at 5 kV;Automatic discharge of the test specimen after completion of the measurement;Shield connection;High-voltage breakdown detection;Customer-specific tests;Automatic setting function;Measurement results in numerical and graphical display;HVLink PRO PC software for downloading and analyzing test results and printing the test report;Insulated RS232 and USB communication ports, BT interface;High-quality accessories including shielded test leads in the standard set;High protection against EM interference; Input AC noise suppression (1 mA∞300 V) and additional averaging of results (5, 10, 30, 60);CAT IV / 600 V;Increased nominal working height up to 3000 m;Power supply via mains and with rechargeable battery (Li-ion).

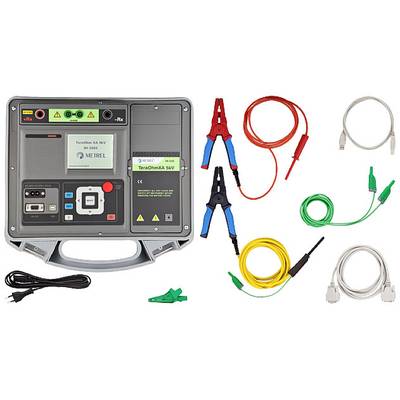

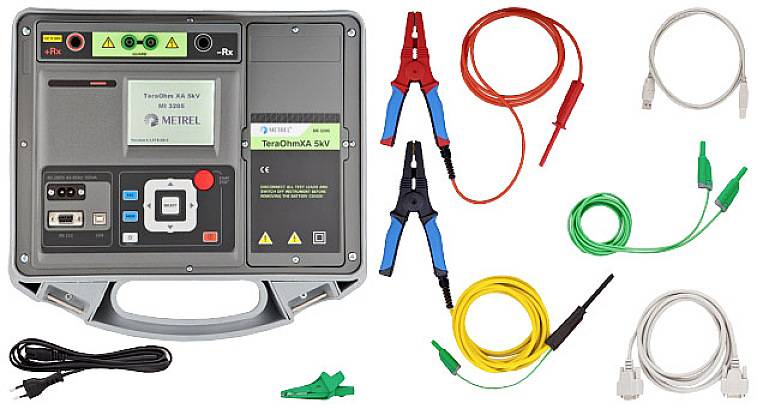

Scope of delivery
- Measuring device MI 3205 TeraOhmXA 5 kVLarge alligator clip with shielded test lead 10 kV, 2.5 m, redLarge alligator clip with shielded test lead 10 kV, 2.5 m, blackLead wire, green, 2.5 mAlligator clip, greenPower cable;PC software HVLink PRO with USB and RS 232 cableManual "Manual for modern insulation tests" on CDInstructions for use (on CD)Calibration certificate
Hints
Supplied with German license.
