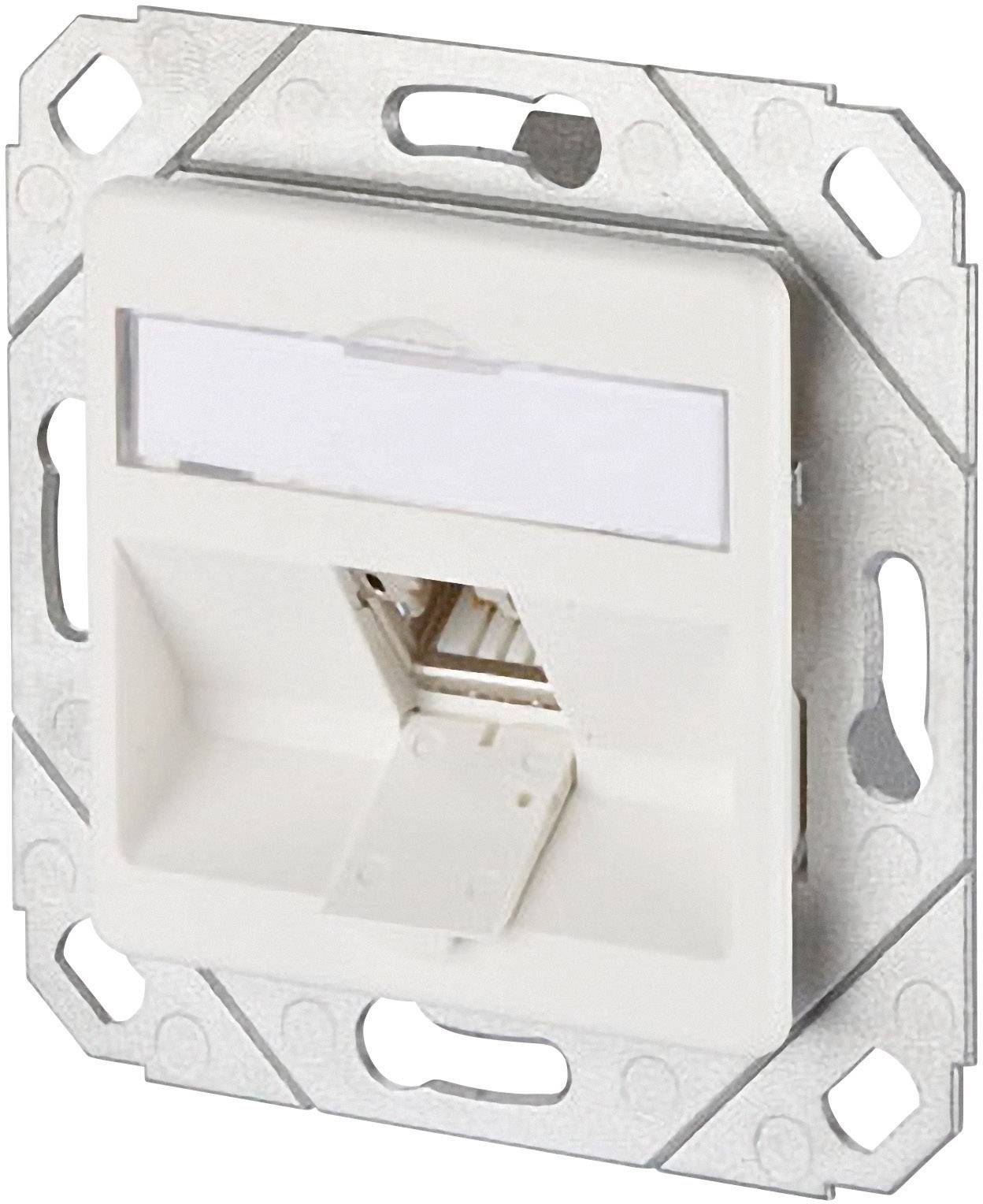

Metz Connect Network outlet Flush mount Insert with main panel CAT 6A 1 port Pure white
EAN:
Part number:
Item no:
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
BTR NETCOM 130B12D11102-E
Highlights & Details
- Channel connection unit with C 6 A module 270°
- GHMT Cat 6A re-embedded PVP certified.
- Cat 6A component testing according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09, TIA/EIA-568-C.2 (2009-08) and IEC 60603-7-51 Ed.1 (12/2008), GHMT certified
- This text is machine translated.
Technical specifications
- Product type
Network outlet
- Mounting type
Flush mount
- Type
Insert with main panel
CAT 6A
- No. of LAN ports
1 x
- Features
Modular
- Factory colour
Pure white
- Switch type function
Network junction box
- Switch type component
Insert
- Similar RAL
9010
- Port
1 port
- Weight
943.50
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 994410 Metz Connect Network outlet Flush mount Insert with main panel CAT 6A 1 port Pure white
Description
Modular junction box for building a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 Gbit networks and the power supply with PoE with up to 90W. The only two-part, very robust, nickel-plated die-cast zinc module allows the installer to connect easily and in the shortest possible time without special tools. In addition to the permanent quality control accompanying the production, independant test laboratories with different certificates confirm the very good quality of the individual modules. The junction boxes are supplied in commercially-friendly, individual carton boxes with 10 pieces each.Variants, assembly type: AP, UP, UPK, UP0, Variants, number of ports: 1, 2, 3
This text is machine translated.
This text is machine translated.
Features
- Compliance with the Class EA to 500 MHz according to ISO/IEC 11801 Ed.2.2: 2011-06, DIN EN 50173-1:2011-09
- Tested: components up to 600 MHz, link up to 800 MHz
- For 10 GBit Ethernet (IEEE 802.3an)
- Suitable for Power over Ethernet (PoE, PoE plus and UPoE)
- This enables an easy to mount connection of data lines AWG 24/1 - 22/1 (single-wired) and AWG 26/7 to 22/7 (multi-wired) to IDC terminals.
- Insert direction of the module inclined 45° downward
- Strain-relief with licking clip at the loading piece with a viewing window for accompanying inscription insert
- Inscription arc 209 x 294 mm see accessories
- Integrated dust-protection flaps (also available in color)
- Cover panels, pure white RAL 9010, matt surface structure
- Compatible with central design pieces of switch programs (Note 3 Port center pieces currently only available from the company JUNG)
- Suitable for mounting in standard flush-mounting and hollow wall cup, except variant 3 Port!
- Variants: 1 Port, 2-Port, 3-Port
