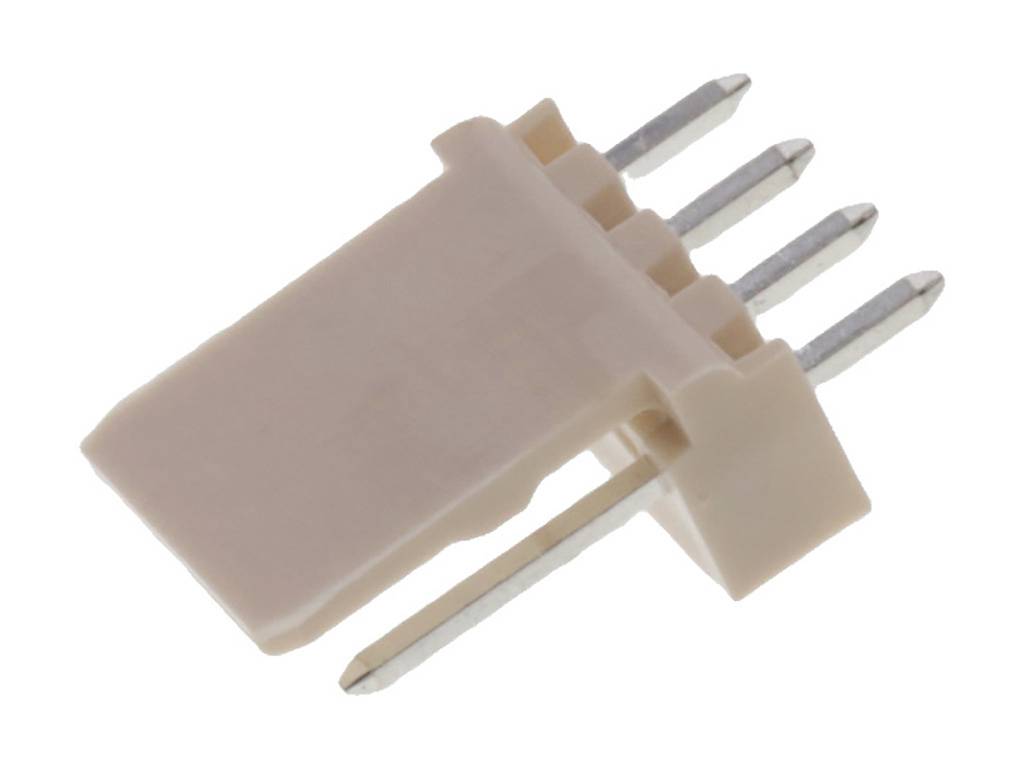

Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.5 mm 22041041 1 pc(s) Bag
EAN:
Part number:
Item no:
Product type
Built-in pin strip (standard)
No. of rows
1
CS
2.5 mm
Total number of pins
4
Packaging type
Bag
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
3
-
€ 0.29
9
7% = € 0.02
€ 0.27
15
10% = € 0.03
€ 0.26
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 3
Total (€ 0.29 / piece)
€ 0.87
plus VAT.
Highlights & Details
2.5 mm WTW/WTB
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 4
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Connector system
wire-to-board
wire-to-wire
- Features
+ locking mechanism
- CS
2.5 mm
- Total number of pins
4
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
5.08 µm
- Connector coating thickness
5.08 µm
- Case material
Polyamide
- Manufacturer part #
22041041
- Factory colour
Ecru
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
250 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
5045-04A
- Engineering Series Name
2.5 MM Header
- Engineering Series No
05045
Documents & Downloads
Datasheet
Datasheet 2447823 Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.5 mm 22041041 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447823 Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.5 mm 22041041 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447823 Molex Built-in pin strip (standard) Total number of pins 4 Contact spacing: 2.5 mm 22041041 1 pc(s) Bag
Description
Mini-Latch / KK Wire-to-Board Header, Vertical, with Friction Ramp, 4 Circuits, Tin (Sn) Plating, Natural
