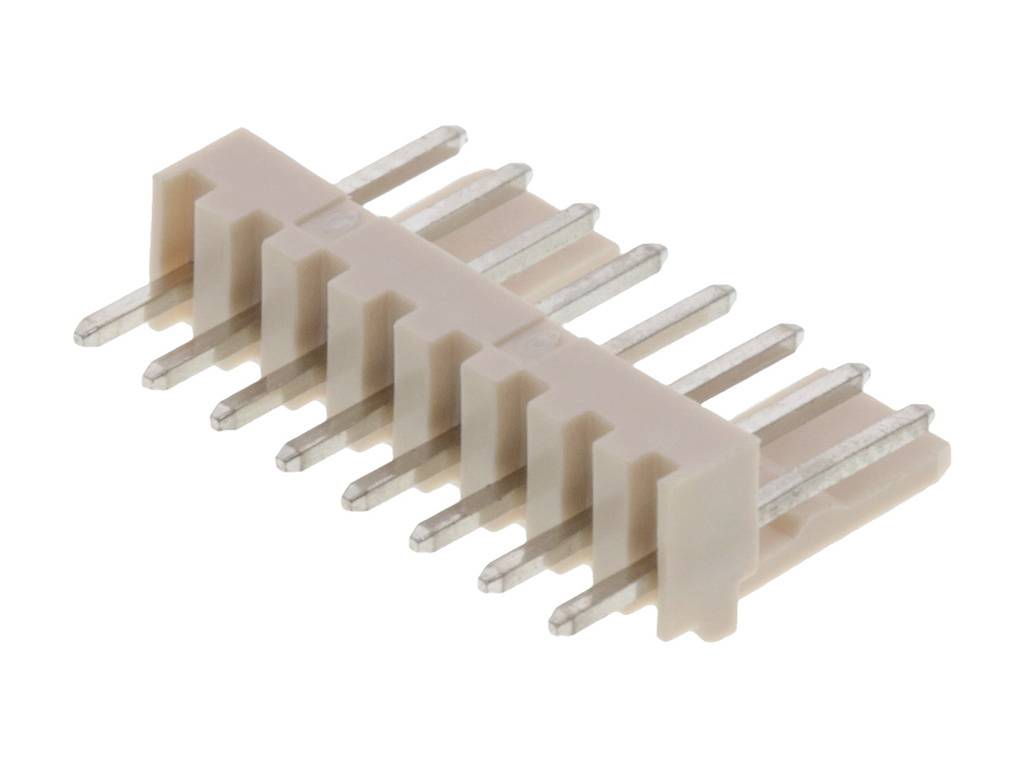

Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 2.5 mm 22041081 1 pc(s) Bag
Product type
Built-in pin strip (standard)
No. of rows
1
CS
2.5 mm
Total number of pins
8
Packaging type
Bag
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 1.77 / piece)
€ 1.77
incl. VAT
14-day return policy included
Highlights & Details
2.5 mm WTW/WTB
- Content: 1 pc(s)
- No. of rows: 1
- Total number of pins: 8
Our service for you
Technical specifications
- Please review product datasheet for further information.
- Packaging type
Bag
- Product type
Built-in pin strip (standard)
- No. of rows
1
- Connector system
wire-to-board
wire-to-wire
- Features
+ locking mechanism
- CS
2.5 mm
- Pins per row
8
- Total number of pins
8
- Nominal current
3 A
- Nominal current - rounded value
3 A
- Content
1 pc(s)
- Connection
Soldering
- Coating thickness (PCB side)
5.08 µm
- Connector coating thickness
5.08 µm
- Actuation direction
Perpendicular (to the PCB)
- Case material
Polyamide
- Manufacturer part #
22041081
- Factory colour
Ecru
- Contact material
Brass
- Board contact surface
Tin
- Connector contact surface
Tin
- Nominal voltage
250 V
- RoHS-compliant
Yes
- Connector orientation
Perpendicular (to the PCB)
- Max. temperature
+105 °C
- Min. temperature
-40 °C
- Type
Molex MOL Power & Signal Sol.
- Engineering Part No
5045-08A
- Engineering Series Name
2.5 MM Header
- Engineering Series No
05045
Documents & Downloads
Datasheet
Datasheet 2447826 Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 2.5 mm 22041081 1 pc(s) Bag
User & Safety Instructions
User & Safety Instructions 2447826 Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 2.5 mm 22041081 1 pc(s) Bag
Circuit diagramm
Circuit diagramm 2447826 Molex Built-in pin strip (standard) Total number of pins 8 Contact spacing: 2.5 mm 22041081 1 pc(s) Bag
Description
Mini-Latch / KK Wire-to-Board Header, Vertical, with Friction Ramp, 8 Circuits, Tin (Sn) Plating, Natural
