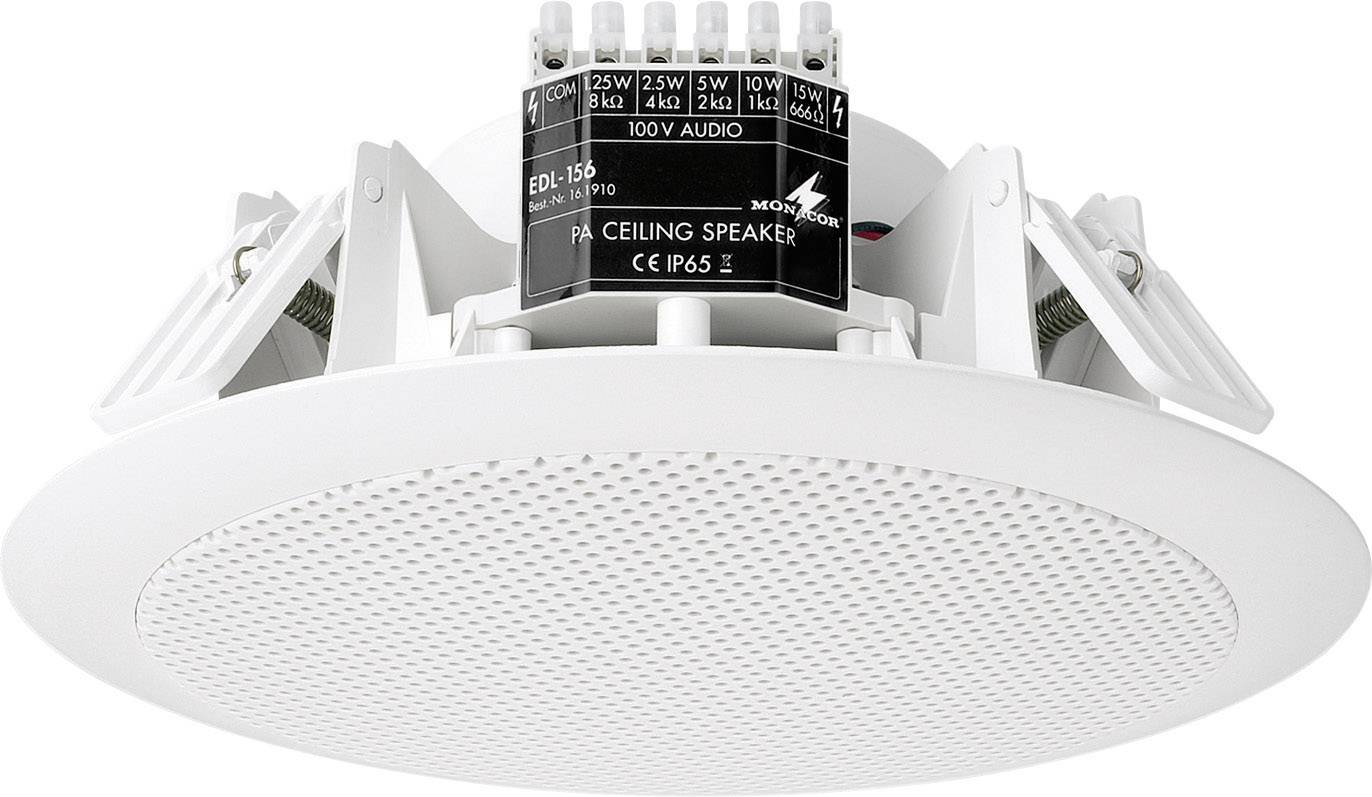

Monacor EDL-156 PA recessed speaker 15 W 100 V White 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 109.99 / piece)
€ 109.99
incl. VAT
14-day return policy included
Highlights & Details
Monacor EDL-156 ELA speaker
- 100-V transformer technology.< br> 2-way system with dome tweeter< br> excellent sound
Technical specifications
- Avg. Sound pressure (1W/1m): 88 dB
- Product type
PA recessed speaker
- Max. load
15 W
- Power levels
1.25 W
2.5 W
5 W
10 W
15 W
- Max. sound pressure
100 dB
- Features
2-way
Sauna/steam room suitability
weatherproof
sprayproof
- Frequency range
60 - 20 000 Hz
- Operating voltage
100 V
- Factory colour
White
- Material
Plastic
- Mounting depth
75 mm
- Recess diameter
190 mm
- Depth
100 mm
- (Ø)
226 mm
- Weight
1.1 kg
- Dim
(Ø x D) 226 mm x 100 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 314169 Monacor EDL-156 PA recessed speaker 15 W 100 V White 1 pc(s)
User & Safety Instructions
User & Safety Instructions 314169 Monacor EDL-156 PA recessed speaker 15 W 100 V White 1 pc(s)
Description
Weatherproof PA ceiling-mounted loudspeaker, temperature-resistant up to 100°C. For the sauna and swimming pool area.
This text is machine translated.
This text is machine translated.
Features
- White plastic housing
- Weather-proof loudspeaker membrane
- Tested in accordance with ASTM B117 (400-hour salt water spray test).
