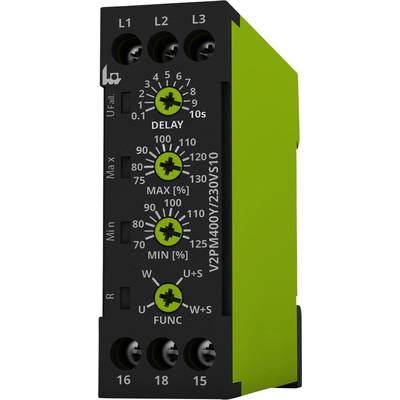

Monitoring relay 230 - 400 V AC 1 change-over tele V2PM400Y/230VS10 1 pc(s)
EAN:
Part number:
Item no:
Product type
Monitoring relay
Functions
3-phase
Phase sequence
Phase error
Overvoltage
Undervoltage
Undervoltage and overvoltage
Max. operating voltage
400 V AC
Contact type
1 change-over
Switching voltage (max.)
400 V AC
Datasheet (PDF)
Number
Total (€ 88.23 / piece)
€ 121.85
-28 %
€ 88.23
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Monitoring relay voltage (3-phase)
- Phase sequence and phase failure monitoring
- Supply Circuit = measuring circuit
- Multifunction
- This text is machine translated.
Technical specifications
- Product type
Monitoring relay
- Type
V2PM400Y/230VS10
- Functions
3-phase
Phase sequence
Phase error
Overvoltage
Undervoltage
Undervoltage and overvoltage
- Min. operating voltage
230 V AC
- Max. operating voltage
400 V AC
- Operating voltage
230 - 400 V AC
- Contact type
1 change-over
- Contact material
AgNi
- Switching voltage (max.)
400 V AC
- Switching current (max.)
8 A
- Electrical lifespan
100 x 10 3 cycles
- Durability
30 x 106 switching cycles
Casing: IP40 / connection: IP20
- Width
22.5 mm
- Height
67 mm
- Dim
(L x W x H) 76 x 22.5 x 67 mm
- Content
1 pc(s)
- Weight
86 g
- Length
76 mm
Documents & Downloads
Datasheet
Datasheet 1374150 Monitoring relay 230 - 400 V AC 1 change-over tele V2PM400Y/230VS10 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1374150 Monitoring relay 230 - 400 V AC 1 change-over tele V2PM400Y/230VS10 1 pc(s)
