Name: Monitoring relay 230 V AC (max) 1 change-over Metz Connect 110281052013 1 pc(s)
Brand: Metz Connect
SKU: 2860476
Availability: OutOfStock

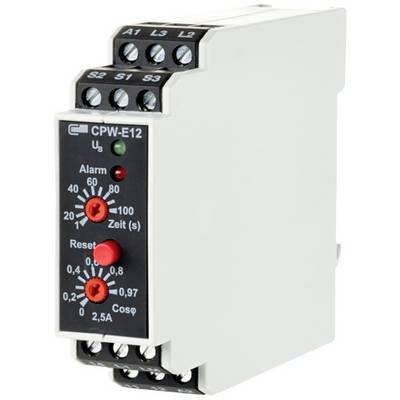

An electronic device for monitoring current or voltage with indicators and controls, typical for industrial applications.

Product type

Monitoring relay

Functions

Underload

Max. operating voltage

230 V AC

Contact type

1 change-over

Switching voltage (max.)

230 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Currently not available

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 93.99 / piece)

€ 93.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Monitoring relay CPW-E12, 230 V AC, 0.2 - 2.5 a

Measurement relaysMonitoring RelaysMotor protection monitoringFan belt monitoringCosPhi monitorBTR Netcom

Technical specifications

Product type: Monitoring relay

Type: 110281052013

Functions: Underload

Operating voltage: 230 V AC

Max. operating voltage: 230 V AC

Operating voltage: 230 V AC (max)

Contact type: 1 change-over

Switching voltage (max.): 230 V AC

Connection: Screw terminal

: IP40

Min. temperature: 0 °C

Max. temperature: +55 °C

Width: 22.50 mm

Height: 75 mm

Depth: 95 mm

Dim: (W x H x D) 22.50 x 75 x 95 mm

Content: 1 pc(s)

Weight: 170 g

Factory colour: Grey

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Contact type

Functions

Max. operating voltage

Switching voltage (max.)

Monitoring relay 230 V AC (max) 1 change-over Metz Connect 110281052013 1 pc(s)

Item no:2860476

Currently not available

Conrad Electronic

This article

1 change-over

Underload

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 93.99^*

Monitoring relay 230 V AC (max) 1 change-over Metz Connect 1102810520 Piece 1 pc(s)

Item no:2860475

Fast track dispatch on Thu 29 Oct

10 Piece(s)Conrad Electronic

1 change-over

Power factor monitoring

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 73.99^*

Monitoring relay 230 V AC (max) 1 change-over Metz Connect 11031505 1 pc(s)

Item no:2860477

Available soon

Conrad Electronic

1 change-over

PTC temperature monitoring

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 44.99^*

Monitoring relay 230 V AC (max) 1 change-over Metz Connect 11031605 1 pc(s)

Item no:2860480

Available soon

Conrad Electronic

1 change-over

PTC monitoring

230 V AC

Piece(s)

Minimum order quantity: 2

Multiple: 2

€ 49.99^*

Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 1101500522 Piece 1 pc(s)

Item no:2860474

Available soon

Conrad Electronic

2 change-overs

RPM undershoot

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 89.99^*

Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 110270 Piece 1 pc(s)

Item no:2860485

Available soon

Conrad Electronic

2 change-overs

Phase monitoring

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 11027070 1 pc(s)

Item no:2860486

Available soon

Conrad Electronic

2 change-overs

Phase monitoring

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 110271 1 pc(s)

Item no:2860489

Fast track dispatch on Thu 29 Oct

29 Piece(s)Conrad Electronic

2 change-overs

Undervoltage

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 97.99^*

Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 11027170 1 pc(s)

Item no:2860490

Available soon

Conrad Electronic

2 change-overs

Undervoltage

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 42.99^*

Monitoring relay 230 V AC (max) 2 change-overs Metz Connect 11027205 Piece 1 pc(s)

Item no:2860491

Available soon

Conrad Electronic

2 change-overs

Overcurrent

230 V AC

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

Documents & Downloads

Datasheet

Datasheet 2860476 Monitoring relay 230 V AC (max) 1 change-over Metz Connect 110281052013 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2860476 Monitoring relay 230 V AC (max) 1 change-over Metz Connect 110281052013 1 pc(s)

Description

The cosPhi monitor is used to detect an underload. The response value and the response time can be set. It can also be used in conjunction with a frequency converter (frequency 2 to 200 Hz). The monitoring is done by detecting the phase shift between current and voltage. This phase angle shifts with the load of a motor. Settings of the functions via bridges S1 - S2 - S3: S1 - S2 open = in case of low-load relay has fallen back, S1 - S2 bridged = in case of low-load relay energized, S1 - S3 open = with fault memory, S1 - S3 bridged = without fault memory. By means of a closer on S1 - S3 the module can be unlocked remotely. In the event of a fault memory (no bridge over S1-S3), the error message remains until the acknowledgment or until the supply voltage is interrupted.
