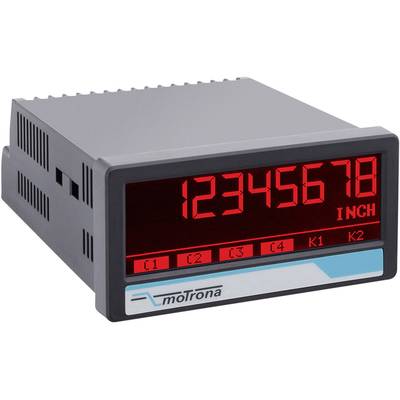

Motrona 6588.5150.IO Digital display
EAN:
Part number:
Item no:
Number
Total (€ 360.50 / piece)
€ 360.50
plus VAT.
Highlights & Details
IO-Link display
- Two separately scalable 16-bit analogueue inputs
- ±10 V or 0/4 … 20 mA
- 3 control inputs for HTL / PNP signals
- Power supply 18 ... 30 VDC
- Auxiliary voltage output 24 VDC for encoder supply
- Highly accurate 10 V reference output for 1> kOhm potentiometer
- Standard housing with 96 x 48 mm and protection class IP65
- Bright and high-contrast graphic display with event-dependant color variants
- Emulation of a 7-segment display with symbols and units
- Intuitive and simple parameterization through plain text and touch screen
- Multi-function device with operating modes for displaying
- Input 1, input 2, as well as links
- (IN1 + IN2, IN1 - IN2, IN1 X IN2, IN1: IN2)
- Numerous functions such as tare, filter, averaging
- Linearization with 24 interpolation points
- IO option (= IO-Link device V1.1)
- Cycle times< 3 msec
- Process data IN 32 bytes (6 x process values of AX350):
- Analogue value 1 (scaled / linearized) and unit
- Analogue value 2 (scaled / linearized) and unit
- Analogue value 1 (scaled / linearized) with totalization and unit
- Analogue value 2 (scaled / linearized) with totalization and unit
- Link analogue value 1 (scaled / linearized) with analogue value 2 (scaled / linearized) and unit
- Totalizer logic operation analogue value 1 (scaled/linearized) with totalizer analogue value 2 (scaled/linearized) and unit
- Process data Out 8 bytes (2 x IO-Link process values for AX350):
- IOL process values Out 1 with scaling, adjustable decimal point and programmable units
- IOL process values Out 2 with scaling, adjustable decimal point and programmable units
- Data transfer via COM3 (230.4 kBaud)
Technical specifications
- Product type
Digital display
- Reading type
Amperage
Voltage
- Reading range (min.)
20 mA
- Type
6588.5150.IO
- Reading range (max.)
10 V
- Display technology
LCD
IP65
- Recess width
96 mm
- Recess height
48 mm
- Operating voltage
24 V DC
- Dim
(L x W x H) 116 x 96 x 48 mm
- Weight
200 g
- Max. operating voltage
30 V DC
- Min. operating voltage
18 V DC
- Display lighting
red
- Features
Colour display
selectable units
- Recess depth
116 mm
- Factory colour
Black
- Width
96 mm
- Height
48 mm
- Length
116 mm
- Frame width
96 mm
- Interfaces
IO-Link
- Digit height
13 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2160783 Motrona 6588.5150.IO Digital display
Description
With regard to Industry 4.0, the process display with IO-Link device enables, for example, the digitization of conventional analogue sensors. This results in a variety of innovative functions for standard sensors, such as the transmission of status information, the configuration of the devices during operation or the digital evaluation and scaling of analogue sensors. This saves, above all, conversion and commissioning costs. Moreover, thanks to extensive monitoring, weak points can be identified and revised even before a machine is stopped.
The device serves as an on-site display with IO-Link device for displaying two process data. With resistive touch screen and multi-color graphic display (red, green, yellow). Display of plain text, symbols and units is possible
This text is machine translated.
The device serves as an on-site display with IO-Link device for displaying two process data. With resistive touch screen and multi-color graphic display (red, green, yellow). Display of plain text, symbols and units is possible
This text is machine translated.
Features
- Display standard housing
