Name: Motrona 7788.5150.RL.AC Digital display
Brand: Motrona
SKU: 2255828
Availability: BackOrder

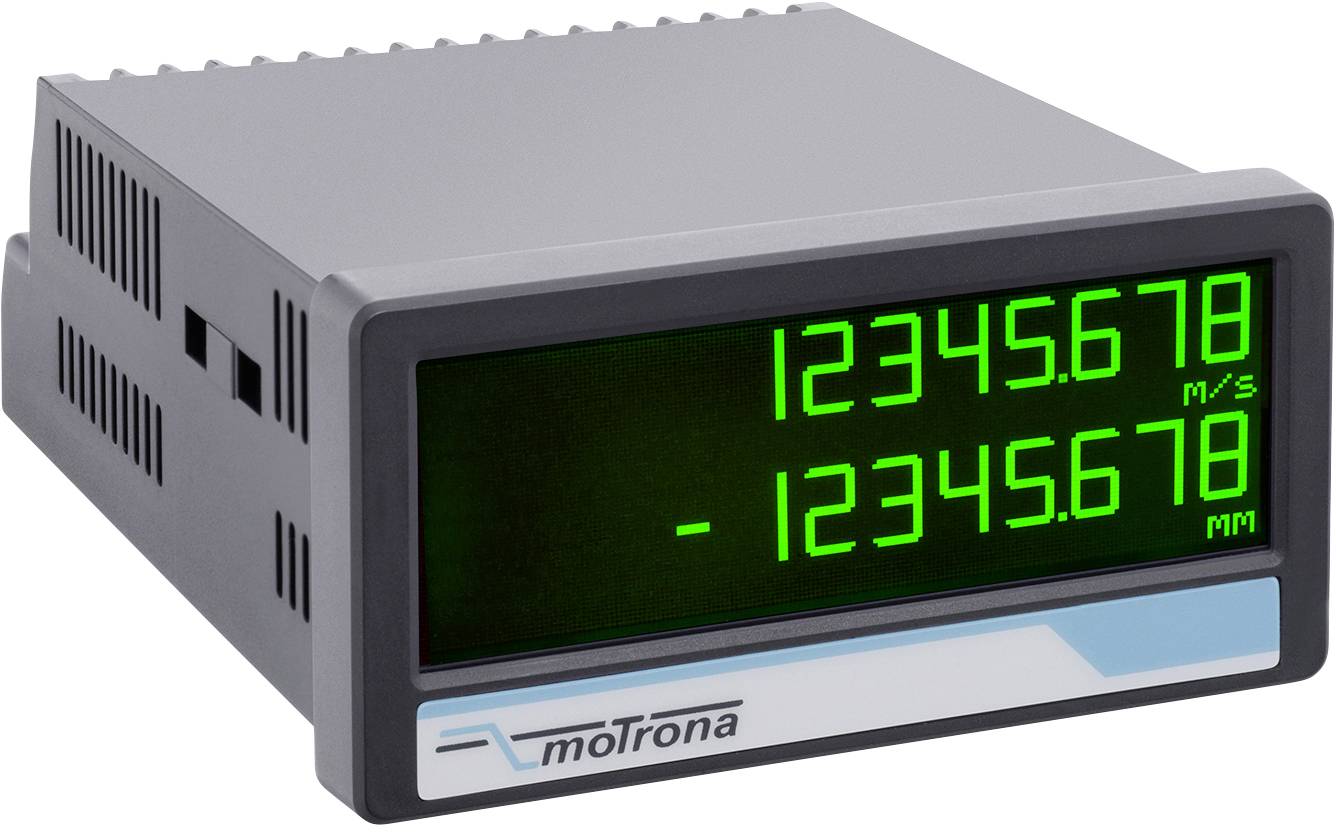

Electronic display with green LED digits: '12345.678 m/s' and '-12345.678 mm', manufacturer 'moTrona'.

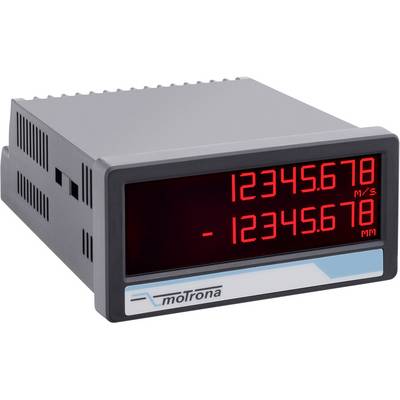

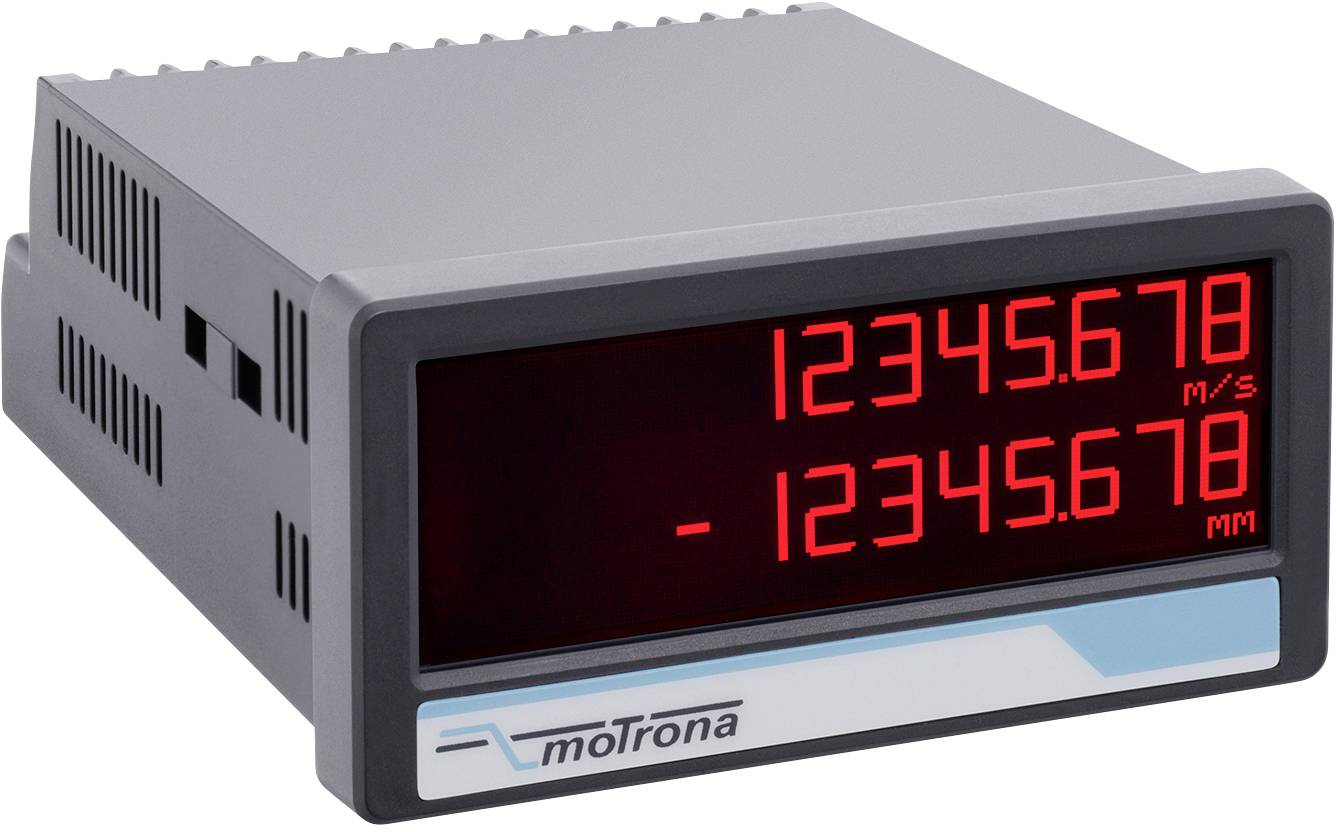

A digital display instrument from moTrona shows two values: '12345.678 m/s' and '- 12345.678 mm'.

'Diagram with "SEM" at the centre, surrounded by symbols: Photovoltaics, Hot Water, Energy Consumption, Comfort, Safety, E-Mobility, Power Grid, Automation, Lighting, Battery.'

1/4

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 645.00 / piece)

€ 645.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Combined display tachometer/position with additional relay outputs (230VAC version)

Dual display for incremental encoders or sensor signals;tachometer;frequency counter;length counter;position display;resistive touch screen;multi-color graphic display (red, green, yellow);adjustable scaling factor;switchable linearization with 24 interpolation points;digital filter function;actual value memory;4 control outputs

Technical specifications

Product type: Digital display

Reading type: Pulse

Type: 7788.5150.RL.AC

Display technology: LCD

: IP65

Recess width: 91 mm

Recess height: 43 mm

Operating voltage: 230 V

Dim: (L x W x H) 116 x 96 x 48 mm

Weight: 200 g

Max. operating voltage: 115 V

Min. operating voltage: 230 V

Display lighting: RGB

Features: Colour display

Recess depth: 105 mm

Factory colour: Red
Green
Yellow

Width: 96 mm

Height: 48 mm

Length: 116 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2255828 Motrona 7788.5150.RL.AC Digital display

Description

Process display that is very easy to configure. The multi-function inputs allow the simultaneous measurement and display of speed (frequency) also the determination of a position (counter) in a device. Pulses from a proximity switch or a rotary pulse encoder can be processed: Any input value can be assigned to a desired display value by means of a pulse evaluation factor. The 4 fast transistor outputs respond to the assigned limit values.

This text is machine translated.

Features

Robust plastic housing;bright and high-contrast display with event-dependant color variants;
Emulation of a 7-segment display with symbols and units;
Intuitive and simple parameterization through plain text and touch screen;4 limit values with transistor outputs

Scope of delivery

Mounting material for control panel installation
User manual

Description

Features

Robust plastic housing;bright and high-contrast display with event-dependant color variants;
Emulation of a 7-segment display with symbols and units;
Intuitive and simple parameterization through plain text and touch screen;4 limit values with transistor outputs
