Name: Motrona 7788.5150.RL Digital display
Brand: Motrona
SKU: 2255827
Availability: BackOrder

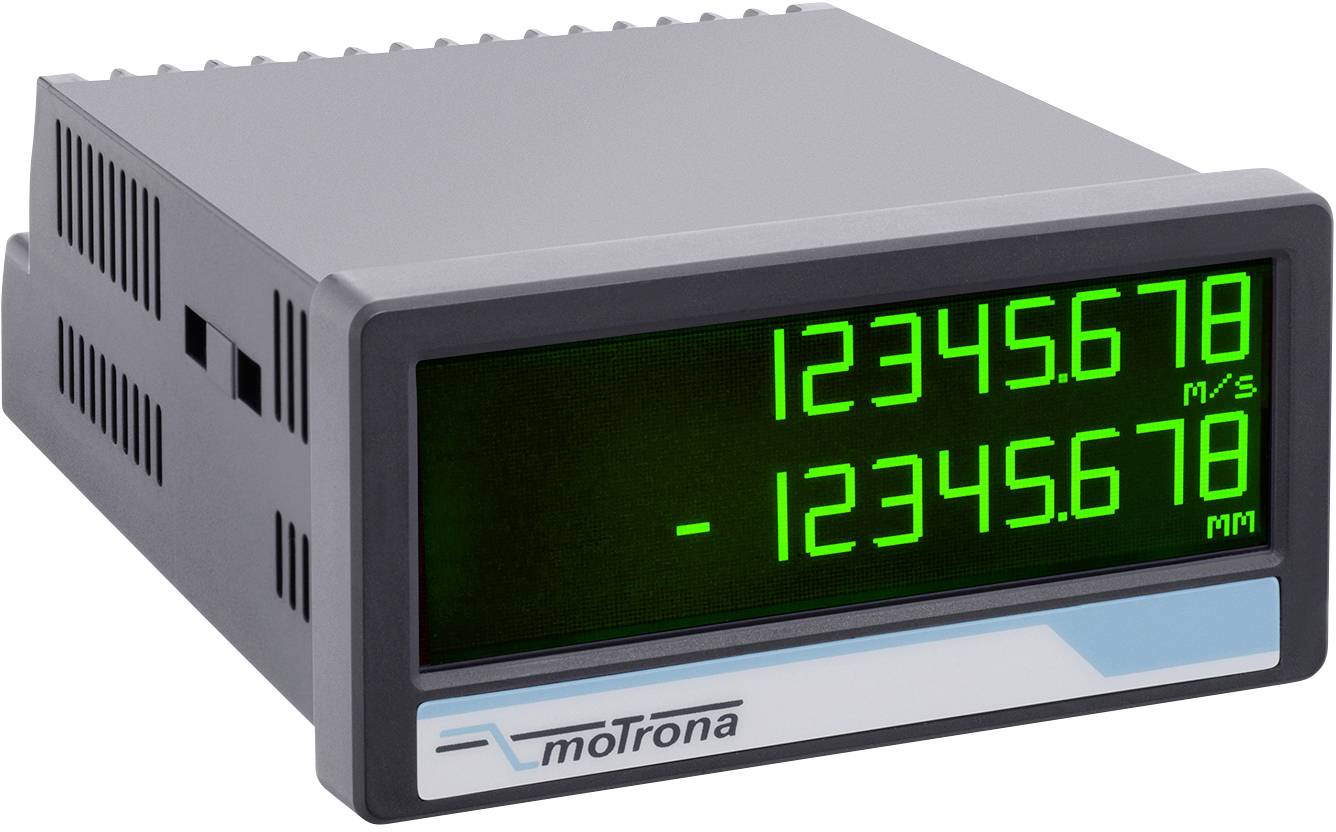

A digital display device with green illuminated text shows measurement values: '12345.678 m/s' and '-12345.678 mm'.

1/3

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 565.00 / piece)

€ 565.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Combined display tachometer/position with additional relay outputs

Dual display for incremental encoders or sensor signals;Tachometer;Tachometer;Tachometer;Frequency counter;Length counter;Position display;resistive touch screen;multicolor graphic display (red, green, yellow);adjustable scaling factor;connectable linearization with 24 interpolation points;Digital filter function;Actual value memory

Technical specifications

Product type: Digital display

Reading type: Speed

Type: 7788.5150.RL

Display technology: LCD

: IP65

Recess width: 91 mm

Recess height: 43 mm

Operating voltage: 24 V

Dim: (L x W x H) 116 x 96 x 48 mm

Weight: 200 g

Max. operating voltage: 30 V

Min. operating voltage: 18 V

Display lighting: RGB

Features: Colour display

Recess depth: 105 mm

Factory colour: Red
Green
Yellow

Width: 96 mm

Height: 48 mm

Length: 116 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2255827 Motrona 7788.5150.RL Digital display

Description

Process display that is very easy to configure. The multi-function inputs allow the simultaneous measurement and display of speed (frequency) also the determination of a position (counter) in a device. Pulses from a proximity switch or a rotary pulse encoder can be processed: Any input value can be assigned to a desired display value by means of a pulse evaluation factor.

This text is machine translated.

Features

Robust plastic housing;bright and high-contrast display with event-dependant color variants;
Emulation of a 7-segment display with symbols and units;
Intuitive and simple parameterization through plain text and touch screen

Scope of delivery

Mounting material for control panel installation
User manual

Description

Features

Robust plastic housing;bright and high-contrast display with event-dependant color variants;
Emulation of a 7-segment display with symbols and units;
Intuitive and simple parameterization through plain text and touch screen
