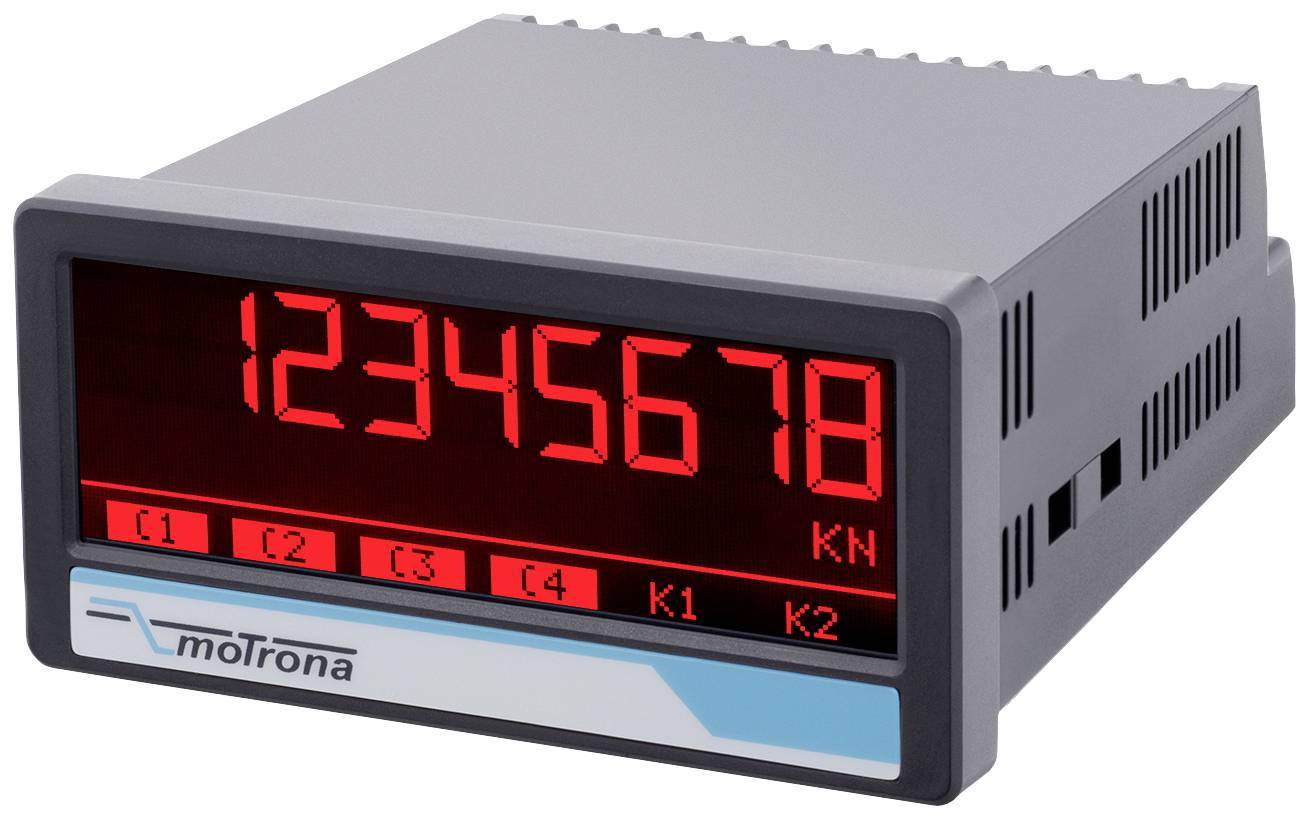

Motrona Digital display
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 373.95 / piece)
€ 373.95
plus VAT.
Only 3 Piece(s) available
Highlights & Details
DMS-displays for measured values of strain gauges and force sensors
- Input for full bridge
- Sensitivity: +/- 5mV, +/-10mV, +/-20mV, +/-40mV, +/-80mV
- 16-bit resolution
- Accuracy +/- 0.01% / 10K
- 3 control inputs
Technical specifications
- Connection type: Screw terminals, 1.5 mm2 / AWG 16
- Power supply DC input voltage: 18 ... 30 VDC
- Voltage supply DC Protective circuit: Reverse polarity protection
- Power supply DC Current consumption: Approx. 100 mA (unloaded)
- Power supply DC remaining ripple: ≤ 10%
- Power supply DC fuse: External: T 0.5A
- Power supply AC (option AC) Input voltage: 115...230 VAC, (50...60 Hz)
- Power supply AC (option AC) Power consumption: Approx. 3 VA (unloaded)
- AC power supply (option AC) Fuse: External: T 0.1 A.
- DMS supply output voltage 3-10 VDC
- DMS supply output current: Max. 50 mA
- DMS-inputs configuration: Voltage input / full bridge
- DMS inputs sensitivity: +/- 5mV, +/-10mV, +/-20mV, +/-40mV, +/-80mV
- DMS-inputs resolution 16 bit
- DMS-inputs Accuracy +/- 0.01% / 10K
- Control inputs Number of:3
- Control inputs Format: HTL, PNP (Low 0 ... 4 V, high 10 ... 30 V
- Control input Frequency: Max. 1 kHz
- Control inputs Response time 1 ms
- Control inputs load: Max. 3mA at 24VDC
- Analog Output (Option AO/AR) Configuration: Current or Voltage Output
- Analog output (Option AO/AR) Voltage output: -10 ... +10 V (max. 2 mA)
- Analog output (AO/AR option) Current output: 0/4 ... 20 mA (max. load 270 Ohm)
- Analogue output (option AO/AR) resolution / accuracy 16 bit / ± 0.1 %
- Analog output (Option AO/AR) Response time: Depends on OSR value and filter
- Control outputs (Option AO/AR/CO/CR) Number: 4
- Control outputs (Option AO/AR/CO/CR) Format: 5 ... 30 V (depending on voltage on Com+), PNP
- Control outputs (option AO/AR/CO/CR) Output current: Max. 60 mA
- CONTROL outputs (Option AO/AR/CO/CR) Response time < : 1 ms
- Relay outputs (option RL) Number: 2
- Relay Outputs (Option RL) Configuration: Changer (floating)
- Relay outputs (option RL) AC switching rating: Max. 250 VAC / 3 A / 750 VA
- Relay outputs (option RL) DC switching rating: Max. 150 VDC / 2 A / 50 W
- Relay outputs (option RL) Response time < 20 ms
- Serial interface format (option A0/CO): RS232
- Serial interface format (option AR/CR) 2-wire RS485
- Serial interface Baud rate:9600, 19200 or 38400 bps
- Serial interface protocol: LECOM, MODBUS
- Display type: Graphic LCD with backlight
- Display Display Display Display: 8 decades plus sign (-99999999 ... 99999999)
- Display in digit height (single + Dual): 13 mm
- Display digit height (large display): 26 mm
- Display color: Red/green/yellow (switchable)
- Display operation: Touch-screen (resistive)
- Housing material ABS, UL 94 V-0
- Control panel mounting
- Housing dimensions (W x H x D): 96 x 48 x 116 mm
- Cut-out case (W x H) 91 x 43 mm
- Housing protection: Front IP65, rear IP20
- Housing weight: Approx. 200 g
- Ambient temperature operation: -20 °C ... +60 °C (non-condensing)
- Ambient temperature Storage: -25 °C ... +70°C
- Ambient conditions Altitude: Max. 2000 m above sea level
- Ambient conditions Humidity: Max. 80% relative humidity up to 30°C.
- Environmental conditions Pollution level: 2
- Product type
Digital display
- Reading type
Temperature
- Type
6877.5150
- Display technology
LCD, graphic
IP20 (back panel)
IP65 (front)
- Recess width
91 mm
- Display (counts)
-99999999
99999999
- Recess height
43 mm
- Dim
(L x W x H) 116 x 96 x 48 mm
- Weight
200 g
- Max. operating voltage
30 V DC
- Min. operating voltage
18 V DC
- Display lighting
RGB
- Features
Colour display
- Recess depth
43 mm
- Width
96 mm
- Height
48 mm
- Length
116 mm
- Frame width
91 mm
- Interfaces
RS485
- Interfaces
Screw terminal
- Digit height
13 mm oder 26 mm
Documents & Downloads
Datasheet
Datasheet 2899372 Motrona Digital display
Datasheet 2899372 Motrona Digital display
User & Safety Instructions
User & Safety Instructions 2899372 Motrona Digital display
Description
This innovative DMS display is used to record, process and display the measurements of strain gauges and force sensors. As usual, our displays offer different display options through our innovative, three-color touchMATRIX® display. For temperature measurements it is also possible to connect and evaluate pt100 sensors and thermocouples of type J and K.
This text is machine translated.
This text is machine translated.
Features
- Robust plastic housing
- Bright and high-contrast display with event-dependent color variants
- Emulation of a 7-segment display with symbols and units
- Intuitive and easy configuration through plain text and touch-screen
Scope of delivery
- Mounting material for control panel installation
- User manual
