Name: Mueller Electric SMBM-BNCM17410 Coax Outside diameter: 2.8 mm RG174 50 Ω 40 dB Black 1 pc(s)
Brand: Mueller Electric
SKU: 3776105
Availability: BackOrder

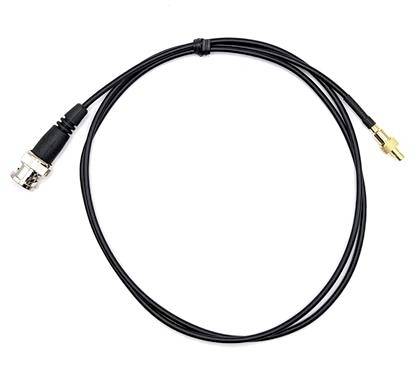

Black coaxial cable with BNC connector on one end and gold SMA connector on the other, coiled on a white background.

Product type

Coax

Cable type

RG174

Impedance

50 Ω

Shield rating greater than

40 dB

Cable features

Flexible

gold plated connectors

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 21.99 / piece)

€ 21.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Premium 1m coaxial cable (RG-174) – SMB connector to BNC connector, 50 ohm

SMB plug to BNC plug cable
Shielded
RG-174
Impedance: 50 ohm
Frequency range 0 - 3 GHz
VSWR: Max. 1.35
Operating temperature: -30 °C to 70 °C

Technical specifications

Ready-made 1m cable
Brass connector housing

Product type: Coax

Cable type: RG174

Impedance: 50 Ω

Shield rating greater than: 40 dB

Cable features: Flexible
gold plated connectors

Core Ø: 0,48 mm

Factory colour: Black

Outside Ø: 2.8 mm

Content: 1 pc(s)

Bend radius (no. of ODs for fixed installation): 5

Bend radius (no. of ODs for flexible installation): 10

Attenuation: Approx. 1 dB/m at 1 GHz

Packaged: Yes

Sold per metre: No

Halogen-free: No

Capacity per metre: 100 pF

Manufacturer part #: SMBM-BNCM17410

Insulation material: PVC

Certification marks: Complies with MIL-C-17

Test voltage: 1.5 kV

Standards: RoHS compliant

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): 80 °C

Min. temperature range (flexible installation): -20 °C

Max. temperature range (flexible installation): 80 °C

Type: SMBM-BNCM17410

Dielectric: PTFE

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Shield rating greater than

Factory colour

Cable type

Outside Ø

Cable features

Mueller Electric BU-4150003MM500 Coax Outside diameter: 2.5 mm RG316 50 Ω 60 dB Transparent, Brown 1 pc(s)

Item no:3776068

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

60 dB

Transparent

RG316

2.5 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 16.99^*

Mueller Electric BU-4150003MM750 Coax Outside diameter: 2.5 mm RG316 50 Ω 50 dB Transparent, Brown 1 pc(s)

Item no:3776069

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

50 dB

Transparent

RG316

2.5 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 20.99^*

Mueller Electric BU-4150038M1.0 Coax Outside diameter: 4.95 mm RG58 50 Ω Black 1 pc(s)

Item no:3776070

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

Black

RG58

4.95 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 36.99^*

Mueller Electric BU-4150038M2.0 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)

Item no:3776071

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

60 dB

Black

RG58

4.95 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 38.99^*

Mueller Electric BU-4150038MM250 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)

Item no:3776072

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

60 dB

Black

RG58

4.95 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 22.99^*

Mueller Electric BU-4150038MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)

Item no:3776073

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

60 dB

Black

RG58

4.95 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 25.99^*

Mueller Electric BU-4150059M1.5 Coax Outside diameter: 4.95 mm RG58 50 Ω 60 dB Black 1 pc(s)

Item no:3776074

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

60 dB

Black

RG58

4.95 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 34.99^*

Mueller Electric BU-4150059MM250 Coax Outside diameter: 4.95 mm RG58 50 Ω 90 dB Black 1 pc(s)

Item no:3776075

Available soon

Conrad Electronic

90 dB

Black

RG58

4.95 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 23.99^*

Mueller Electric BU-4150059MM500 Coax Outside diameter: 4.95 mm RG58 50 Ω 38 dB Black 1 pc(s)

Item no:3776076

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

38 dB

Black

RG58

4.95 mm

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 21.99^*

Mueller Electric BU-4150059MM750 Coax Outside diameter: 4.95 RG58 50 Ω 40 dB Black 1 pc(s)

Item no:3776077

Fast track dispatch on Wed 14 Oct

2 Piece(s)Conrad Electronic

40 dB

Black

RG58

4.95

Shielded

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 26.99^*

Documents & Downloads

Datasheet

Datasheet 3776105 Mueller Electric SMBM-BNCM17410 Coax Outside diameter: 2.8 mm RG174 50 Ω 40 dB Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3776105 Mueller Electric SMBM-BNCM17410 Coax Outside diameter: 2.8 mm RG174 50 Ω 40 dB Black 1 pc(s)

Description

Connect your high-frequency components absolutely reliably and without loss. This high-quality, 1 meter long RG-174 coaxial cable adapter connects SMB and BNC-connections in a jiffy. Thanks to the precise shielding and an optimal frequency range of up to 3 GHz, it is the perfect choice for professional signal transmission, measurement and wireless technology – even under extreme temperature conditions from -30 °C to 70 °C.
