Image similar

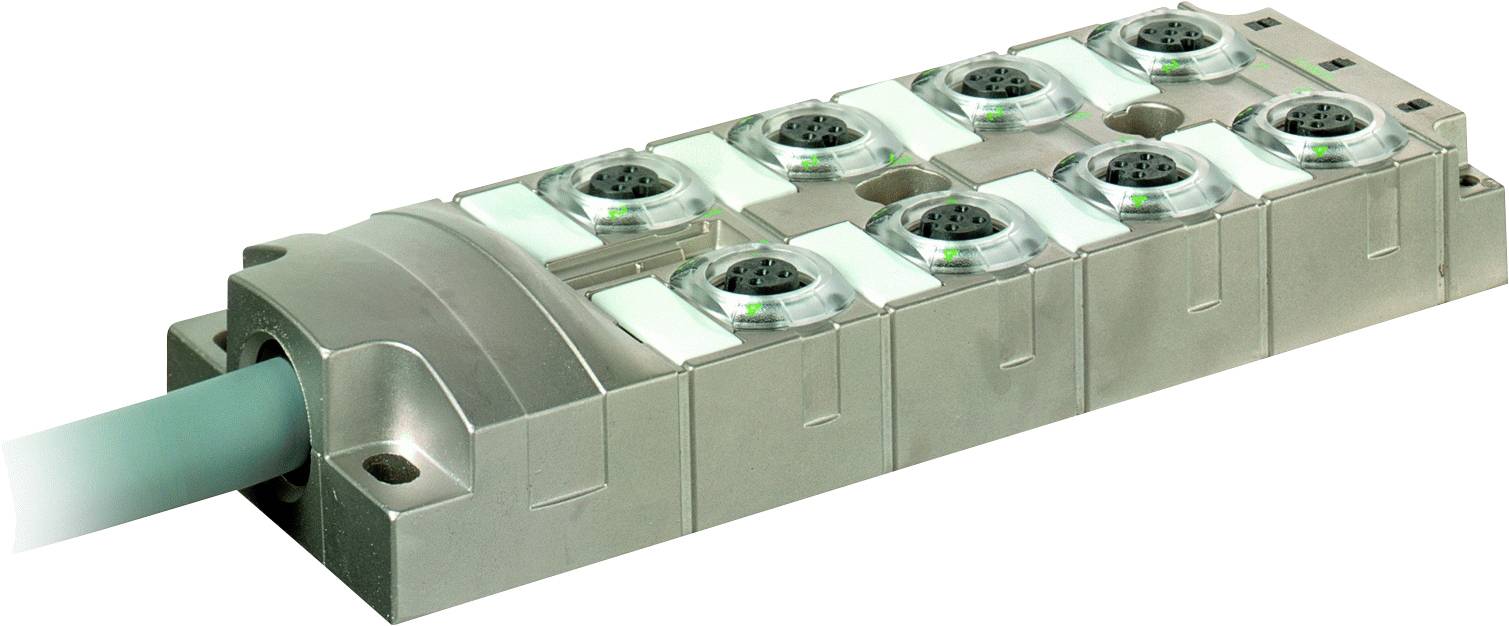

Murrelektronik 8000-58515-4011500 Sensor & actuator box (passive) M12 splitter +steel thread (shielded) 1 pc(s) Piece
Packaging type
Piece
Product type
Sensor & actuator box (passive)
No. of signal spaces
16
No. of splitters
8-way
Type
8000-58515-4011500
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 315.00 / piece)
€ 315.00
incl. VAT
Only available for business customers
14-day return policy includedTechnical specifications
- Wire insulation: TPE (grrs, ws, rtbl, gn, wsgn, ge, brgn, gr, wsge, rs, brr, rt, wsgr, sw, grbr, vi, br, bl, gnge)
- Outside diameter 11.7 mm
- AWG: Similar AWG 22 (0.34 mm²); similar AWG 18 (0.75 mm²)
- Operating voltage max. 125 V AC/DC
- Bending radius (moving): 12× outer-Ø
- Bending radius (fixed): 10× outer-Ø
- Chemical resistance: Good resistance to oil, petrol and chemicals
- Single wire Ø (conductor): 0.1 mm
- Cable number: 401
- Material (core insulation): TPE-E
- Material (conductor): Plain copper braid
- Material (sheath): PUR (UL/CSA)
- Material properties (sheath): CFC, cadmium, silicone and lead-free, matt, low adhesion, machine-grade, abrasion-resistant, hydrolysis and microbes resistant
- Nominal voltage 300/300 V AC
- PIN 1 (+)
- PIN 2: (NC)/(S2)
- PIN 3: (-)
- PIN 4: (NO)/(S1)
- Pin 5: (Ground)
- Test voltage: 2000 V/AC
- Shielding: Via M12 thread
- Shielding (type): Copper braid
- Drag chain values: 5 Mio
- Temperature note: Depending on the connected line
- Travel speed (drag chain): Max. 2 m/s.
- Slot locking: Screw thread (M12×1 mm)
- Resistance (conductor): Max. 53 Ω/km (0.34 mm²); max. 26 Ω/km (0.75 mm²); (20 °C)
- Packaging type
Piece
- Product type
Sensor & actuator box (passive)
- No. of signal spaces
16
- Type
8000-58515-4011500
- Trunk line
No
- No. of splitters
8-way
- Status indicator
No LED
- Signal type
Universal
- Connection
M12 socket
IP65
IP67
IP68
- Max. power rating per slot
4 A
- Total current (direct supply)
7.5 A
- Max. temperature
+90 °C
- Min. temperature
-25 °C
- Connector cross section (max.)
0.75 mm²
- Connector cross section (min.)
0.34 mm²
- Connector type (distribution boxes)
M12 socket
- Case material
Diecast zinc (Ni-plated)
- Total no. of pins
5
- Manufacturer part #
8000-58515-4011500
- Factory colour
Silver
- Content
1 pc(s)
- Number of pins
5
- RoHS-compliant
Yes
- Power rating per I/O
4 A
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2311889 Murrelektronik 8000-58515-4011500 Sensor & actuator box (passive) M12 splitter +steel thread (shielded) 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2311889 Murrelektronik 8000-58515-4011500 Sensor & actuator box (passive) M12 splitter +steel thread (shielded) 1 pc(s) Piece
