Buy Neutrik NBNC75BDD6 NBNC75BDD6 BNC connector Plug, straight 75 Ω 1 pc(s)

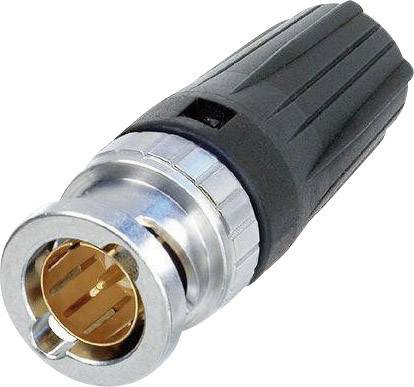

A single BNC plug with a black plastic housing and metallic connector.

Cable category

Belden 1855A

Product type

BNC connector

Connector type

Plug, straight

Impedance

75 Ω

Connection

Crimp

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

86 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 7.55 / piece)

€ 7.55

plus VAT.

Report legal concerns

Highlights & Details

Neutrik NBNC75BDD6 NBNC75BDD6 BNC connector Plug, straight 75 Ω 1 pc(s)

Push-pull locking
Fit for HDTV

Technical specifications

Cable category: Belden 1855A

Product type: BNC connector

Connector type: Plug, straight

Impedance: 75 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 4.30 mm

Manufacturer part #: NBNC75BDD6

Contact material: Gold plated

Material (details): Brass, nickel-plated with full PA6 insulation

Temperature range: -30 - +40 °C

Type: NBNC75BDD6

Seal type: Push-Pull

Type: Rear Twist®

Cable type: Video cable

Frequency: 0 - 3 GHz

Connection: Crimp

Cable diameter (details): 4.3 mm

Voltage: 500 V/AC, rms.

Seal: Push-pull

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 734182 Neutrik NBNC75BDD6 NBNC75BDD6 BNC connector Plug, straight 75 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 734182 Neutrik NBNC75BDD6 NBNC75BDD6 BNC connector Plug, straight 75 Ω 1 pc(s)

Information

Information 734182 Neutrik NBNC75BDD6 NBNC75BDD6 BNC connector Plug, straight 75 Ω 1 pc(s)

Description

The 75 Ω Rear Twist® BNC cable socket offers excellent return loss values and is therefore best suitable for HDTV applications.
The patented RearTwist® clamping sleeve guarantees an easy handling, even for high density of connector and offers the possibility of coloured marking.
Suitable for cable: 1855A.
