Buy Neutrik NBNC75BJP9 NBNC75BJP9 BNC connector Plug, straight 75 Ω 1 pc(s)

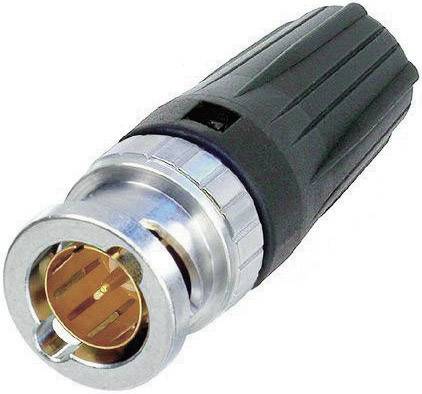

A coaxial BNC connector with a black plastic sheath and metallic tip, suitable for video or network cable connections.

Cross-section of a cable with labels: 'gold-plated earth contact', 'guide groove', 'jacket crimping', 'rewTID strain relief', 'Neutrik BNC'.

1/2

Cable category

Belden 1505F

Product type

BNC connector

Connector type

Plug, straight

Impedance

75 Ω

Connection

Crimp

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

197 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 4.61 / piece)

€ 4.61

plus VAT.

Report legal concerns

Highlights & Details

BNC-Plug connector RearTwist®

Push-pull locking
Fit for HDTV

Technical specifications

Cable category: Belden 1505F

Product type: BNC connector

Connector type: Plug, straight

Impedance: 75 Ω

Connection: Crimp

Content: 1 pc(s)

Cable Ø: 6.30 mm

Manufacturer part #: NBNC75BJP9

Contact material: Gold plated

Material (details): Brass, nickel-plated with full PA6 insulation

Temperature range: -30 - +40 °C

Type: NBNC75BJP9

Seal type: Bayonet

Type: RearTwist®

Cable type: RG 59-/video cable

Type: NBNC 75 BJP 9

Frequency: 0 - 3 GHz

Connection: Crimp

Cable diameter (details): 4-8 mm

Voltage: 500 V/AC, rms.

Seal: Bayonet

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 746650 Neutrik NBNC75BJP9 NBNC75BJP9 BNC connector Plug, straight 75 Ω 1 pc(s)

User & Safety Instructions

User & Safety Instructions 746650 Neutrik NBNC75BJP9 NBNC75BJP9 BNC connector Plug, straight 75 Ω 1 pc(s)

Information

Information 746650 Neutrik NBNC75BJP9 NBNC75BJP9 BNC connector Plug, straight 75 Ω 1 pc(s)

Description

The 75 Ω RearTwist® BNC cable socket offers excellent return loss values and is therefore best suitable for HDTV applications.
The patented RearTwist® clamping sleeve guarantees an easy handling, even for high density of connector and offers the possibility of coloured marking.
Suitable for cable: Belden 1505F.
