Name: O/L relay Siemens 3RU2116-0FB0 1 pc(s)
Brand: Siemens
SKU: 1730542
Availability: InStock

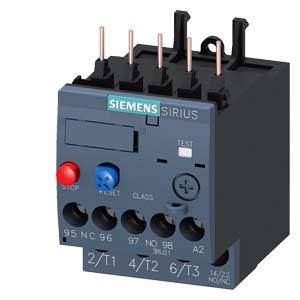

'Siemens SIRIUS Motor Protection Relay, featuring test button, red stop and blue reset button, with electrical connections on top.'

An electrical control cabinet with an open door reveals various electronic components and wiring for industrial control systems.

Diagram of a thermal overload relay circuit with accessory parts. Numbered components: carrier, overload relay, RESET units, and push button.

Circuit diagram shows electrical circuit with buttons 'TEST', 'RESET' and 'STOP'; numbers 2/1T1, 4/1T2, 6/1T3, 95, 96, 97, A2, 14/2.

'Technical drawing of an electronic device with connections and technical specifications, dimensions indicated in mm.'

A circuit diagram of a Siemens SIRIUS device with 'STOP' and 'RESET' buttons, test button, and connections for electrical wiring.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-0FB0

Type

S00

Operating voltage

690 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 3 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-0FB0

Type: S00

Functions: Overload

Operating voltage: 690 V

Amperage adjustment range (min.): 0.35 A

Amperage adjustment range (max.): 0.50 A

Adjustment range (amperage): 0.35 - 0.50 A

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 76 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 76 x 70 mm

Content: 1 pc(s)

Weight: 0.1518 kg

AWG max.: 12

AWG (min.): 20

Nominal current: 0.5 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730542 O/L relay Siemens 3RU2116-0FB0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730542 O/L relay Siemens 3RU2116-0FB0 1 pc(s)

Description

Overload relay 0.55...0.80 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset

Description

Overload relay 0.55...0.80 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
