Name: O/L relay Siemens 3RU2116-0GC0 1 pc(s)
Brand: Siemens
SKU: 1730548
Availability: BackOrder

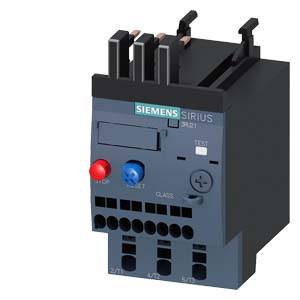

A Siemens electronic contactor, Sirius 3R model. It has connection contacts at the top and control buttons in red and blue.

An open electrical cabinet with multiple cables, switches, and electronic components.

Illustration of an electrical system with components: overload relay, wire trigger, reset mechanisms, and push buttons, numbered.

Diagram of an electrical switch with the positions 'TEST', 'RESET' and 'STOP'. Terminal designations: 2/T1, 4/T2, 6/T3.

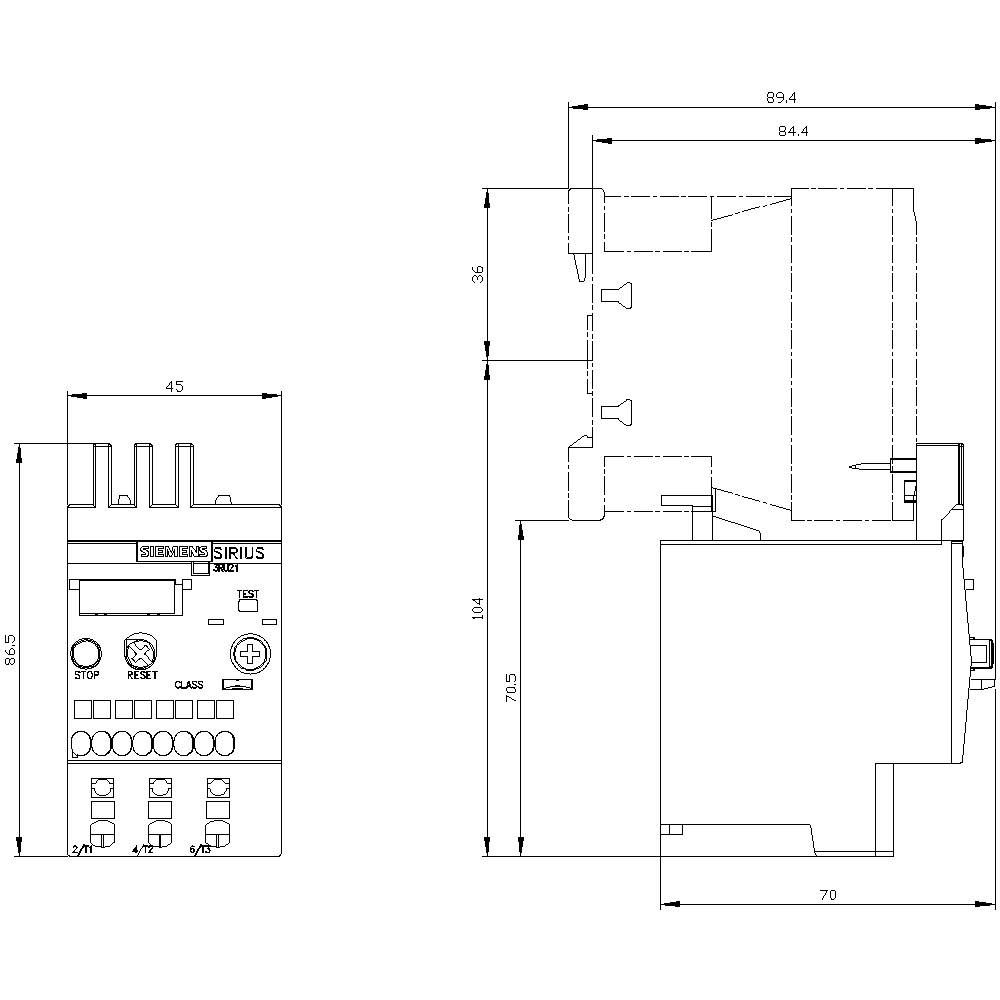

Technical drawing of a Siemens SIRIUS switching device with dimensional specifications, front view on the left, side view on the right.

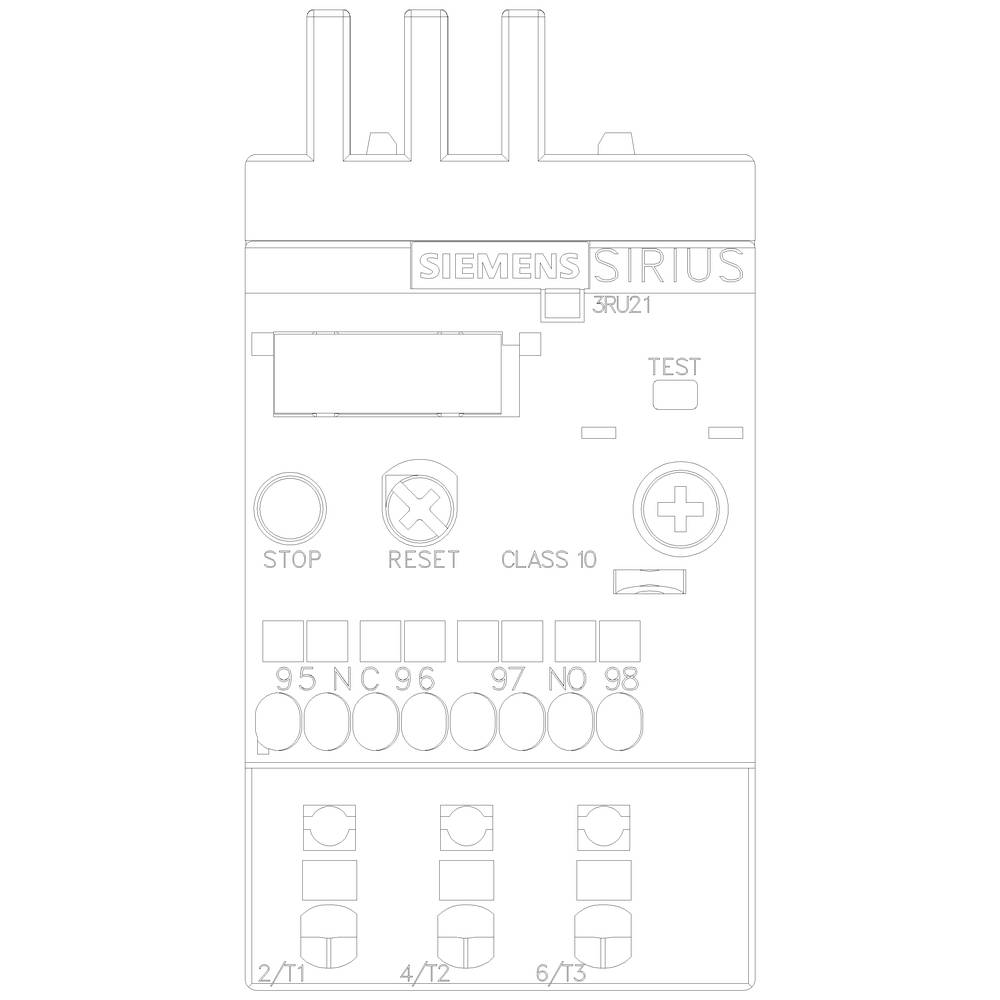

Drawing of a Siemens Sirius contactor, Model 3RU21, with buttons and connections. Functions: Stop, Reset, Test and Settings.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-0GC0

Type

S00

Features

Automatic/manual switch

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-0GC0

Type: S00

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 0.45 A

Amperage adjustment range (max.): 0.63 A

Adjustment range (amperage): 0.45 - 0.63 A

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 87 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 87 x 70 mm

Content: 1 pc(s)

Weight: 167.00

AWG max.: 12

AWG (min.): 20

Nominal current: 0.63 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730548 O/L relay Siemens 3RU2116-0GC0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730548 O/L relay Siemens 3RU2116-0GC0 1 pc(s)

Description

Overload relay 0.70...1.0 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset

Description

Overload relay 0.70...1.0 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
