Name: O/L relay Siemens 3RU2116-1DB1 1 pc(s)
Brand: Siemens
SKU: 1706066
Availability: InStock

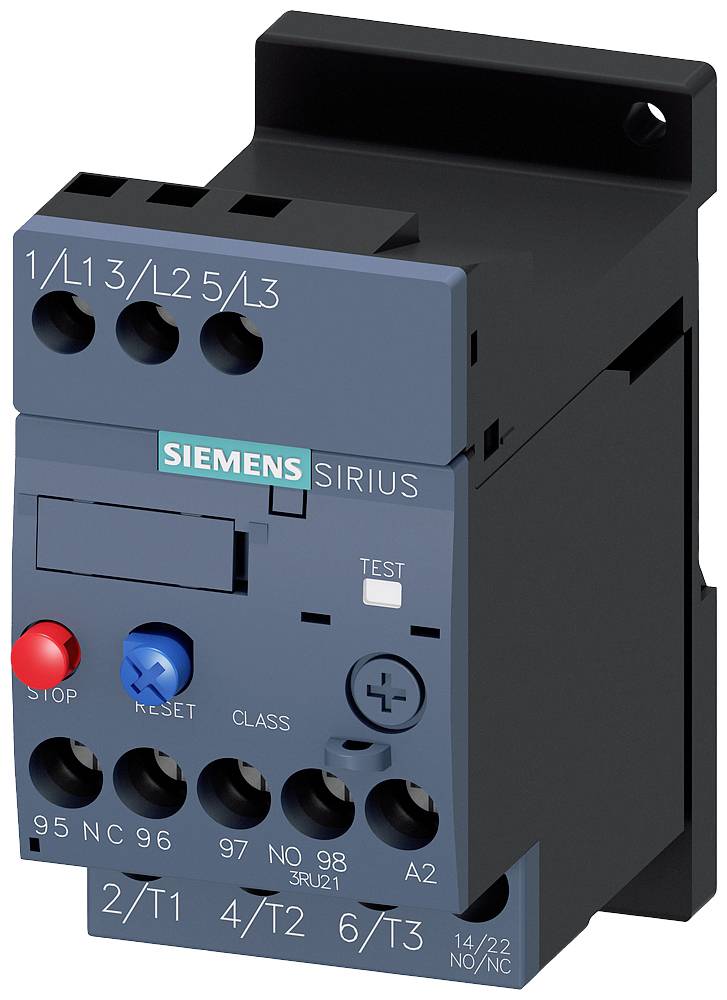

Siemens electrical contactor from the Sirius series, with a grey-blue housing, featuring 'Stop' and 'Reset' buttons.

An open electrical cabinet with various electronic components and cables arranged in an organised structure.

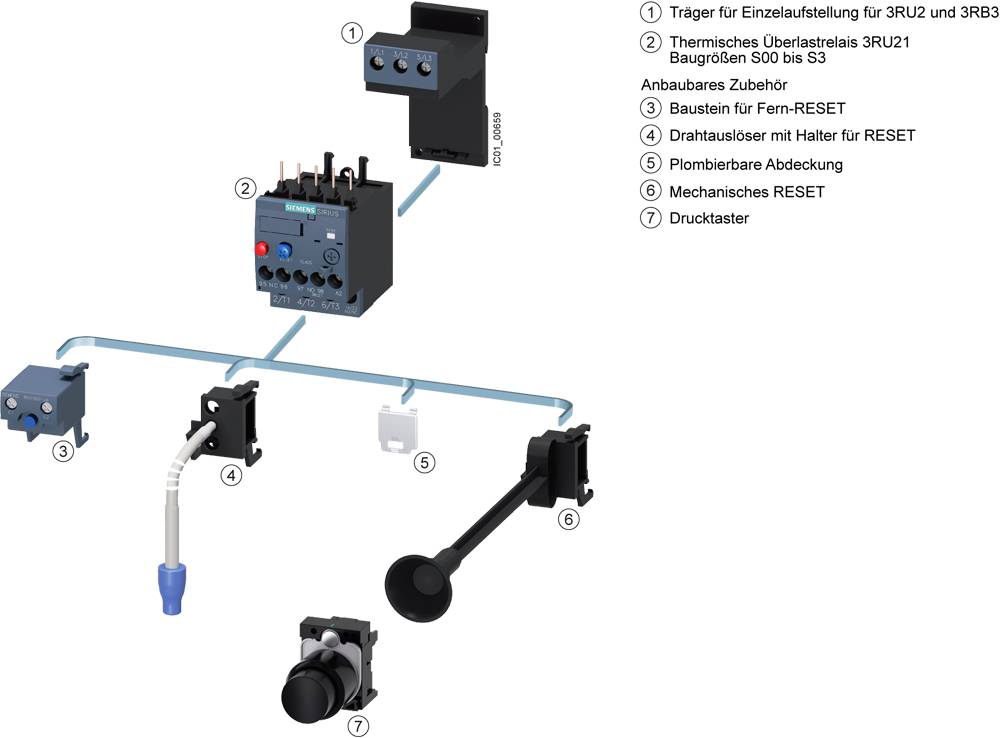

'Diagram of a switch with mechanical reset, push button and thermal overload relay. Includes accessories for remote RESET and wire trigger.'

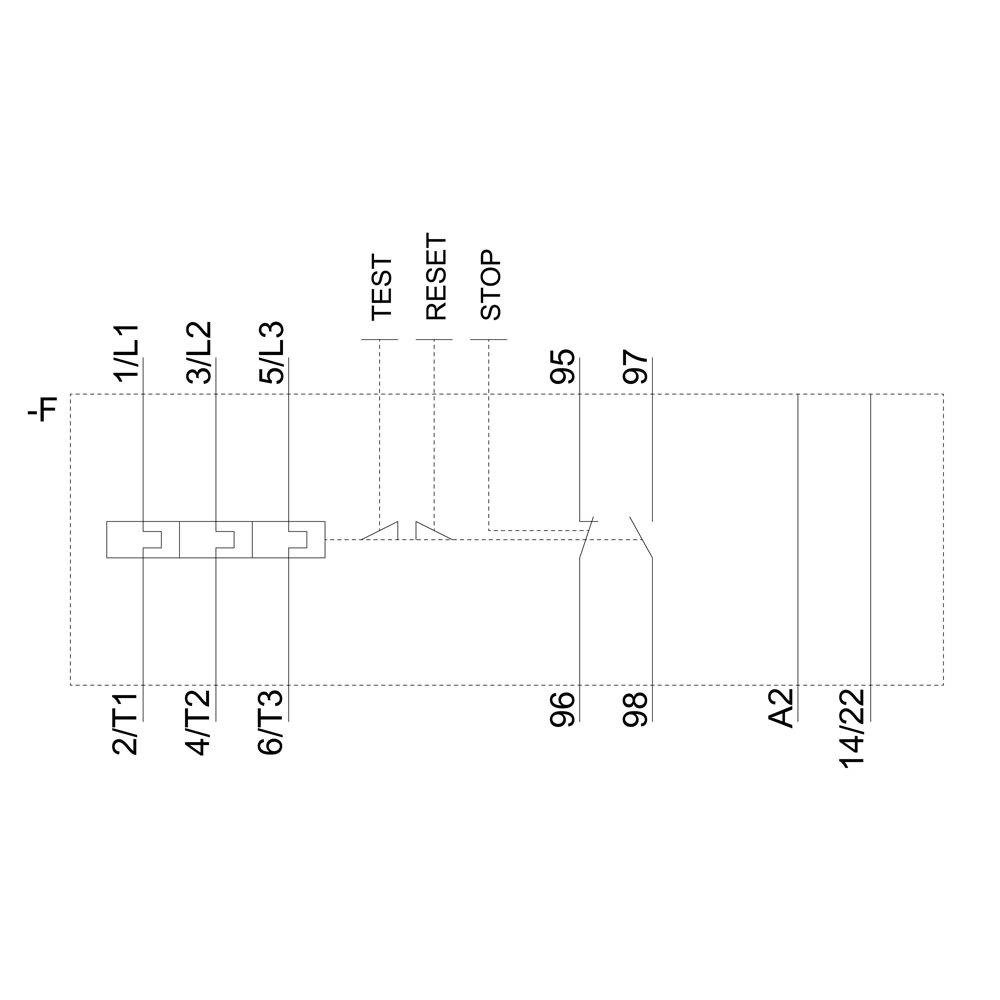

Circuit diagram shows switches with labels for 'TEST', 'RESET', 'STOP'. Connections and connection details depicted.

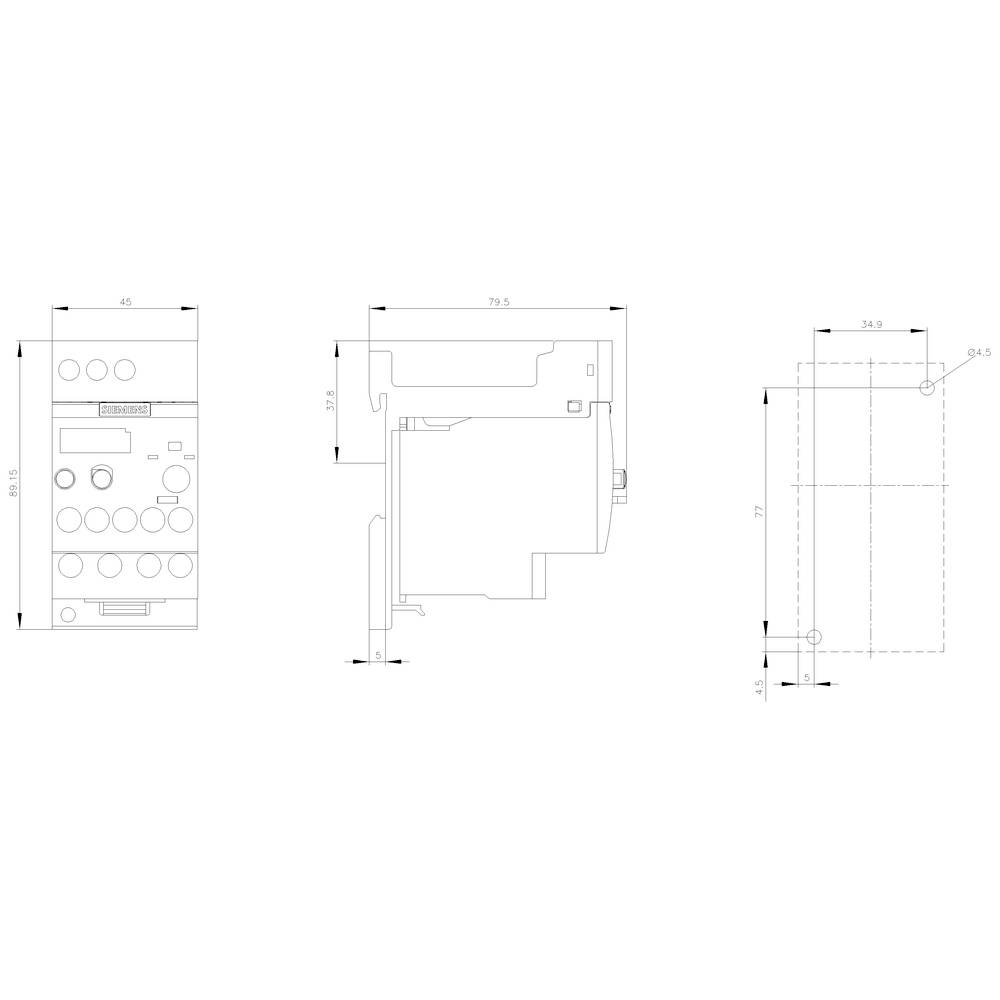

Technical drawing of a device with front, side, and top views, showing dimensions and construction details.

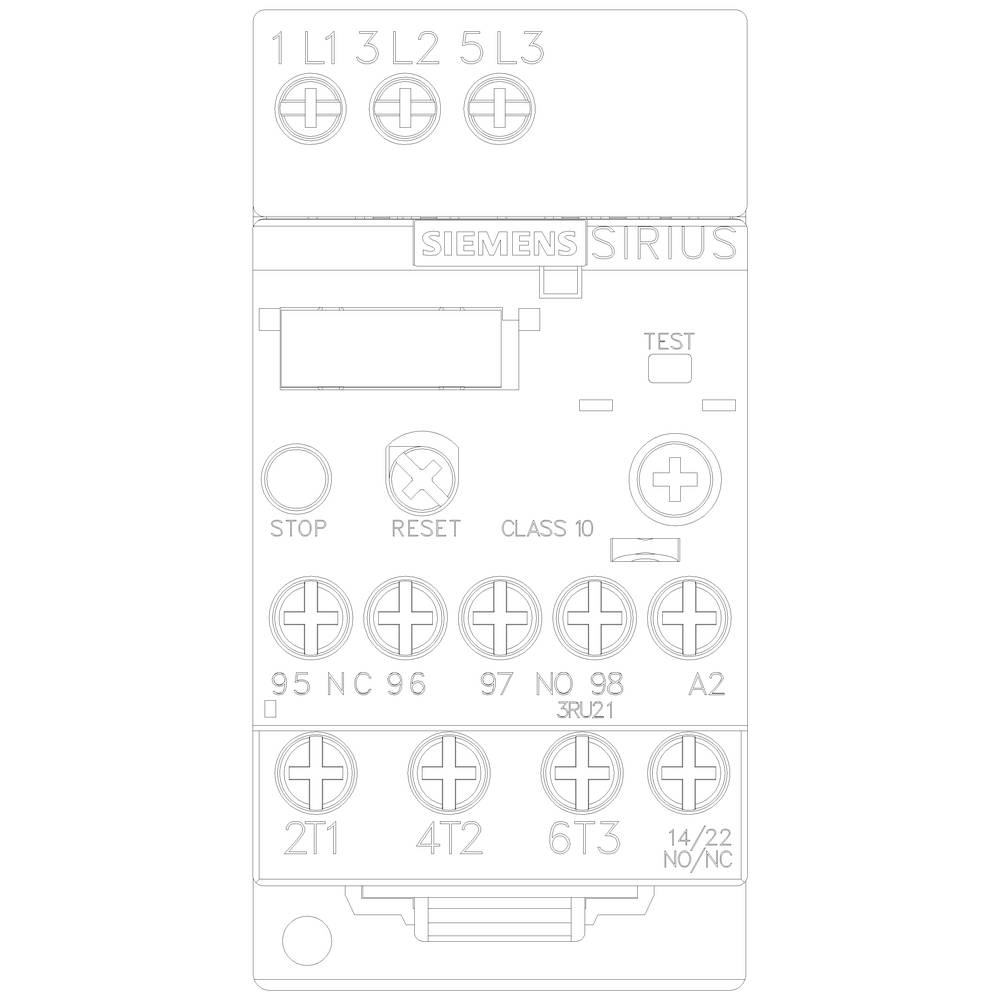

'Siemens Sirius' thermal overload relay with top and bottom connections. Contains 'Stop', 'Reset', and 'Test' buttons. Markings for connections and class ID visible.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Switching voltage (max.)

690 V AC

Type

3RU2116-1DB1

Type

S00

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

THERM. OVERLOAD RELAY 3.5 - 5.0 A

Our service for you

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-1DB1

Type: S00

Functions: Overload

Operating voltage: 690 V

Amperage adjustment range (min.): 2.2 A

Amperage adjustment range (max.): 3.2 A

Adjustment range (amperage): 2.2 - 3.2 A

Switching voltage (max.): 690 V AC

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 89 mm

Depth: 80 mm

Dim: (W x H x D) 45 x 89 x 80 mm

Content: 1 pc(s)

AWG max.: 12

AWG (min.): 20

Nominal current: 3.2 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1706066 O/L relay Siemens 3RU2116-1DB1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1706066 O/L relay Siemens 3RU2116-1DB1 1 pc(s)

Description

Overload relay 3.5...5.0 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset

Description

Overload relay 3.5...5.0 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
