Name: O/L relay Siemens 3RU2116-1FB0 1 pc(s)
Brand: Siemens
SKU: 1730570
Availability: InStock

A Siemens Sirius overload relay with multiple connections and buttons for control and adjustment, including a red 'STOP' button.

An open electrical cabinet filled with electrical components and cables. On the left, various modules and terminal strips are located.

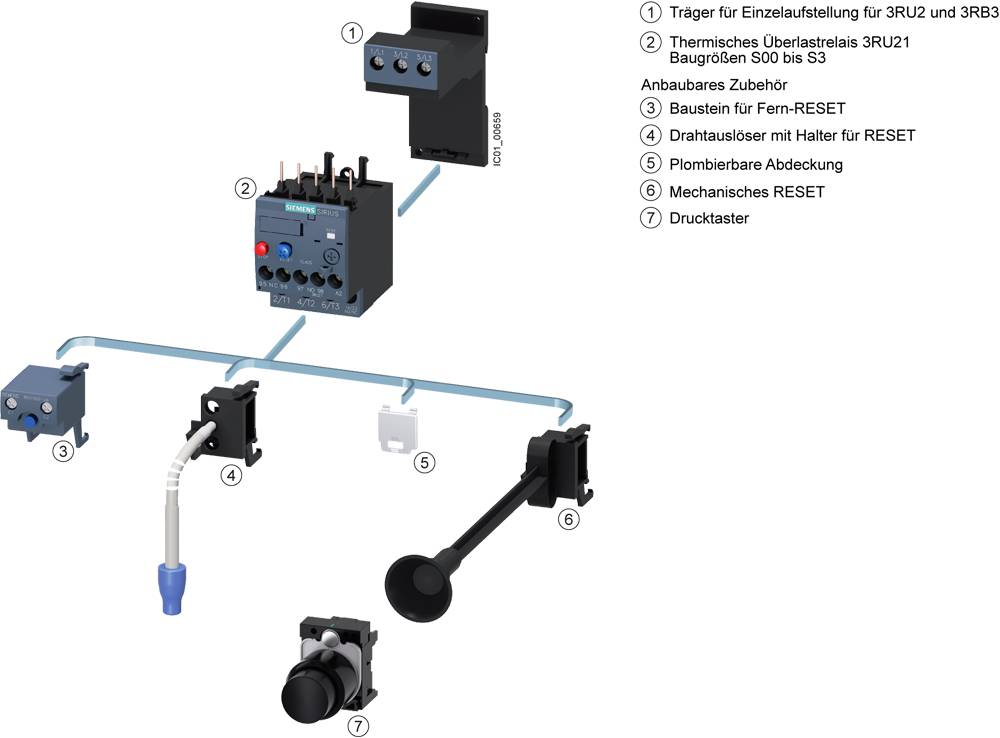

Circuit diagram with seven numbered components of an electrical system, including thermal overload relay and mechanical RESET.

Diagram of a Switchgear: Connections between Terminals 2/T1, 4/T2, 6/T3, with Buttons 'TEST', 'RESET', 'STOP', and Terminals 95, 96, 97, A2, 14/22.

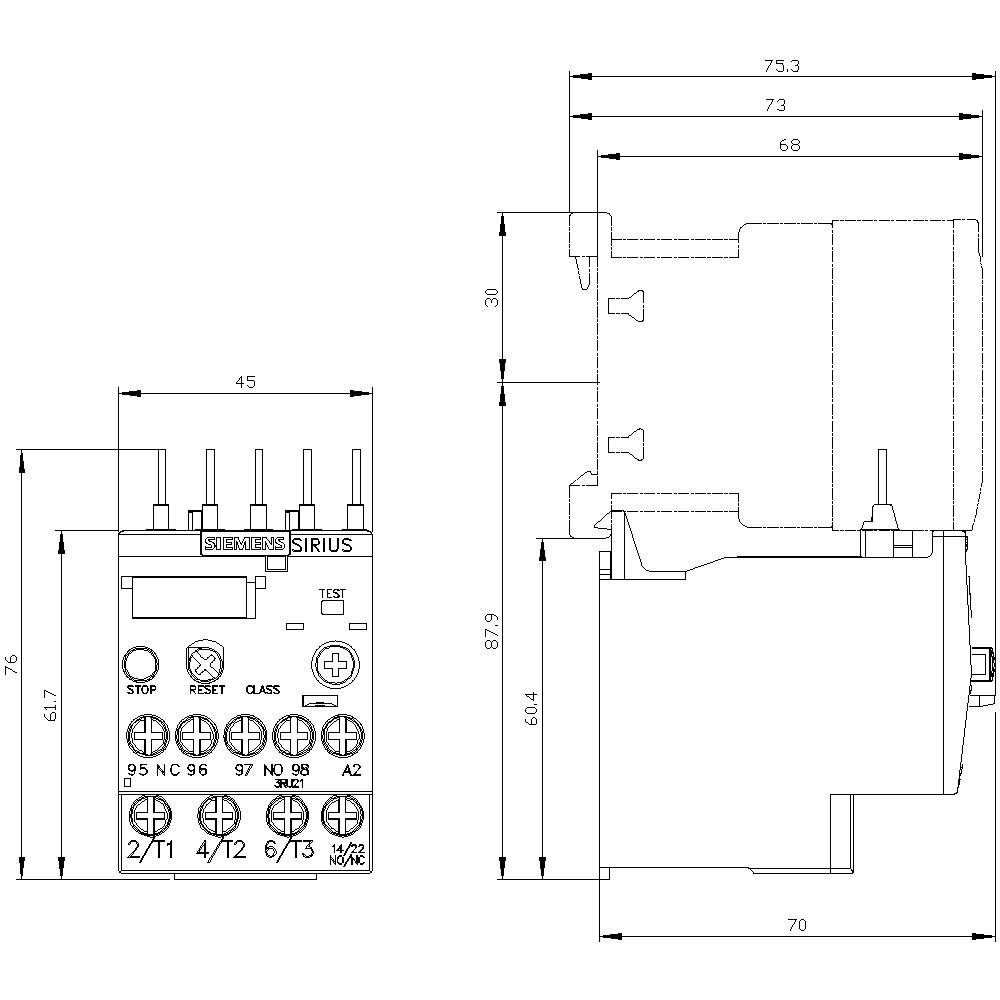

'Technical drawing of a SIRIUS switching device with precise dimensions and electrical connections. Measurements in millimetres.'

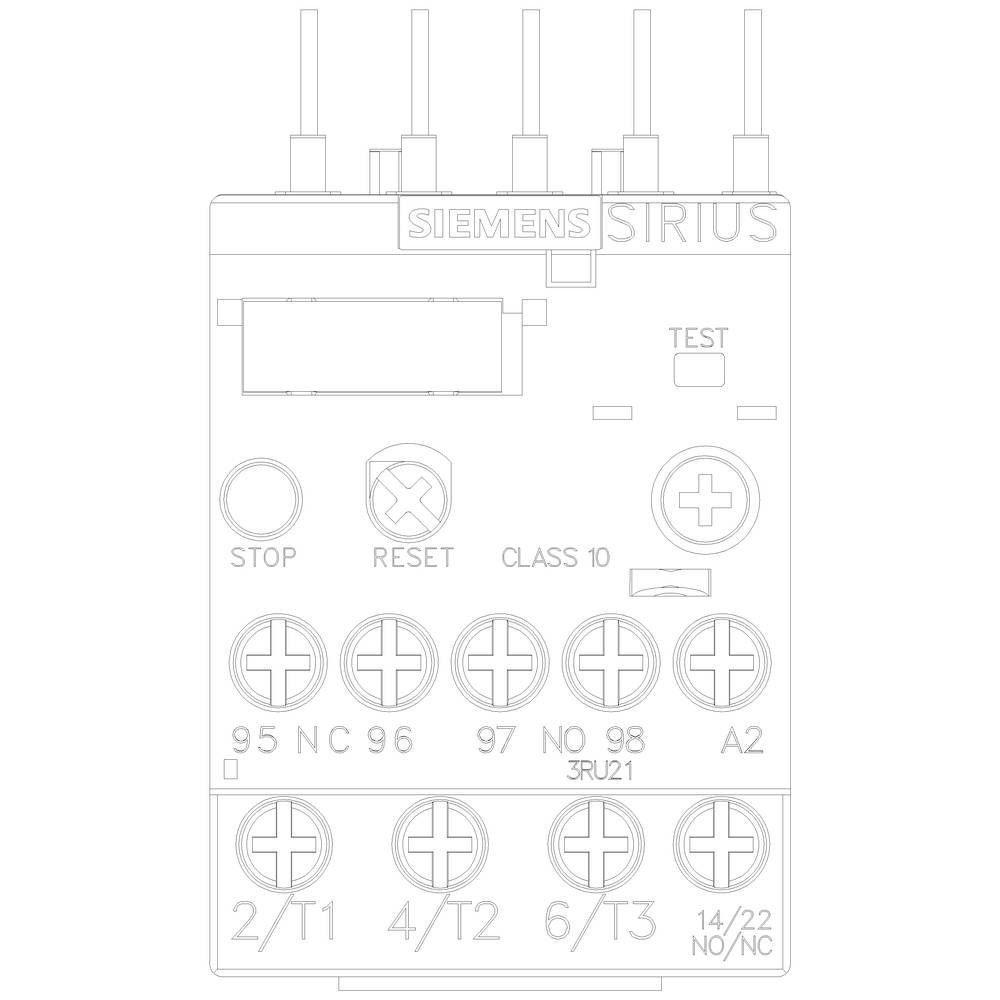

'Siemens Sirius JRU21 protection type', shows control elements with stop/reset buttons and connection labelling for switching control.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-1FB0

Type

S00

Operating voltage

690 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-1FB0

Type: S00

Functions: Overload

Operating voltage: 690 V

Amperage adjustment range (min.): 3.5 A

Amperage adjustment range (max.): 5.0 A

Adjustment range (amperage): 3.5 - 5.0 A

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 76 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 76 x 70 mm

Content: 1 pc(s)

Weight: 0.1441 kg

AWG max.: 12

AWG (min.): 20

Nominal current: 5 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730570 O/L relay Siemens 3RU2116-1FB0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730570 O/L relay Siemens 3RU2116-1FB0 1 pc(s)

Description

Overload relay 5.5...8.0 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset

Description

Overload relay 5.5...8.0 A for motor protection Size S00, CLASS 10 Stand-alone installation Main circuit: Screw Auxiliary circuit: Screw Manual-Automatic-Reset
