Name: O/L relay Siemens 3RU2116-1FB1 1 pc(s)
Brand: Siemens
SKU: 1730571
Availability: BackOrder

A Siemens SIRIUS contactor, three-pole, with red and blue buttons for 'Stop' and 'Reset'. Suitable for industrial control systems.

An open electrical cabinet reveals multiple levels with switchgear, cables, and fuses used for electrical control systems.

'Diagram of the installation of a thermal overload relay with components such as reset unit, push button, and wiring accessories.'

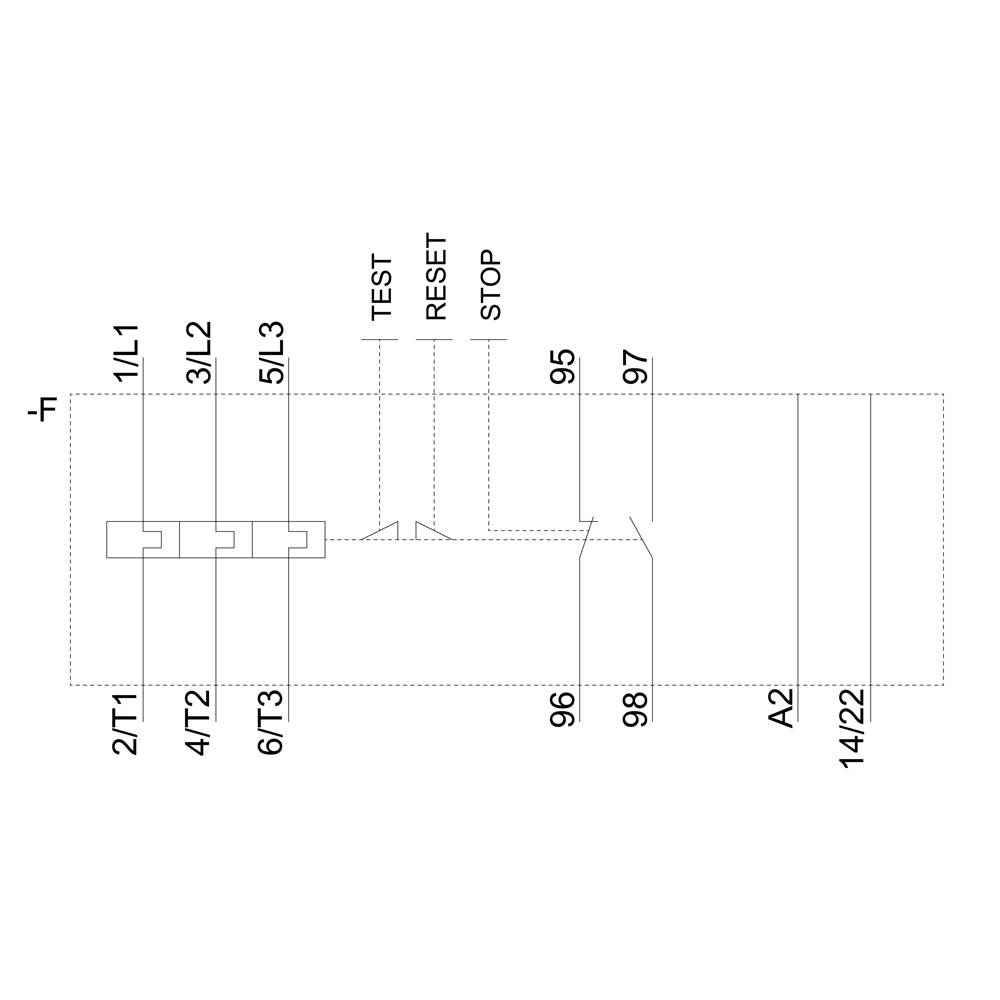

Sketch plan shows the counting method with division into sections: 1/T1, 3/L2, TEST, RESET, STOP, numbered from 95 to 98.

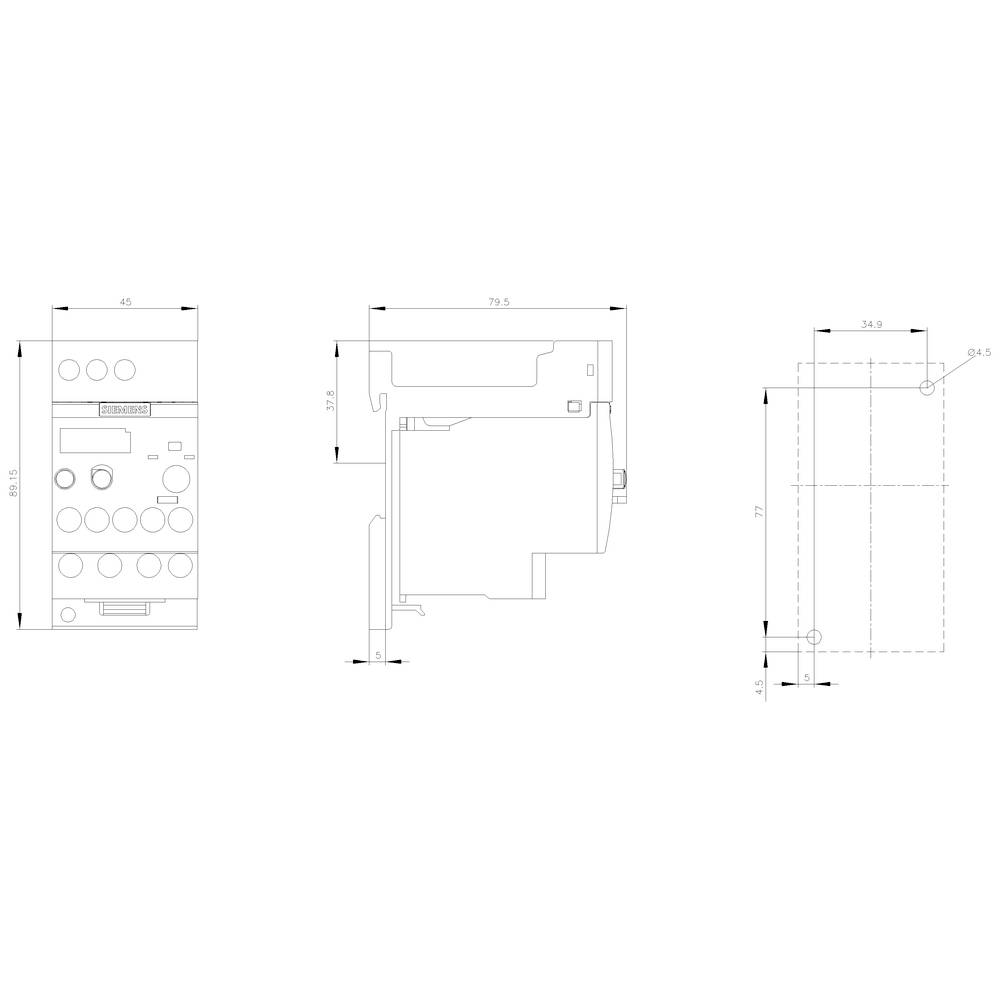

Technical drawing of a device, showing front, side, and top views with precise dimensions in millimetres.

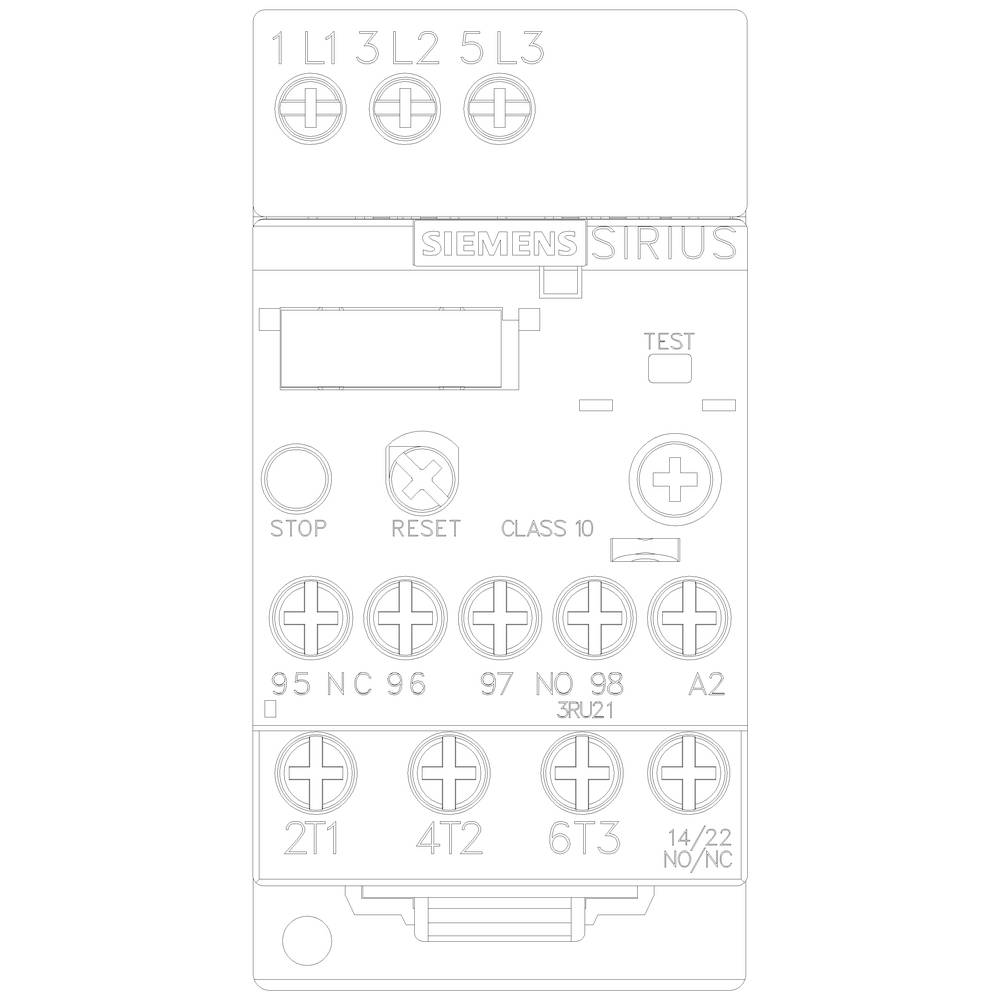

An electrical control module with connections, 'Stop' and 'Reset' buttons, and a test button. Labelled with 'Siemens Sirius'.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-1FB1

Type

S00

Features

Automatic/manual switch

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

THERM. OVERLOAD RELAY 5.5 - 8.0 A

Our service for you

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-1FB1

Type: S00

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 3.5 A

Amperage adjustment range (max.): 5.0 A

Adjustment range (amperage): 3.5 - 5.0 A

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 89 mm

Depth: 80 mm

Dim: (W x H x D) 45 x 89 x 80 mm

Content: 1 pc(s)

AWG max.: 12

AWG (min.): 20

Nominal current: 5 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 1730571 O/L relay Siemens 3RU2116-1FB1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730571 O/L relay Siemens 3RU2116-1FB1 1 pc(s)

Description

Overload relay 5.5...8.0 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset

Description

Overload relay 5.5...8.0 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Spring-type terminal Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
