Name: O/L relay Siemens 3RU2116-1JC0 1 pc(s)
Brand: Siemens
SKU: 1730705
Availability: BackOrder

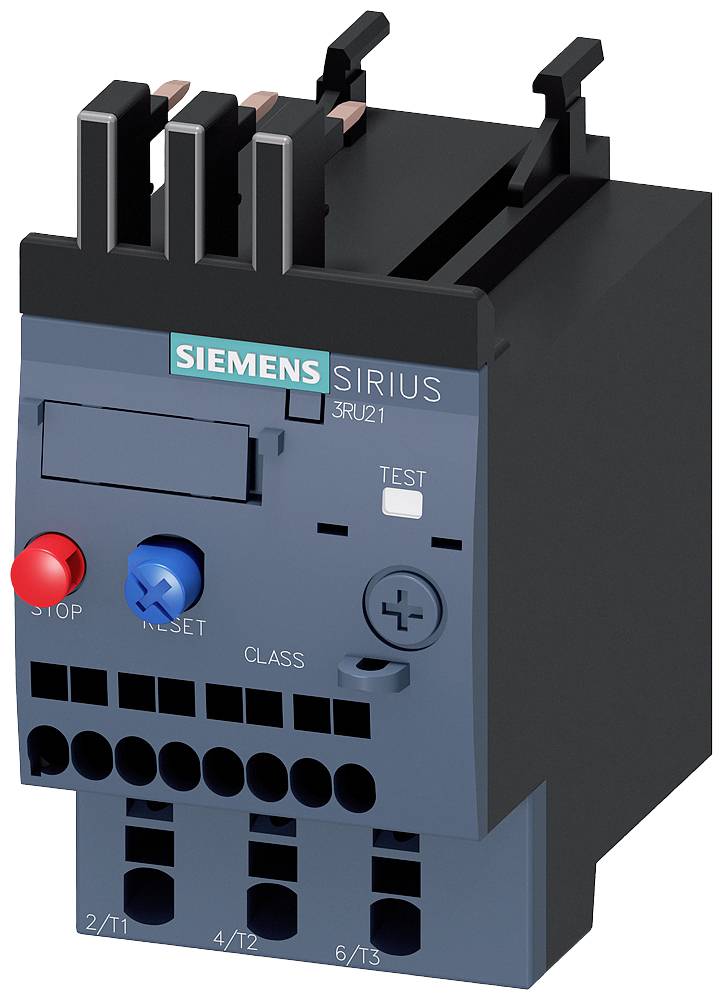

A Siemens Sirius overload relay with test button and two reset buttons. Connections are located at the bottom.

An open electrical cabinet with electronic components and cables reveals the internal arrangement of technical devices.

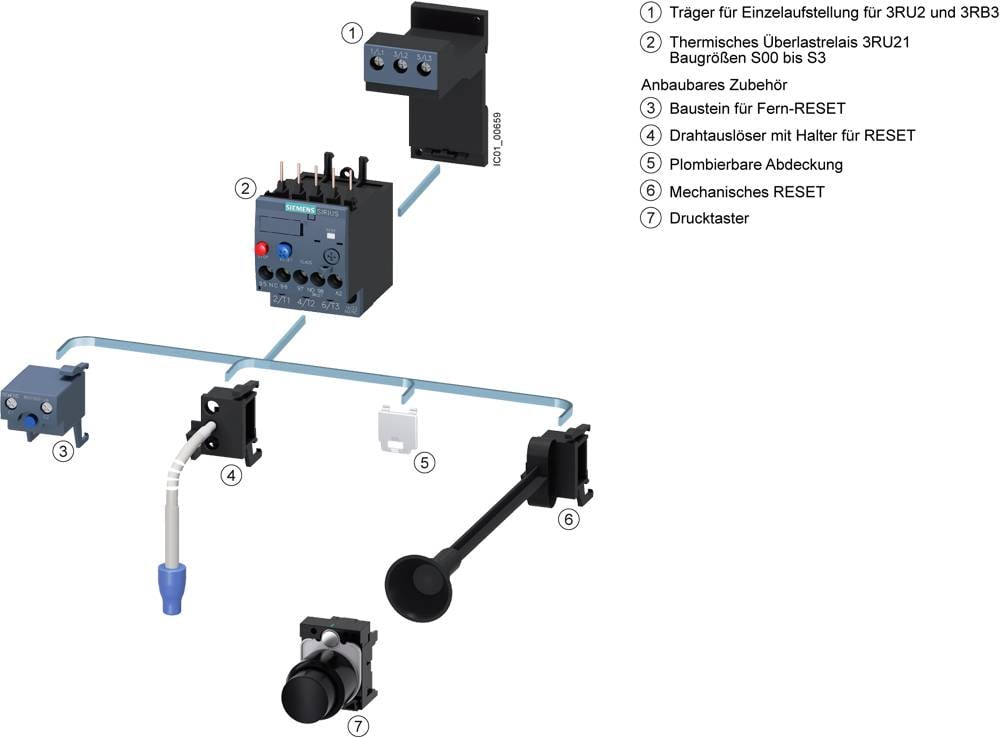

Diagram shows accessories and components of a thermal overload relay. Details: RESET mechanisms, push buttons, mountings.

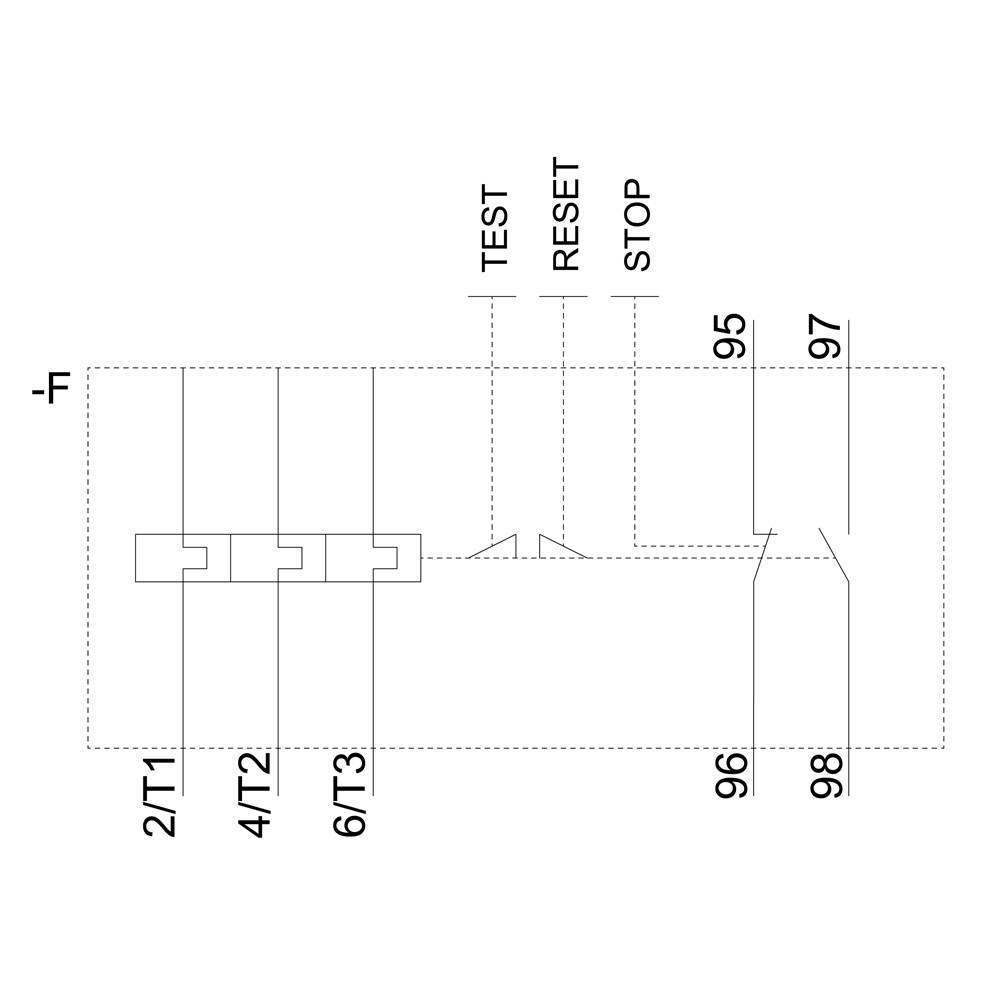

Diagram of a circuit plan with labels 'TEST', 'RESET', 'STOP', connected with numbered lines 2/T1, 4/T2, 6/T3.

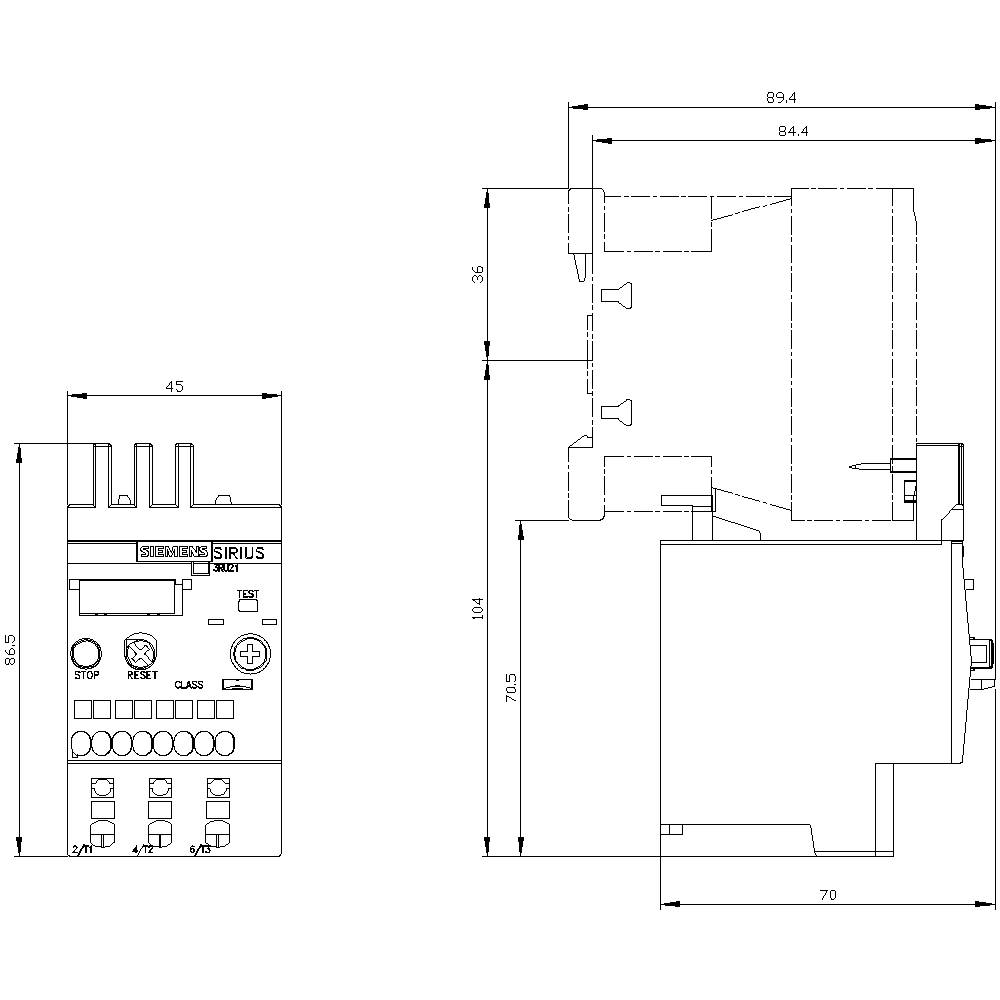

Technical drawing of an electrical switchgear with dimensions. Left: front view showing buttons and connections, right: side view.

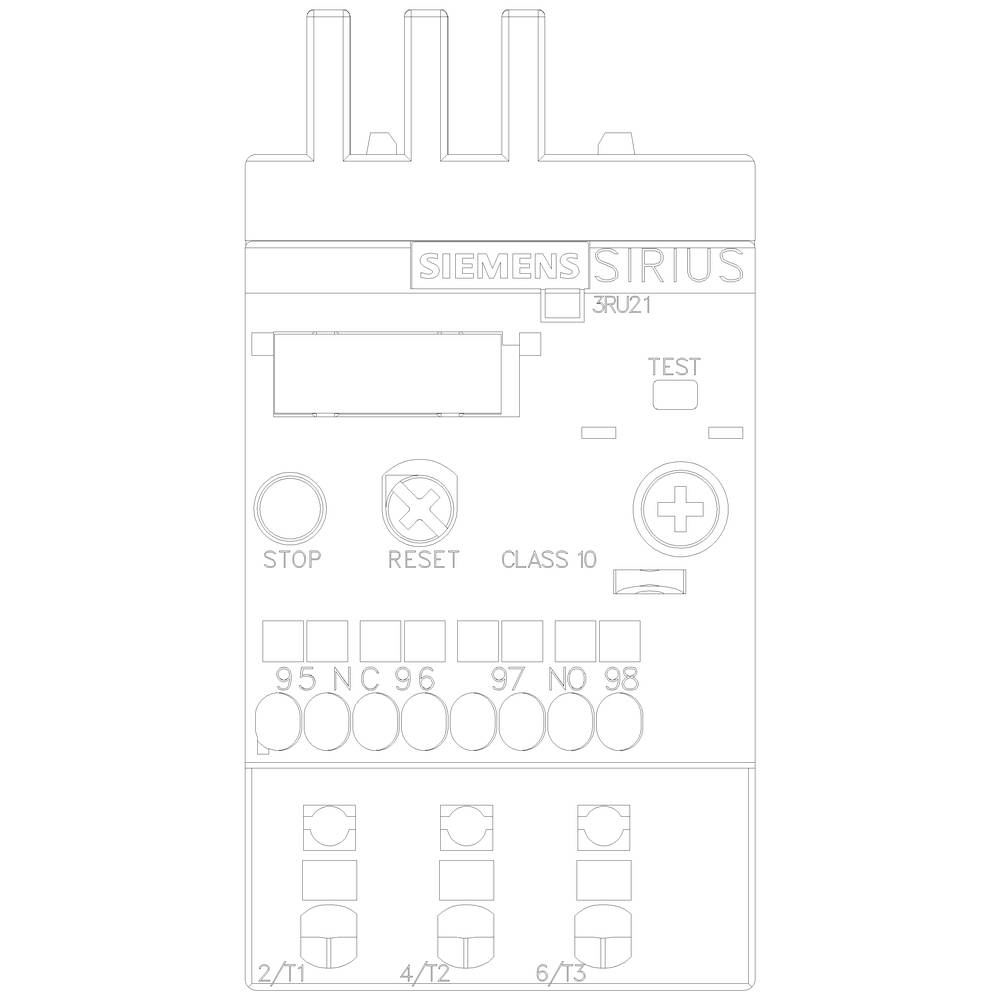

Illustration of a Siemens Sirius motor protection switch 3RU21 with 'Stop' and 'Reset' buttons and wiring connections.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-1JC0

Type

S00

Operating voltage

690 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-1JC0

Type: S00

Functions: Overload

Operating voltage: 690 V

Amperage adjustment range (min.): 7.0 A

Amperage adjustment range (max.): 10 A

Adjustment range (amperage): 7.0 - 10 A

Connection: Spring-loaded connector

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 87 mm

Depth: 70 mm

Dim: (W x H x D) 45 x 87 x 70 mm

Content: 1 pc(s)

Weight: 0.1848 kg

AWG max.: 12

AWG (min.): 20

Nominal current: 10 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Spring clamp connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730705 O/L relay Siemens 3RU2116-1JC0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730705 O/L relay Siemens 3RU2116-1JC0 1 pc(s)

Description

Overload relay 11...16 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset

Description

Overload relay 11...16 A for motor protection Size S00, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset
