Name: O/L relay Siemens 3RU2116-4AB1 1 pc(s)
Brand: Siemens
SKU: 1730708
Availability: BackOrder

O/L relay Siemens 3RU2116-4AB1 1 pc(s)-0

An open electrical cabinet, filled with various electrical components and cables.

'Schematic of an electrical installation with mechanical RESET and accessories. Contains labels for various components and functions.'

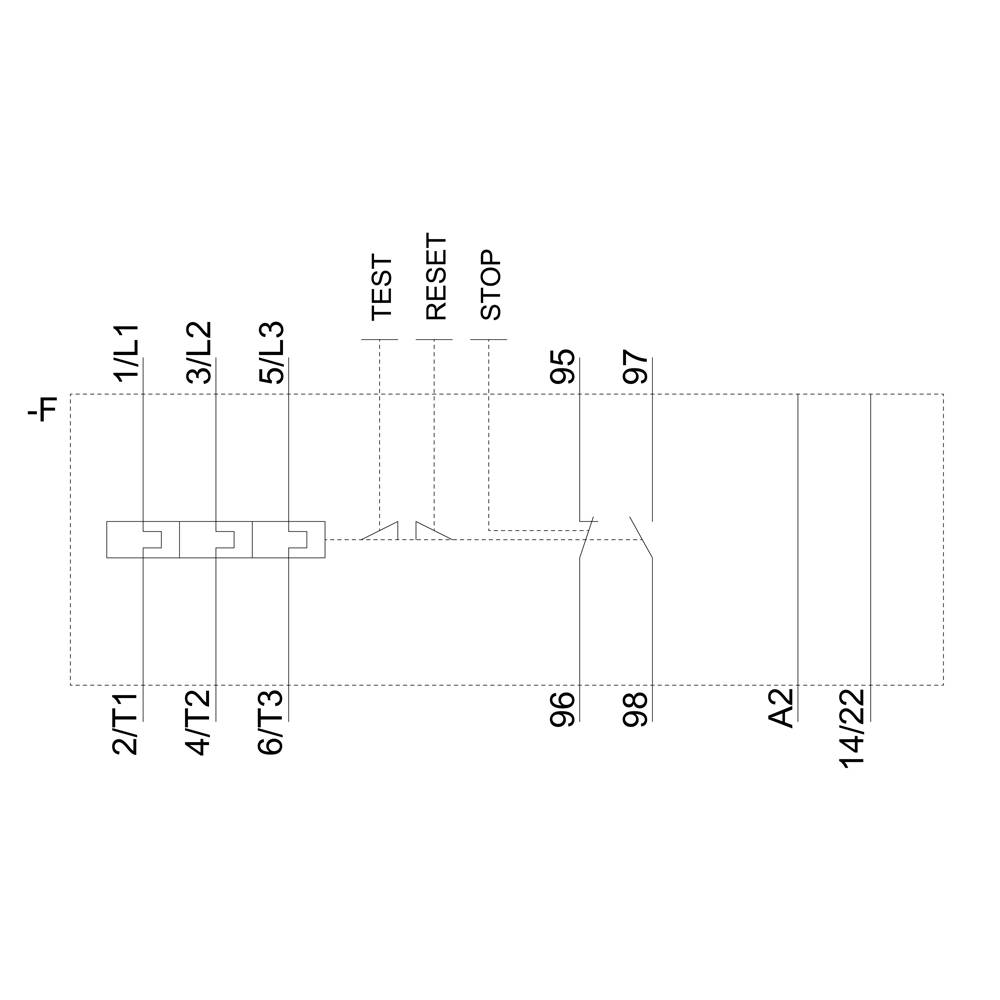

Technical drawing of an electrical circuit with labels: 'TEST', 'RESET', 'STOP', connections such as '1/L1', '2/T1', switch symbols.

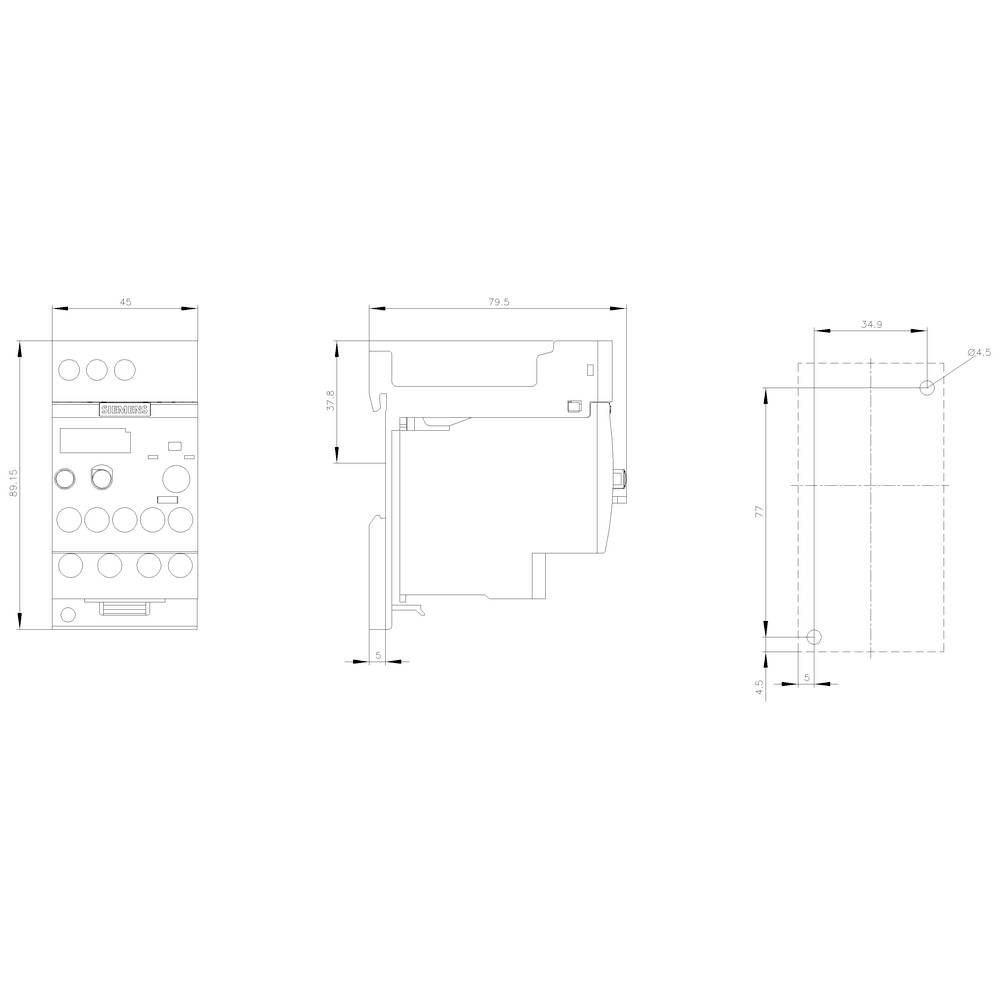

Technical drawing of an electronic device with dimensions: Width 48.5 mm, Height 100.5 mm, Depth 72.5 mm.

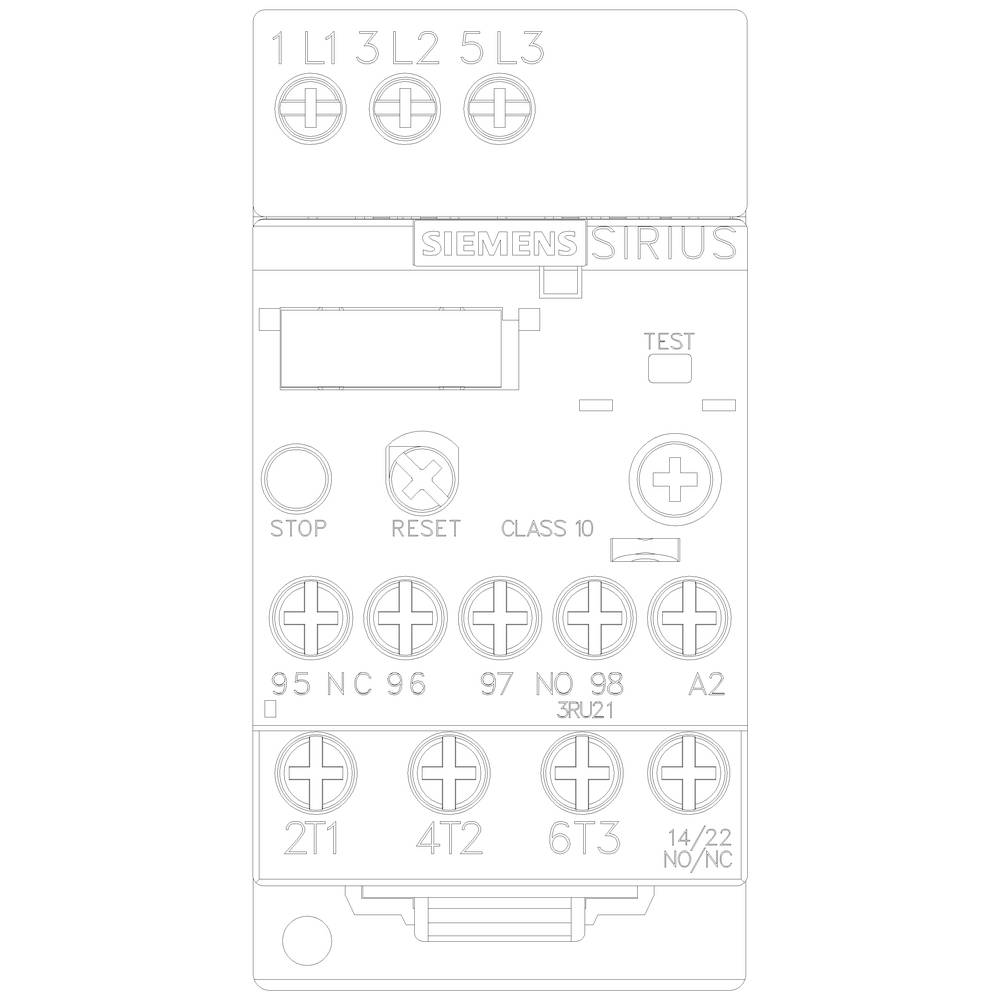

'Siemens Sirius contactor with terminal connections at the top and bottom, reset and test button in the centre, model number bottom right.'

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2116-4AB1

Type

S00

Operating voltage

690 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2116-4AB1

Type: S00

Functions: Overload

Operating voltage: 690 V

Amperage adjustment range (min.): 11 A

Amperage adjustment range (max.): 16 A

Adjustment range (amperage): 11 - 16 A

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 89 mm

Depth: 80 mm

Dim: (W x H x D) 45 x 89 x 80 mm

Content: 1 pc(s)

AWG max.: 12

AWG (min.): 20

Nominal current: 16 A

Cross section (flexible) (max.): 2.5 mm²

Cross section (inflexible) (max.): 4 mm²

Cross section (flexible) (min.): 0.5 mm²

Cross section (inflexible) (min.): 0.5 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730708 O/L relay Siemens 3RU2116-4AB1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730708 O/L relay Siemens 3RU2116-4AB1 1 pc(s)

Description

Overload relay 2.8...4.0 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset

Description

Overload relay 2.8...4.0 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset
