Name: O/L relay Siemens 3RU2126-1DB0 1 pc(s)
Brand: Siemens
SKU: 1730712
Availability: BackOrder

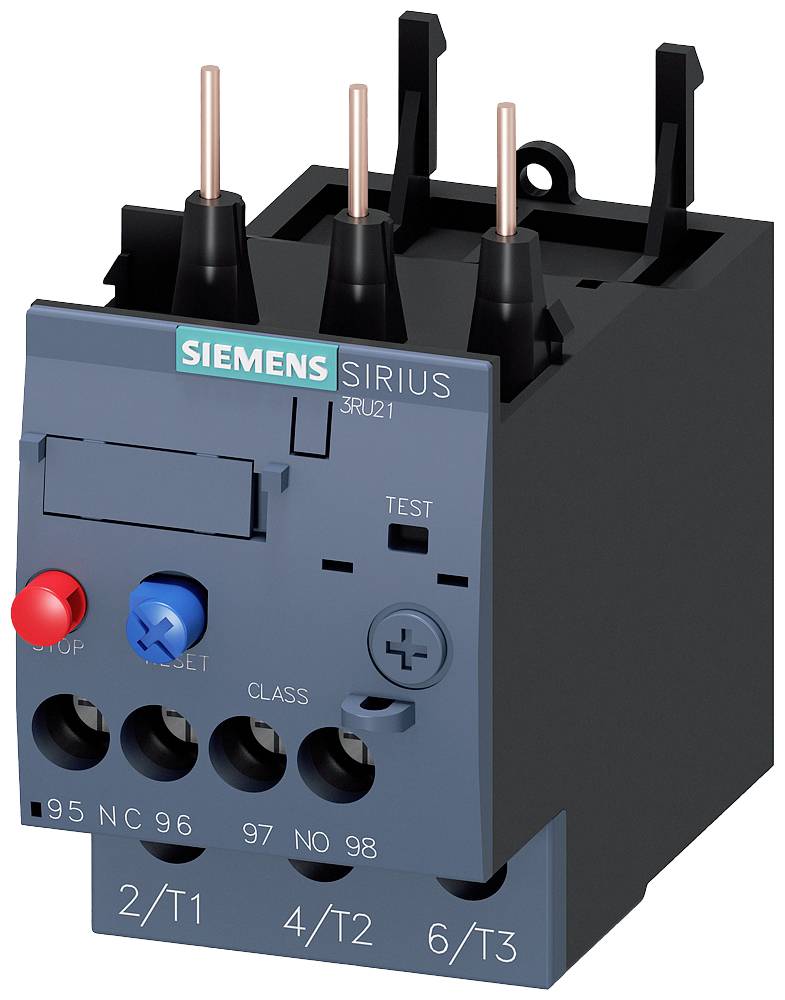

Industrial relay, Siemens Sirius 3RU21, with three connections on top and three connections on bottom. Contains blue and red button.

An open electrical cabinet with visible cables, switches, and electronic components used for electricity distribution.

O/L relay Siemens 3RU2126-1DB0 1 pc(s)-2

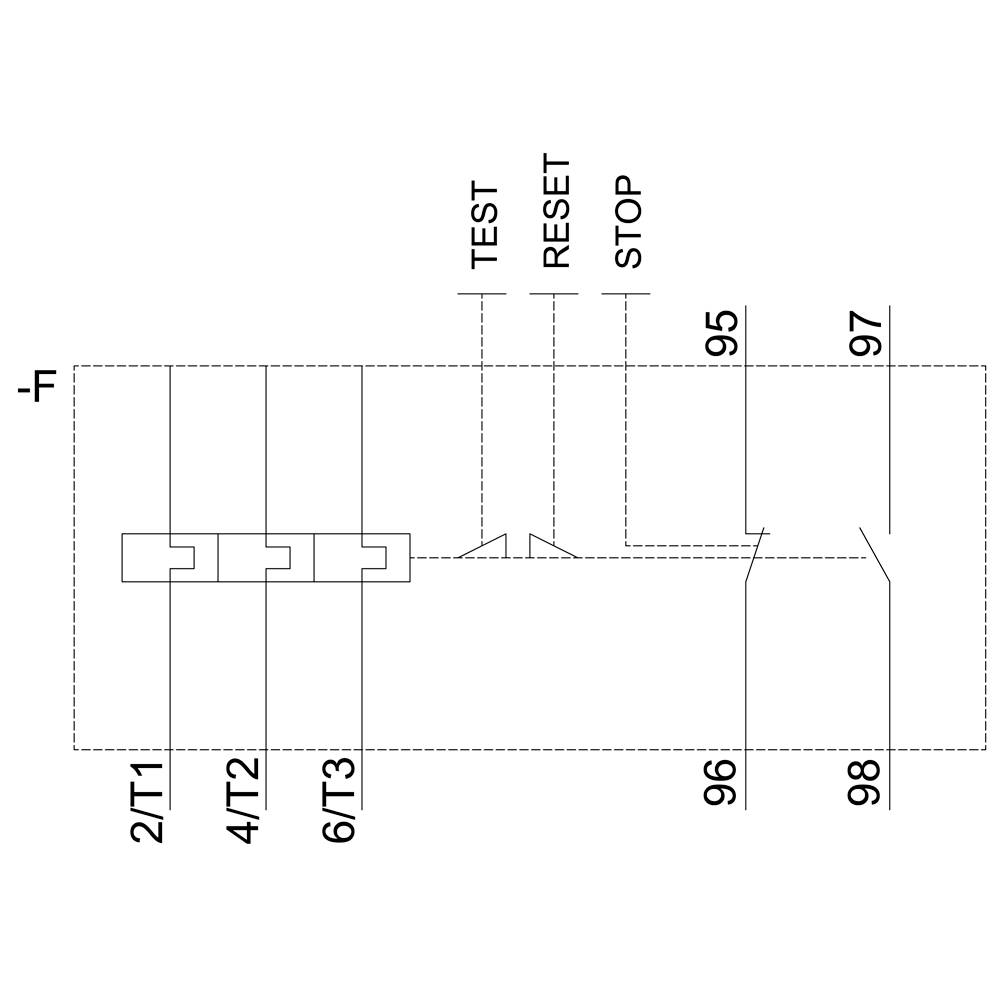

Diagram of an electrical circuit with vertical lines labelled '2/T1', '4/T2', '6/T3' and labels 'TEST', 'RESET', 'STOP'.

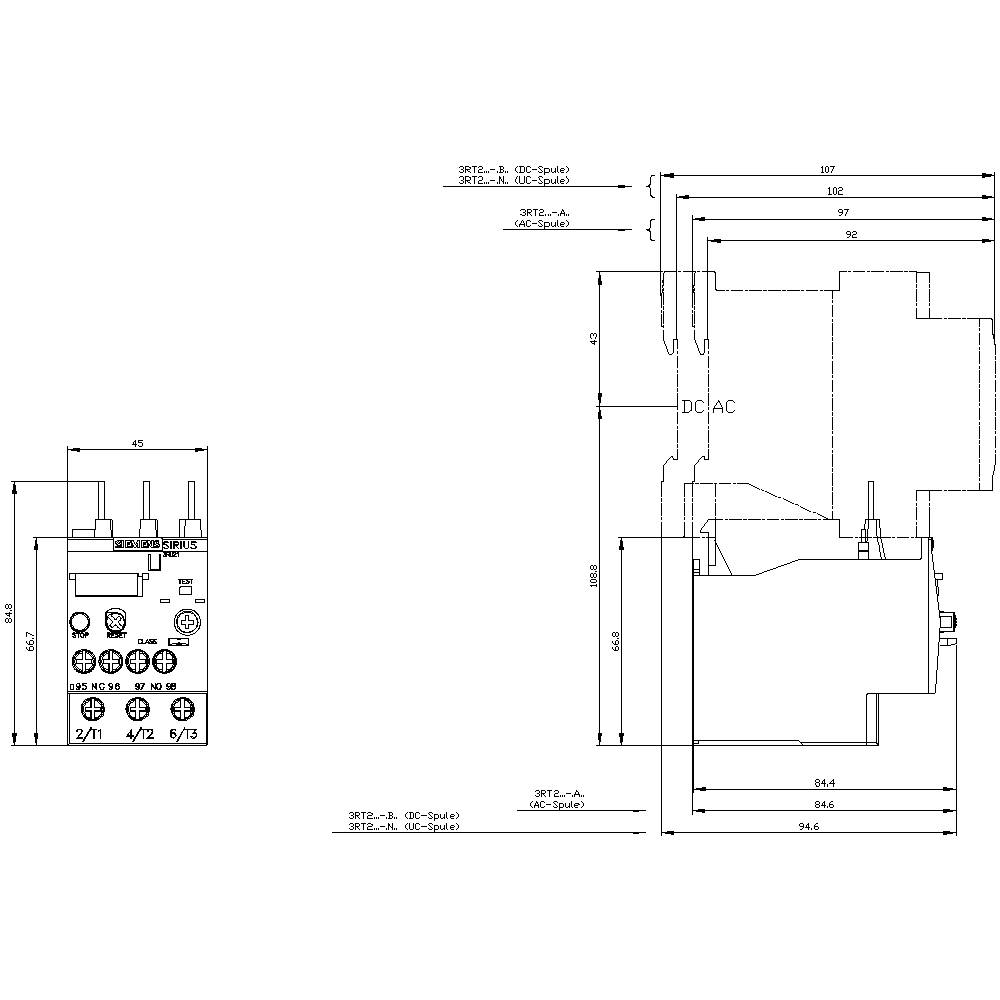

Technical drawing of an electrical component with dimensions in millimetres: width, depth, height and connections.

'Diagram of a Siemens SIRIUS 3RU21 overload relay. Shows connection terminals, buttons for stop, reset and test functions.'

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2126-1DB0

Type

Features

Automatic/manual switch

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 65.99 / piece)

€ 65.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2126-1DB0

Type: S0

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 2.2 A

Amperage adjustment range (max.): 3.2 A

Adjustment range (amperage): 2.2 - 3.2 A

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 45 mm

Height: 85 mm

Depth: 85 mm

Dim: (W x H x D) 45 x 85 x 85 mm

Content: 1 pc(s)

Weight: 0.1914 kg

AWG max.: 8

AWG (min.): 16

Nominal current: 3.2 A

Cross section (flexible) (max.): 10 mm²

Cross section (inflexible) (max.): 10 mm²

Cross section (flexible) (min.): 1 mm²

Cross section (inflexible) (min.): 1 mm²

: Direct attachment

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1730712 O/L relay Siemens 3RU2126-1DB0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1730712 O/L relay Siemens 3RU2126-1DB0 1 pc(s)

Description

Overload relay 4.5...6.3 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset

Description

Overload relay 4.5...6.3 A for motor protection Size S0, CLASS 10 Contactor mounting Main circuit: Ring cable lug Auxiliary circuit: ring cable lug Manual-Automatic-Reset
