O/L relay Siemens 3RU2126-4PC0 1 pc(s)

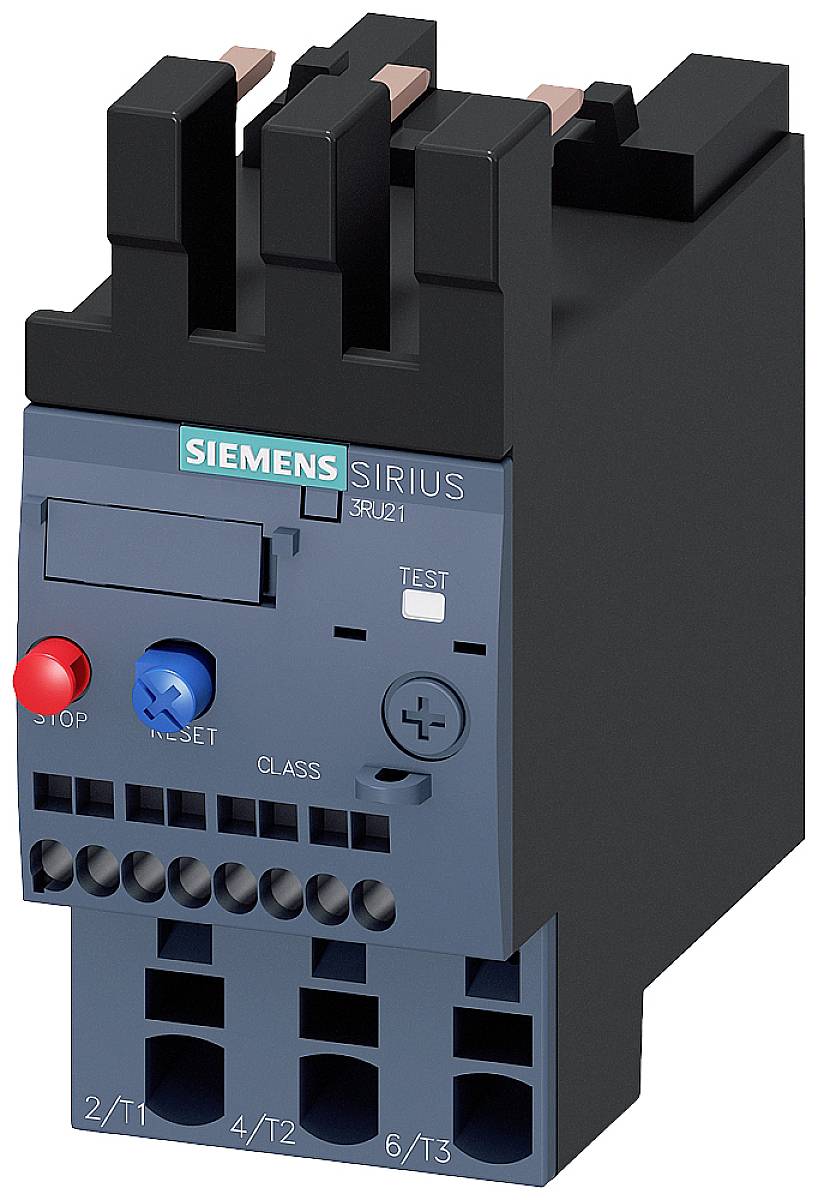

A Siemens Sirius 3RU21 device, with operating elements such as stop and reset buttons, test button, and adjustment dial for the class.
An open electrical cabinet with multiple levels of circuits and cables, various control units and connections visible.
Circuit diagram overview of a control unit with components: Carrier, Thermal Overload Relay, Remote RESET, Push Button.
'Circuit diagram of a control unit with three buttons: TEST, RESET and STOP. Connections to terminals 2/T1, 4/T2, 6/T3.'

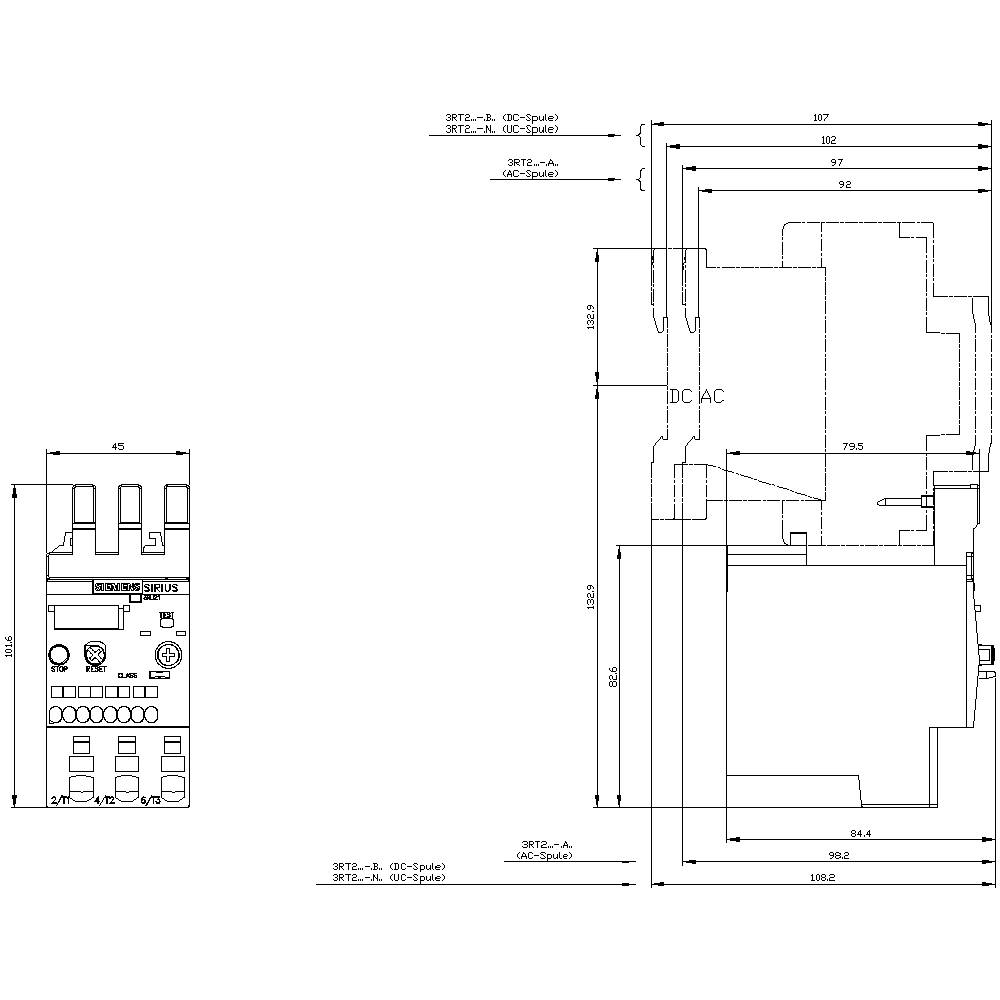

Technical drawing of an electrical component with front and side views. Dimensions and connections are detailed.

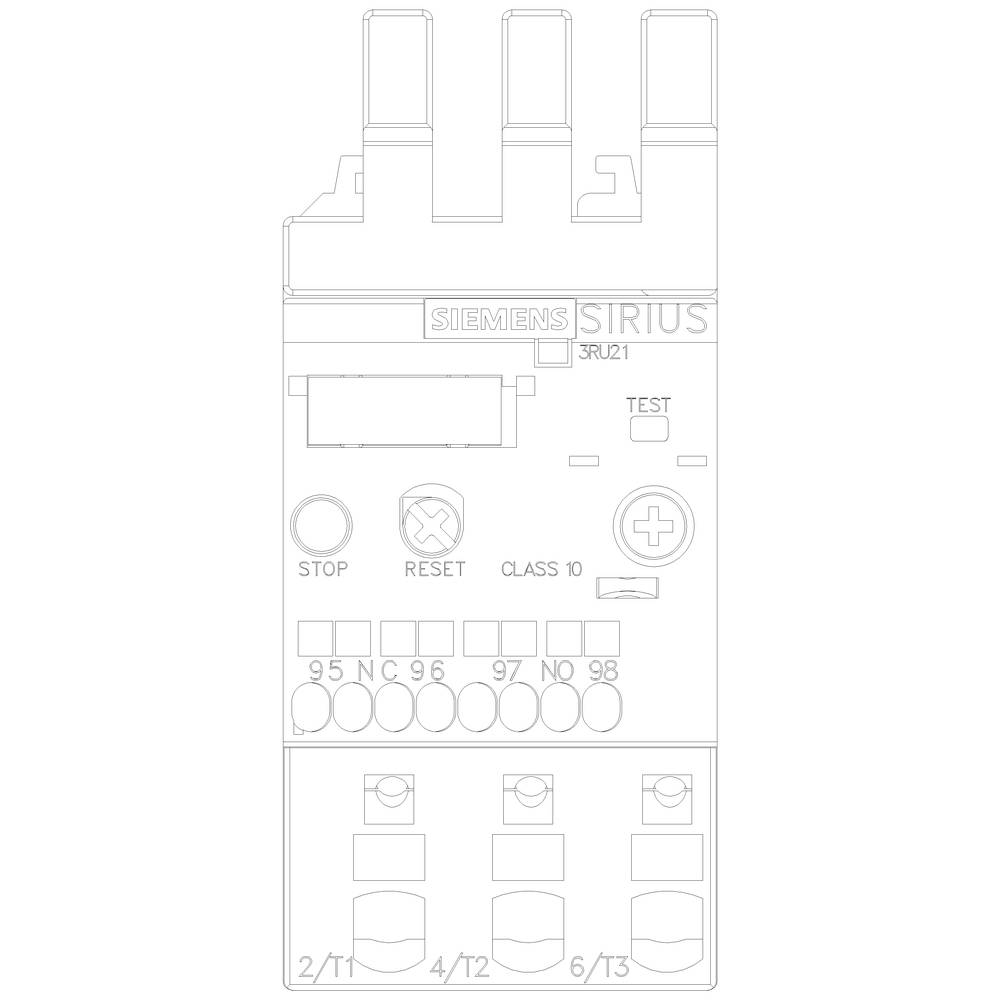

Circuit diagram of a Siemens SIRIUS 3RU21 thermal overload relay. Shows connection terminals, test and reset buttons, and labelling.
1/6
Image similar
Product type
O/L relay
Functions
Overload
Type
3RU2126-4PC0
Type
S0
Operating voltage
690 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 119.99 / piece)
€ 119.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Fuse gG: 6 A, quick-acting: 10A
Product type

O/L relay

Type

3RU2126-4PC0

Type

S0

Functions

Overload

Operating voltage

690 V

Amperage adjustment range (min.)

30 A

Amperage adjustment range (max.)

36 A

Adjustment range (amperage)

30 - 36 A

Connection

Spring-loaded connector

IP20

Min. temperature

-40 °C

Max. temperature

+70 °C

Width

45 mm

Height

102 mm

Depth

84 mm

Dim

(W x H x D) 45 x 102 x 84 mm

Content

1 pc(s)

AWG max.

8

AWG (min.)

18

Nominal current

36 A

Cross section (flexible) (max.)

10 mm²

Cross section (inflexible) (max.)

10 mm²

Cross section (flexible) (min.)

1 mm²

Cross section (inflexible) (min.)

1 mm²

Direct attachment

1

1

0

CLASS 10

Spring clamp connection

690 V

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1744886 O/L relay Siemens 3RU2126-4PC0 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1744886 O/L relay Siemens 3RU2126-4PC0 1 pc(s)

Description

SIRIUS safety relay Adapter for 3TK2810-1 for connecting 15-pole encoders, Type: SIEMENS/HEIDENHAIN
