Name: O/L relay Siemens 3RU2136-4ED1 1 pc(s)
Brand: Siemens
SKU: 1744896
Availability: BackOrder

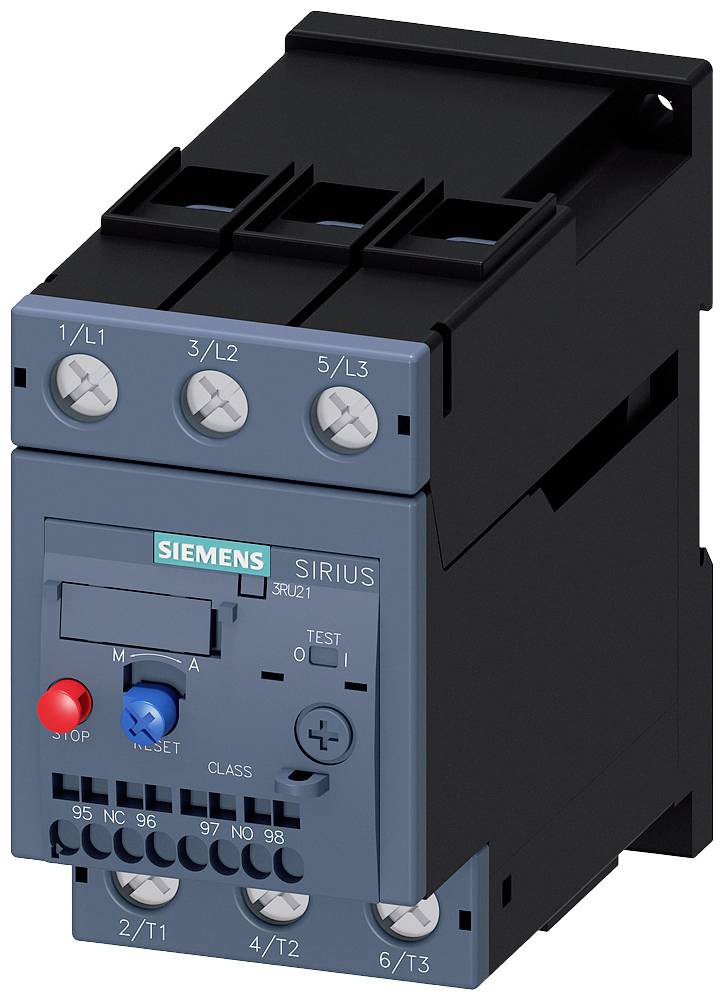

A blue Siemens contactor, model Sirius 3RU21, with connections on the top and bottom sides.

An open electrical cabinet with multiple rows of wiring, fuses, and electronic components.

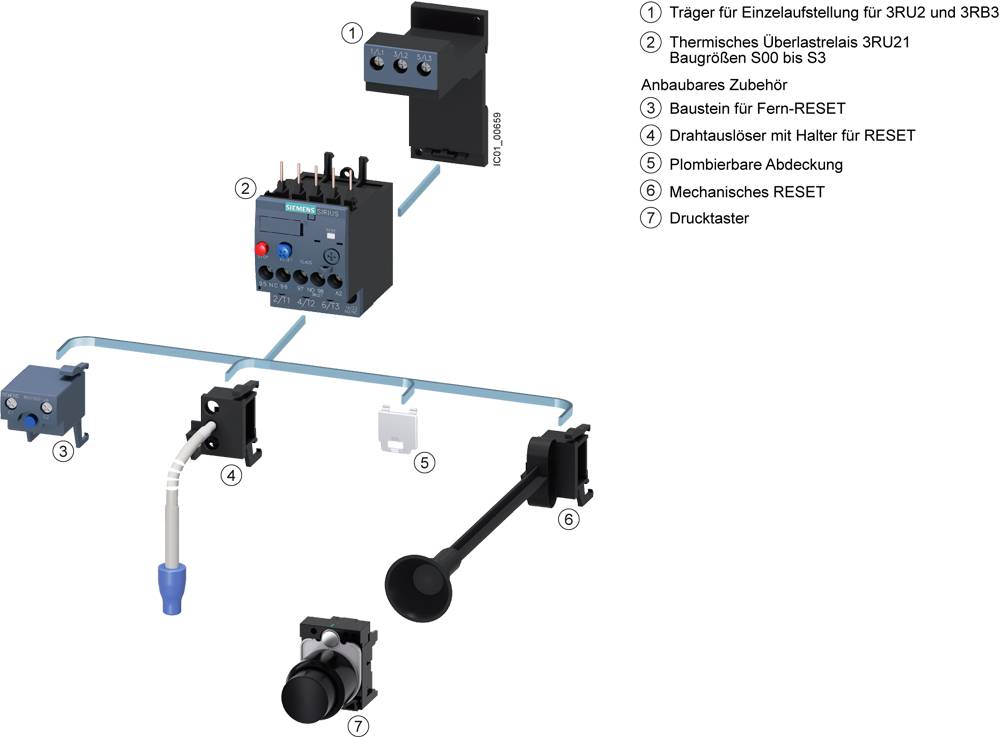

Overview of Electrical Installation Components: Carriers, Triggers, Modules and Switches; Numbered and Connected with Cables.

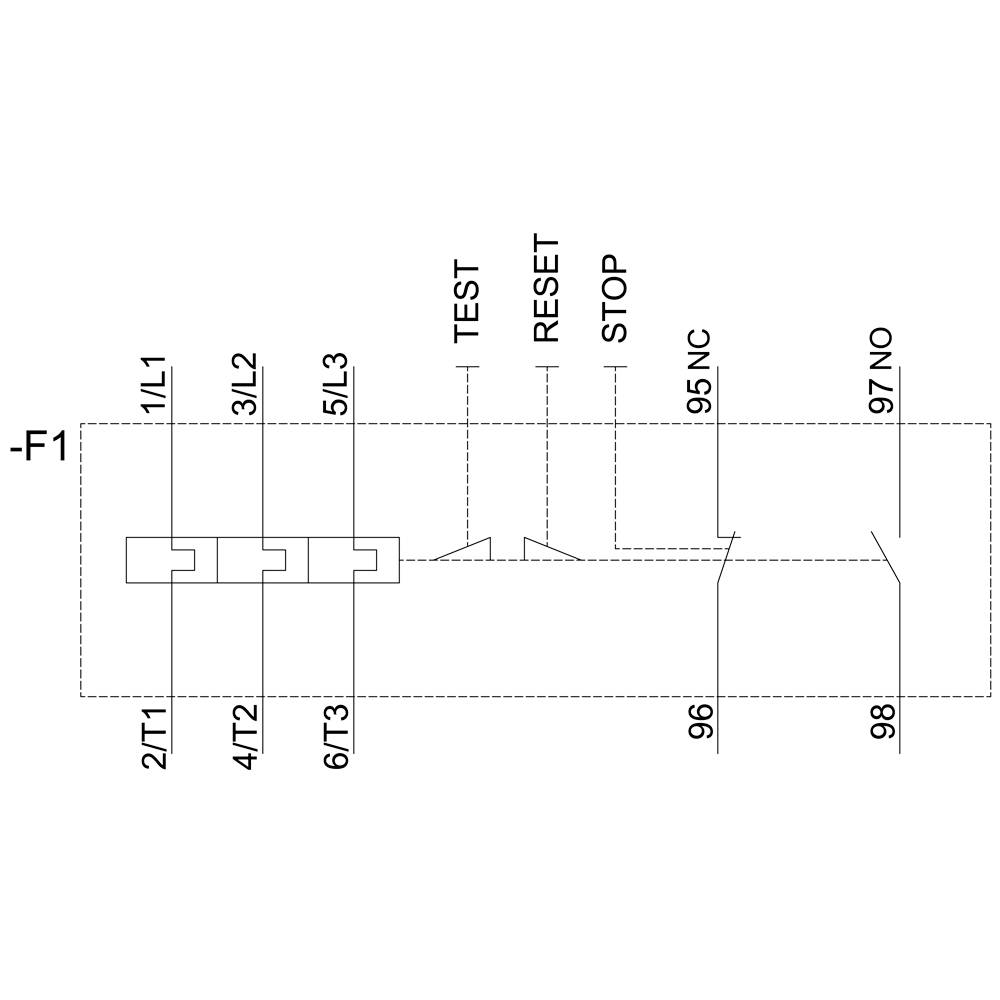

'Circuit diagram of an electrical control system with marked terminals: 1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3, TEST, RESET, STOP, 95NC, 97NO, 96, 98.'

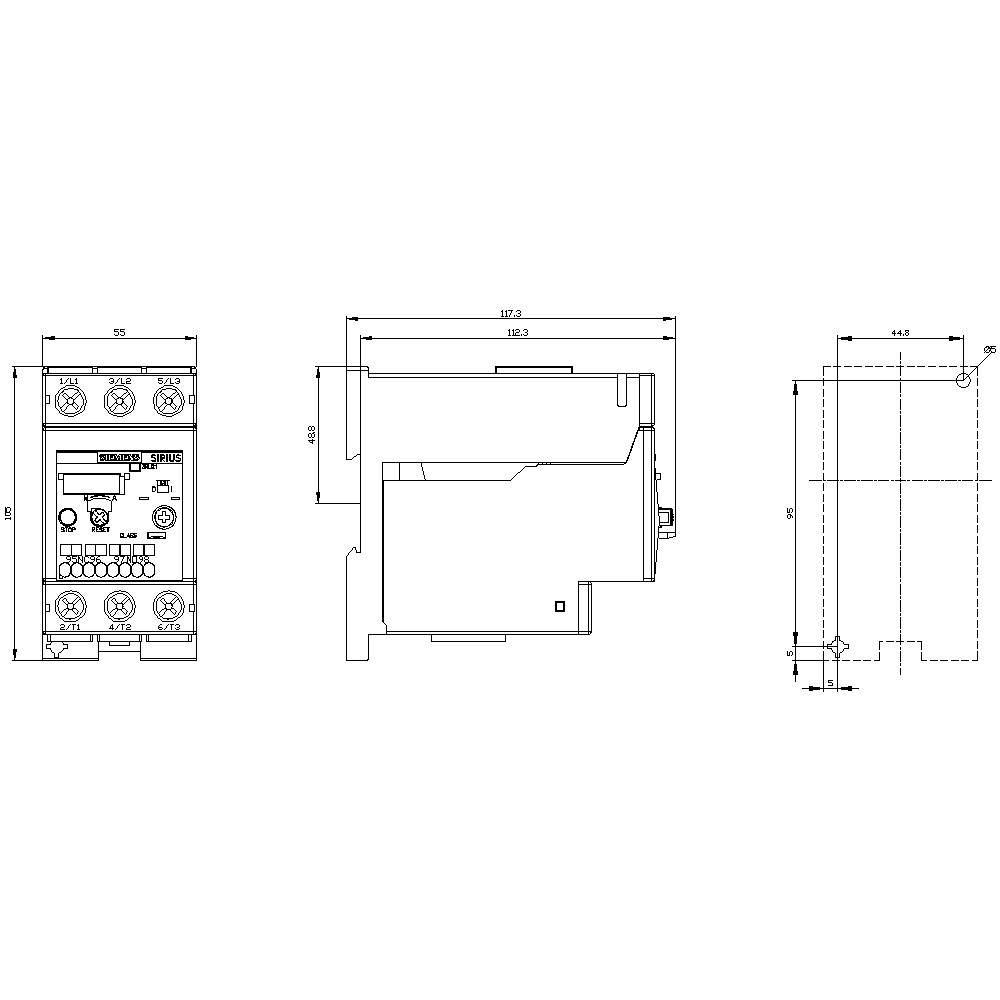

Technical drawing of an electronic device with dimensions in millimetres, showing three views: front, side, and top view.

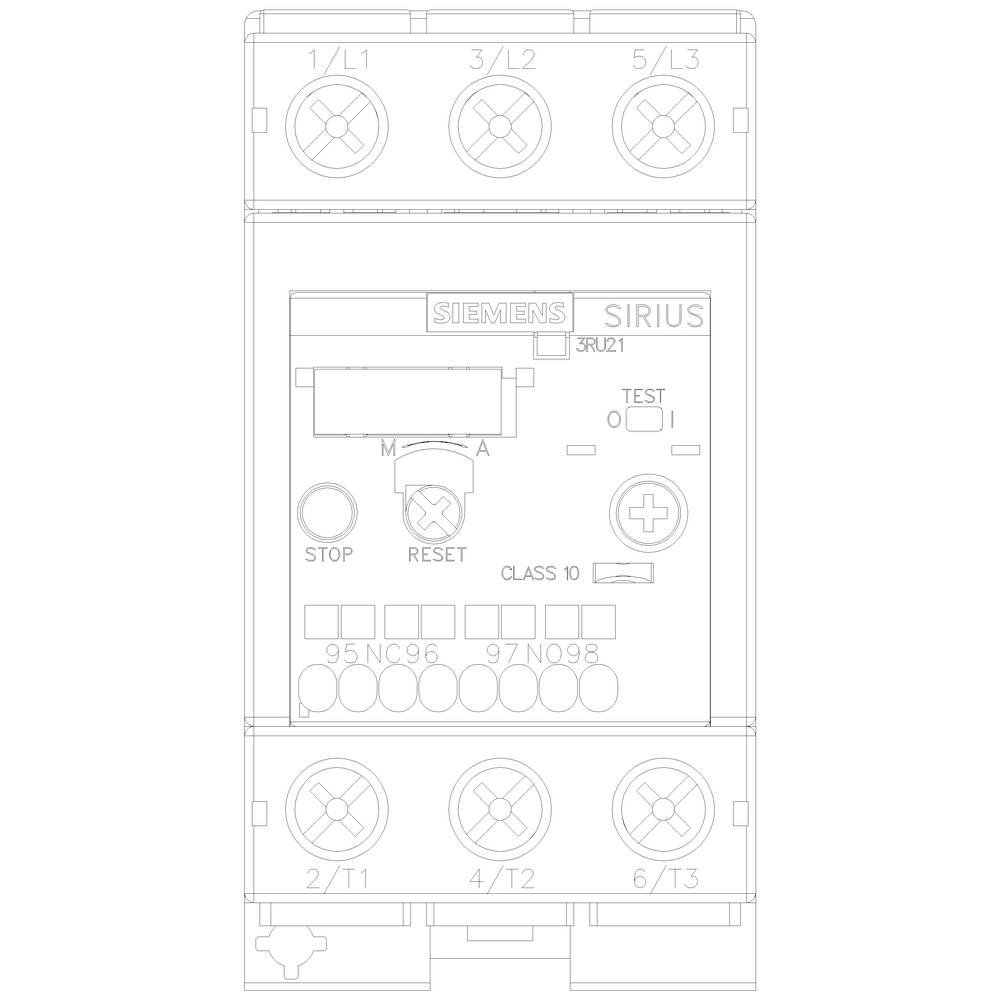

An electric Siemens Sirius device with control elements for motor management and protection. Key features: test button, reset, indicator lights.

1/6

Image similar

Product type

O/L relay

Functions

Overload

Type

3RU2136-4ED1

Type

Features

Automatic/manual switch

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 159.99 / piece)

€ 159.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Fuse gG: 6 A, quick-acting: 10A

Product type: O/L relay

Type: 3RU2136-4ED1

Type: S2

Functions: Overload

Features: Automatic/manual switch

Operating voltage: 690 V

Amperage adjustment range (min.): 22 A

Amperage adjustment range (max.): 32 A

Adjustment range (amperage): 22 - 32 A

Connection: Screws

: IP20

Min. temperature: -40 °C

Max. temperature: +70 °C

Width: 55 mm

Height: 105 mm

Depth: 117 mm

Dim: (W x H x D) 55 x 105 x 117 mm

Content: 1 pc(s)

AWG max.: 1

AWG (min.): 18

Nominal current: 32 A

Cross section (flexible) (max.): 35 mm²

Cross section (inflexible) (max.): 10 mm²

Cross section (flexible) (min.): 1 mm²

Cross section (inflexible) (min.): 1 mm²

: Separate positioning

: 1

: 1

: 0

: CLASS 10

: Screw connection

: 690 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1744896 O/L relay Siemens 3RU2136-4ED1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1744896 O/L relay Siemens 3RU2136-4ED1 1 pc(s)

Description

Overload relay 14...20 A for motor protection Size S2, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: spring-type terminal Manual-Automatic-Reset

Description

Overload relay 14...20 A for motor protection Size S2, CLASS 10 Contactor mounting Main circuit: Screw Auxiliary circuit: spring-type terminal Manual-Automatic-Reset
