O/L relay Siemens 3RU2146-4JB1 1 pc(s)

Electrical contactor with three terminals at the top, brand label and test button visible. Used for controlling electrical circuits.
An open electrical cabinet reveals numerous electrical components and wiring, neatly organised on shelves.

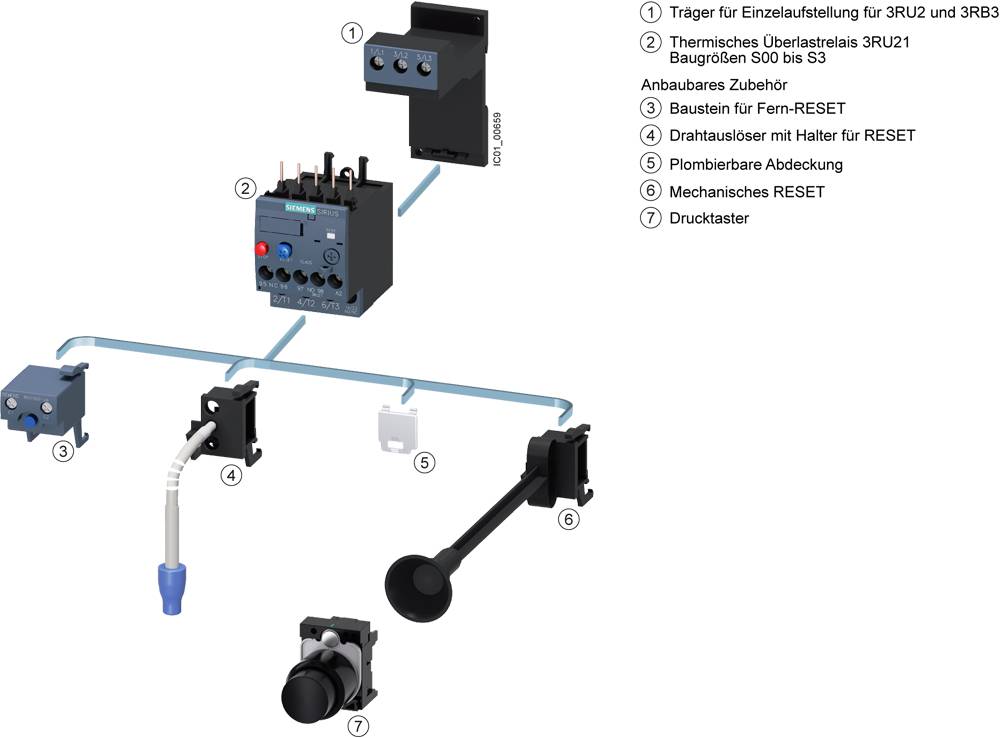

'Circuit diagram of an electrical system with numbered components, including reset mechanisms and overload protection devices.'

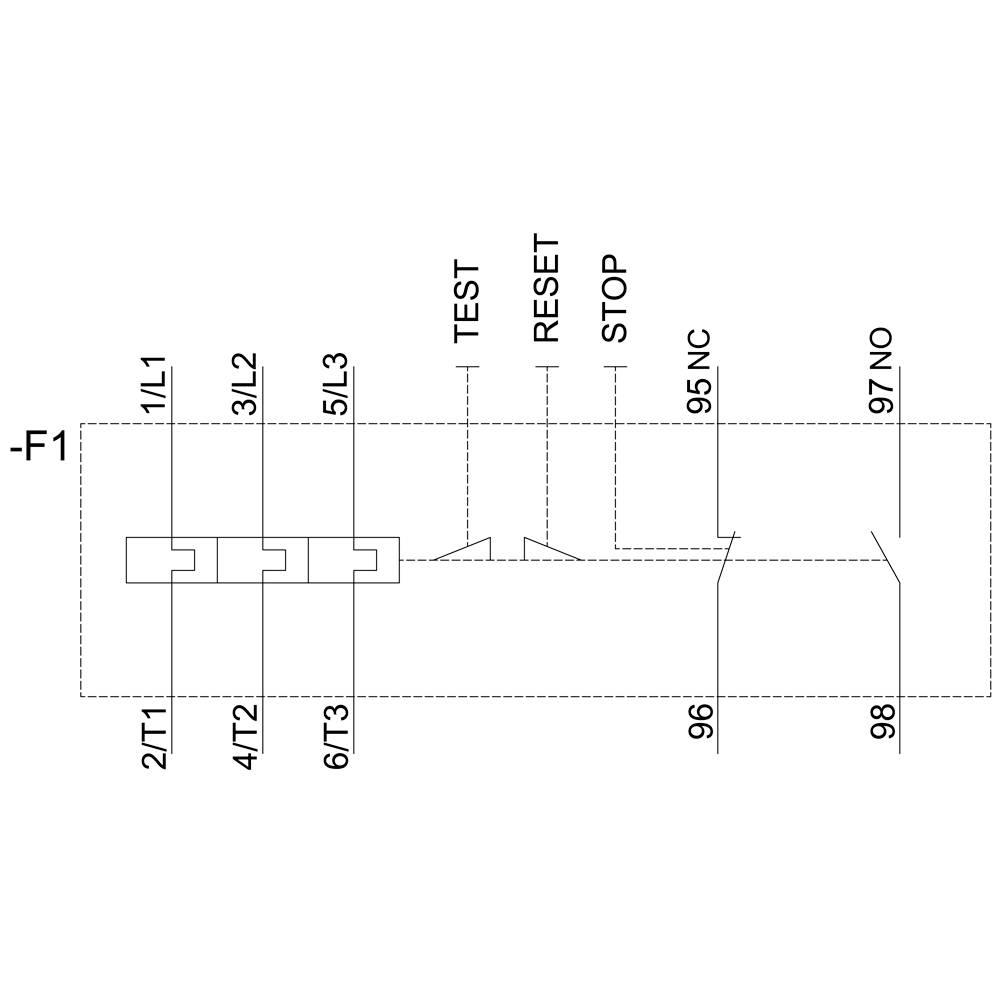

Electrical circuit diagram shows main switch functionality, with test, reset, and stop switches, along with connection numbers and contact designations.

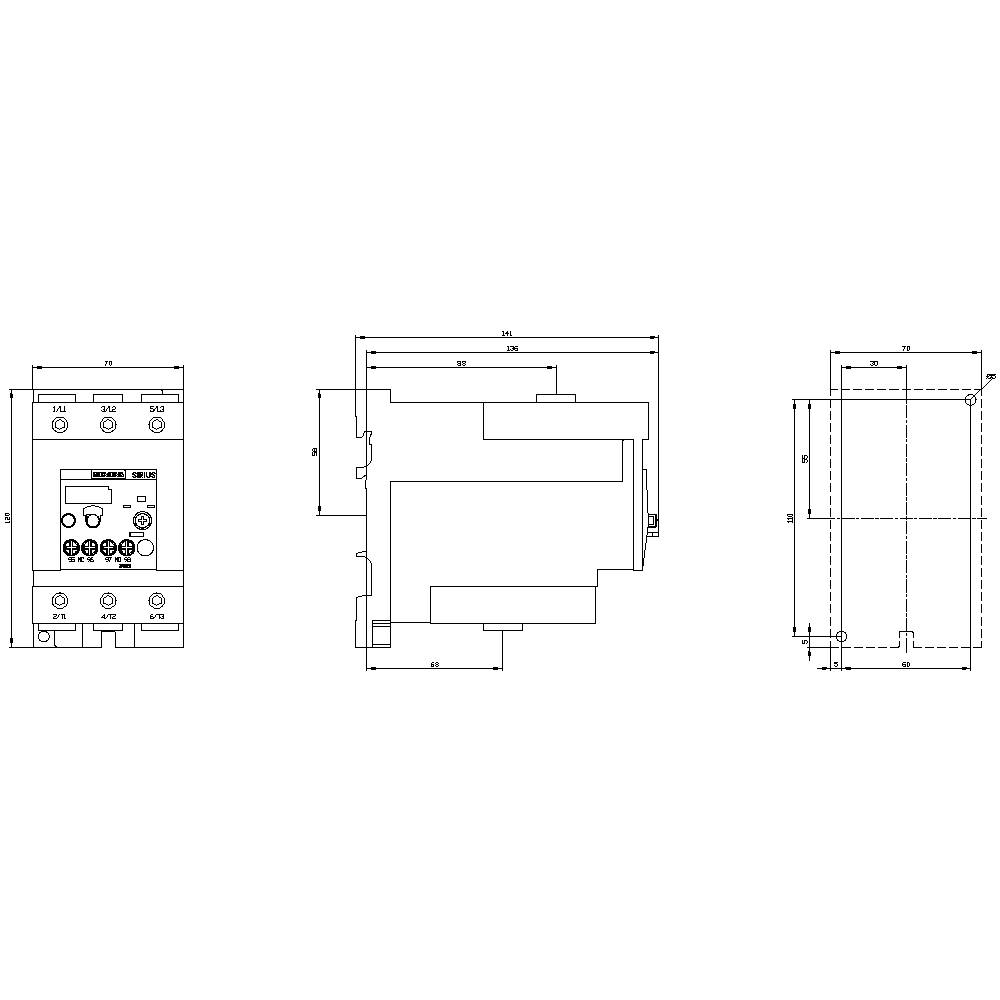

Technical drawing of an electrical device, with dimensions in millimetres, showing three views: front, side, and top view.
1/5
Image similar
Product type
O/L relay
Functions
Overload
Type
3RU2146-4JB1
Type
S3
Operating voltage
690 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Thu 5 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 199.99 / piece)
€ 199.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

  • Fuse gG: 6 A, quick-acting: 10A
Product type

O/L relay

Type

3RU2146-4JB1

Type

S3

Functions

Overload

Operating voltage

690 V

Amperage adjustment range (min.)

45 A

Amperage adjustment range (max.)

63 A

Adjustment range (amperage)

45 - 63 A

Connection

Screws

IP20

Min. temperature

-40 °C

Max. temperature

+70 °C

Width

70 mm

Height

120 mm

Depth

140 mm

Dim

(W x H x D) 70 x 120 x 140 mm

Content

1 pc(s)

AWG max.

1

AWG (min.)

10

Nominal current

63 A

Cross section (flexible) (max.)

50 mm²

Cross section (flexible) (min.)

2.5 mm²

Separate positioning

1

1

0

CLASS 10

Screw connection

1000 V

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 1745433 O/L relay Siemens 3RU2146-4JB1 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1745433 O/L relay Siemens 3RU2146-4JB1 1 pc(s)

Description

22MM PLASTIC ROUND COMPLETE UNIT COMBINATION: ILLUMINATED PUSHBUTTON MOMENTARY CONTACT TYPE WITH FLAT BUTTON ILLUMINATED WITH INTEGRATED LED 110V AC SCREW TERMINAL, 1NO+1NC WITH HOLDER GREEN !!! Phased-out product !!! SIRIUS ACT 3SU1 is successor Preferred successor ty 3SU1103-0AB40-1FA0
