Buy Omnitronic CS-8 Flush mount speaker 10 W 100 V Black 1 pc(s)

A round black conference microphone speaker with a subtle mesh design, used for audio recording in meetings.

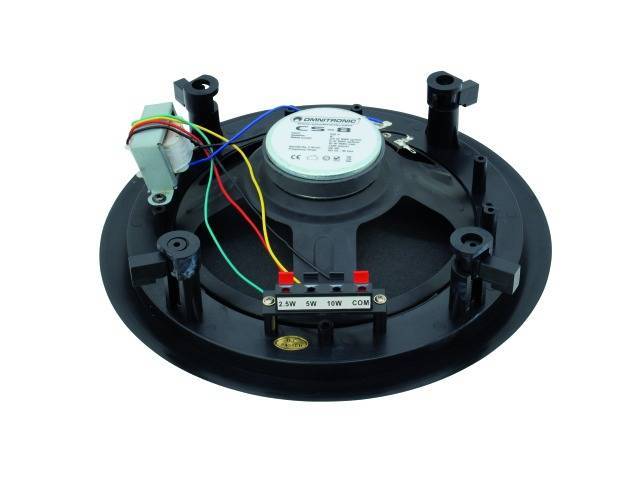

Round speaker with multiple coloured cables, suitable for ceiling mounting. Visible power connection on the rear.

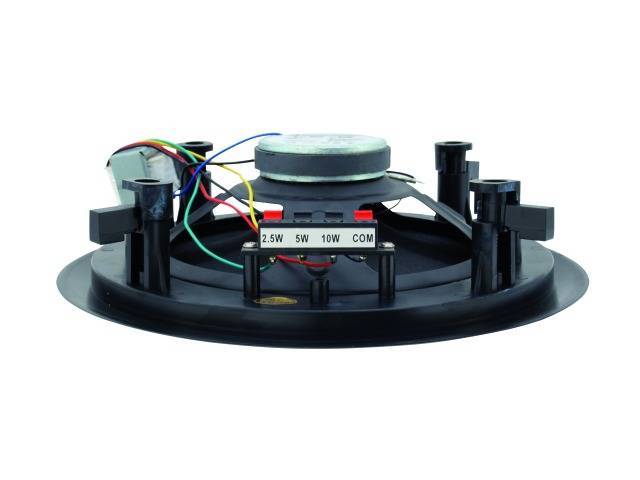

Round ceiling speaker mounted on a black frame with visible cabling. Several colourful cables are visible on the left side.

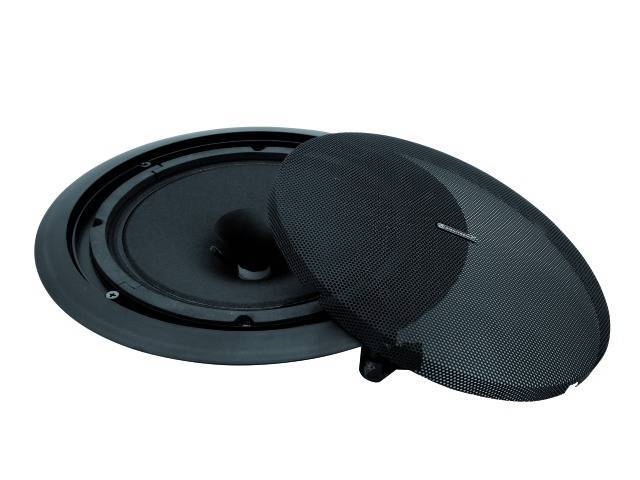

Two black, round speakers with removable grilles, lying side by side on a white background.

1/4

Dispatches on Wed, 16 Sep

50 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 30.24 / piece)

€ 30.24

plus VAT.

Report legal concerns

Highlights & Details

Omnitronic CS-8 ceiling speaker black

Ceiling-mounted loudspeaker

Technical specifications

Input voltage: 100 V
Components: 20 cm loudspeaker (8)
Rated power: 2.5 W RMS (green)
5 W RMS (yellow)
10 W RMS (red)
COM (black)
Sensitivity (1W, 1m): 92 dB
Frequency range 50 Hz - 18 kHz
Dimensions (D x D): 275 x 85 mm
Installation cut-out: 235 mm dia.
Weight 1.2 kg

Max. load: 10 W

Power levels: 2.5 W
5 W
10 W

Max. sound pressure: 92 dB

: IP6K9K

Operating voltage: 100 V

Type: Round

Factory colour: Black

Material: Plastic
Metal

Recess diameter: 23.5 cm

Depth: 85 mm

(Ø): 27.5 cm

Weight: 1.2 kg

Dim: (Ø x D) 27.5 cm x 85 mm

Product type: Flush mount speaker

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 313390 Omnitronic CS-8 Flush mount speaker 10 W 100 V Black 1 pc(s)

Description

Ceiling-mounted loudspeaker · 20 cm wide-band loudspeaker (8") · 100-V transformer with 3 power taps · ABS-plastic casing with metal grille · For speech and background music in indoor areas
