ORBIS Zeitschalttechnik OB063031 TDR analogue 1-piece set 3000 W, 1200 VA IP20

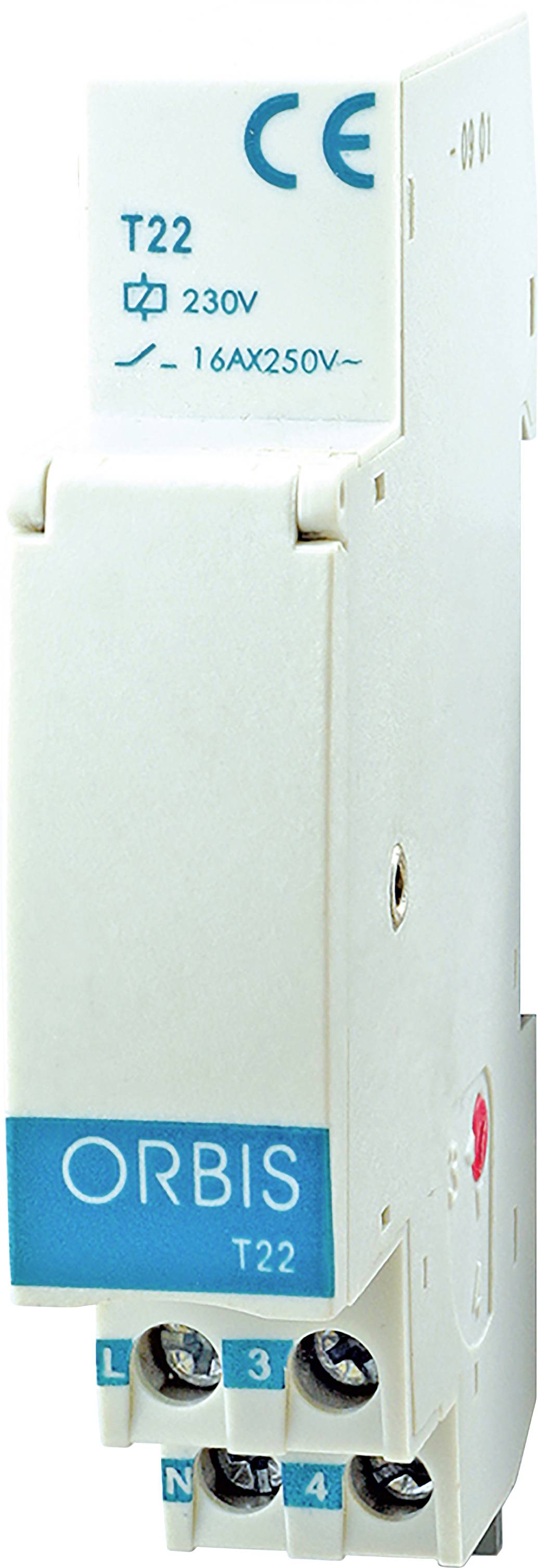

Close-up of an ORBIS T22 electrical relay or timer module labeled '230V' and '16AX 250V~', with terminal numbers visible.
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
5 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 23.99 / piece)
€ 23.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 5 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

T-22 staircase light-timer

  • Continuously adjustable runtime from 1 to 7 minutes
  • Suitable for 3- and 4-wire installations with automatic detection
  • Switch for continuous light and automatic time switching operation
  • Compact design with only 1 HP (17.5 mm width) for the DIN-rail

Technical specifications

  • Internal consumption: Approx. 1.5 VA
  • Switch contact: 1 NO (not floating)
  • Glow lamp current: Max. 50 mA
  • Ambient temperature: -10 °C to +50 °C
  • Mounting type DIN-rail 35 mm
Product type

TDR

Type

analogue

Used at

Indoors

IP20

Max. switching capacity

3000 W

1200 VA

No. of SPCs

1

Operating voltage

230 V AC

Switching current (max.)

16 A

Factory colour

Grey

White

Shortest switching time

1 min

Width

17.5 mm

Height

88 mm

Depth

65 mm

Type

Staircase lighting timer for DIN-top hat rail mounting

Dim

(W x H x D) 17.5 x 88 x 65 mm

Intervall settings

7 min

Documents & Downloads

Datasheet

Datasheet 3828182 ORBIS Zeitschalttechnik OB063031 TDR analogue 1-piece set 3000 W, 1200 VA IP20

User & Safety Instructions

User & Safety Instructions 3828182 ORBIS Zeitschalttechnik OB063031 TDR analogue 1-piece set 3000 W, 1200 VA IP20

Description

Front selector for time switching with a viewing window to protect against dust and dirt.
The device has a small manual switch, which switches the timer permanently off during repairs, maintenance work or cleaning of the system.
Timer adjustable from 45 seconds to 7 minutes.

This text is machine translated.

Features

  • Selector switch for automatic mode (timer) / continuous light
  • Mechanical/Electromechanical Switching System
  • Continuous time setting via control dial
  • Snap-on mounting for 35 mm DIN top hat rail (EN 60715)
  • Screw terminals for secure wiring

Scope of delivery

  • 1x Orbis T-22 Stair light timer (item no. OB063031)
  • operating and installation instructions
