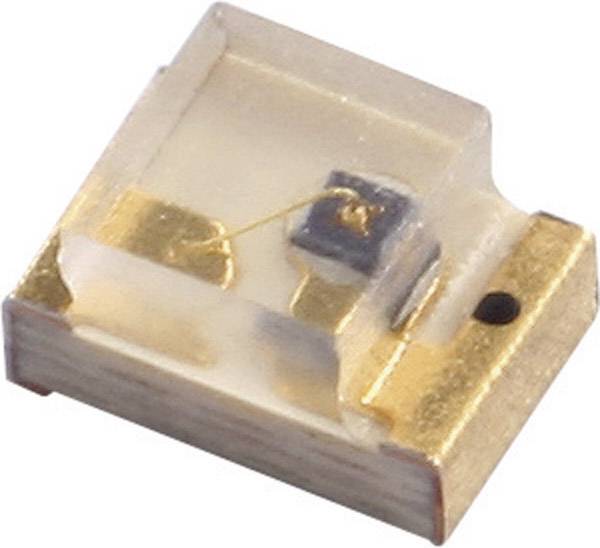

OSA Opto OIS-170875p IR emitter 875 nm 0805 SMT
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.25
6
8% = € 0.10
€ 1.15
10
11% = € 0.14
€ 1.11
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 1.25 / piece)
€ 2.50
plus VAT.
Highlights & Details
SMT LED IR OIS-170875PXT
- High efficiencyCarrier strips: Glass fiber laminateComponents CONFORM TO ROHS and REACHLead-free solder, solder pads: Gold-platedTaped in 8mm blister tape, cathode for transport perforationAll components sorted in intensity classes
Technical specifications
- Type
OIS-170875p
- Type (LEDs)
Water clear
Non-tinted
- Type
SMT
- Type
0805
- Forward voltage U(F)
1.35 V
- Forward current I(F)
50 mA
- Beam intensity I(e)
2.1 mW/sr
- Wavelength
875 nm
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Dim
(L x W x H) 1.9 x 1.2 x 1.2 mm
- Height
1.2 mm
- Length
1.9 mm
- Width
1.2 mm
- Manufacturer
OSA Opto
- Product type
IR emitter
Documents & Downloads
Datasheet
Datasheet 2634353 OSA Opto OIS-170875p IR emitter 875 nm 0805 SMT
User & Safety Instructions
User & Safety Instructions 2634353 OSA Opto OIS-170875p IR emitter 875 nm 0805 SMT
Description
Surface mount infrared emitter with a large radiation angle. Chip production, final assembly and measurement are carried out in Germany.
This text is machine translated.
This text is machine translated.
Hints
Unless LED chips come with a built-in current limiter, they need to be protected by a current-limitung resistor or constant current source. Infrared light wavelengths are invisible to the human eye.
