OSRAM HOMELIGHTING LED Slim Line 78 75 300° DIM 9.5W 827 Clear R7s 4099854503597 Outdoor floodlight EEC: E (A - G) 9.5 W

1/2
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov

22 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 10.99 / piece)
€ 10.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included

Highlights & Details

LED slim line 78 75 300° dim 9.5W 827 clear R7s

  • Power= 9.5 W
  • Total luminous flux= 1055 lm
  • Colour temperature= 2700 K
  • Warm white

Technical specifications

Product type

Outdoor floodlight

Operating voltage

230 V

Bulb type

LED (monochrome)

R7s

Rating per bulb

9.5 W

9.5 W

2700 K

Colour

Warm white

Total luminous flux

1055 lm

Light features

Dimmable

Radiation angle

300°

IP20

Material

Plastic

Weight

25.00 g

Dim

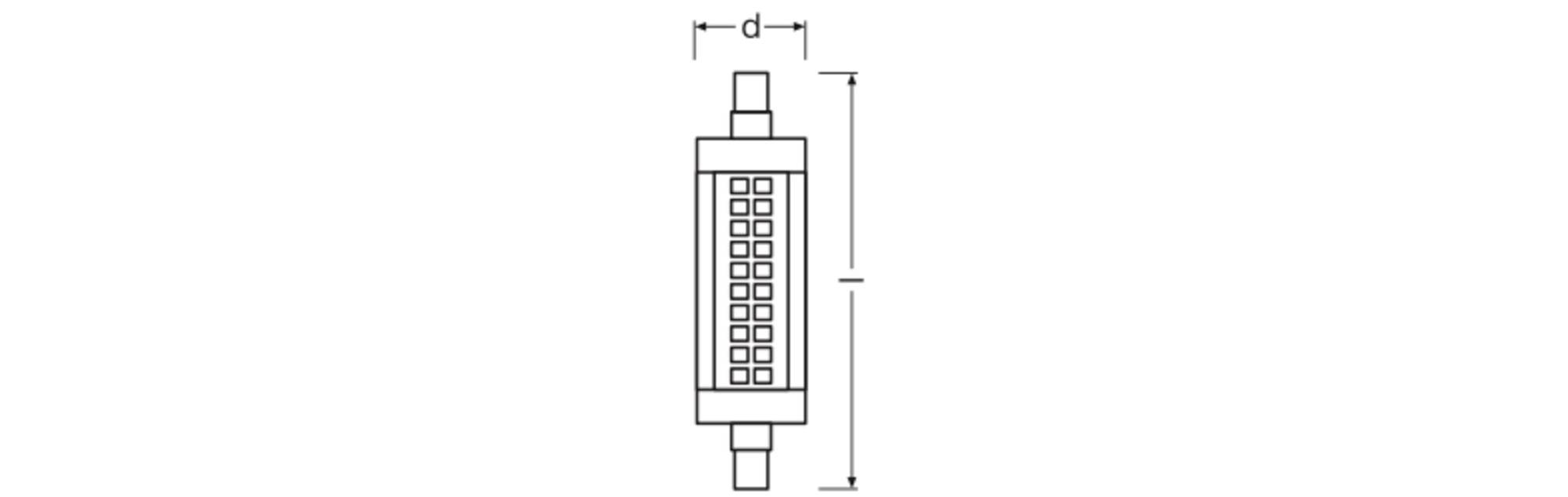

(Ø x H) 20.00 mm x 20.00 mm

E (A - G)

Width

20.00 mm

Height

20.00 mm

Depth

78.00 mm

(Ø)

20.00 mm

Yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3438323 OSRAM HOMELIGHTING LED Slim Line 78 75 300° DIM 9.5W 827 Clear R7s 4099854503597 Outdoor floodlight EEC: E (A - G) 9.5 W

User & Safety Instructions

User & Safety Instructions 3438323 OSRAM HOMELIGHTING LED Slim Line 78 75 300° DIM 9.5W 827 Clear R7s 4099854503597 Outdoor floodlight EEC: E (A - G) 9.5 W

Conformity certificate

Conformity certificate 3438323 OSRAM HOMELIGHTING LED Slim Line 78 75 300° DIM 9.5W 827 Clear R7s 4099854503597 Outdoor floodlight EEC: E (A - G) 9.5 W

Warranty Terms

Warranty Terms 3438323 OSRAM HOMELIGHTING LED Slim Line 78 75 300° DIM 9.5W 827 Clear R7s 4099854503597 Outdoor floodlight EEC: E (A - G) 9.5 W

Description

Dimmable slim LED lamps with R7s- retrofit sockets. Product features: Dimmable (on many commercially available dimmers). LED alternative to conventional R7s lamps Good light quality; color rendering index R : ≥ 80; constant color location. Product benefits: Fits into most R7s lamps through non-central sockets. Good all-round light radiation. Lower heat generation (compared to the standard reference product). Very long life of up to 25,000 h. Four year guarantee. Less power consumption than incandescent or halogen lamps. Applications: General lighting at ambient temperatures of -20…+40 °C. For outdoor use only in suitable outdoor lamps. Safety instructions: Do not touch the lamp if it is damaged. Operation with defective external piston not permitted. To ensure full light efficiency and product life, it is recommended to remove glass or the cover of the lamp.

This text is machine translated.

Hints

Do not touch the lamp if it is damaged.,Operation with a defective external bulb is not permitted.,To ensure full light efficiency and product life, it is recommended to remove glass or cover of the lamp.
