Name: OSRAM LED Batten 600mm 12W 840 G5 T5 LED strip light G5 12 W Cool white
Brand: OSRAM
SKU: 3846965
Availability: BackOrder

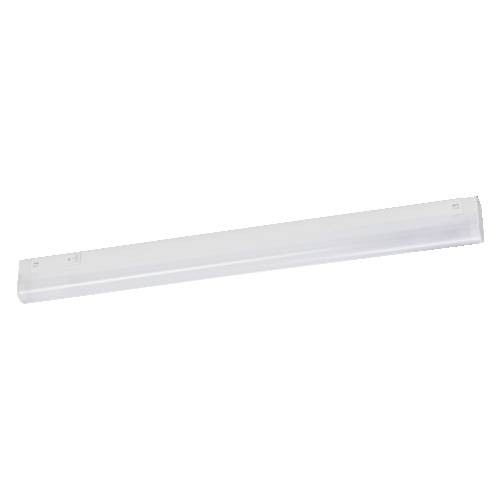

White linear LED light fixture on a plain white background.

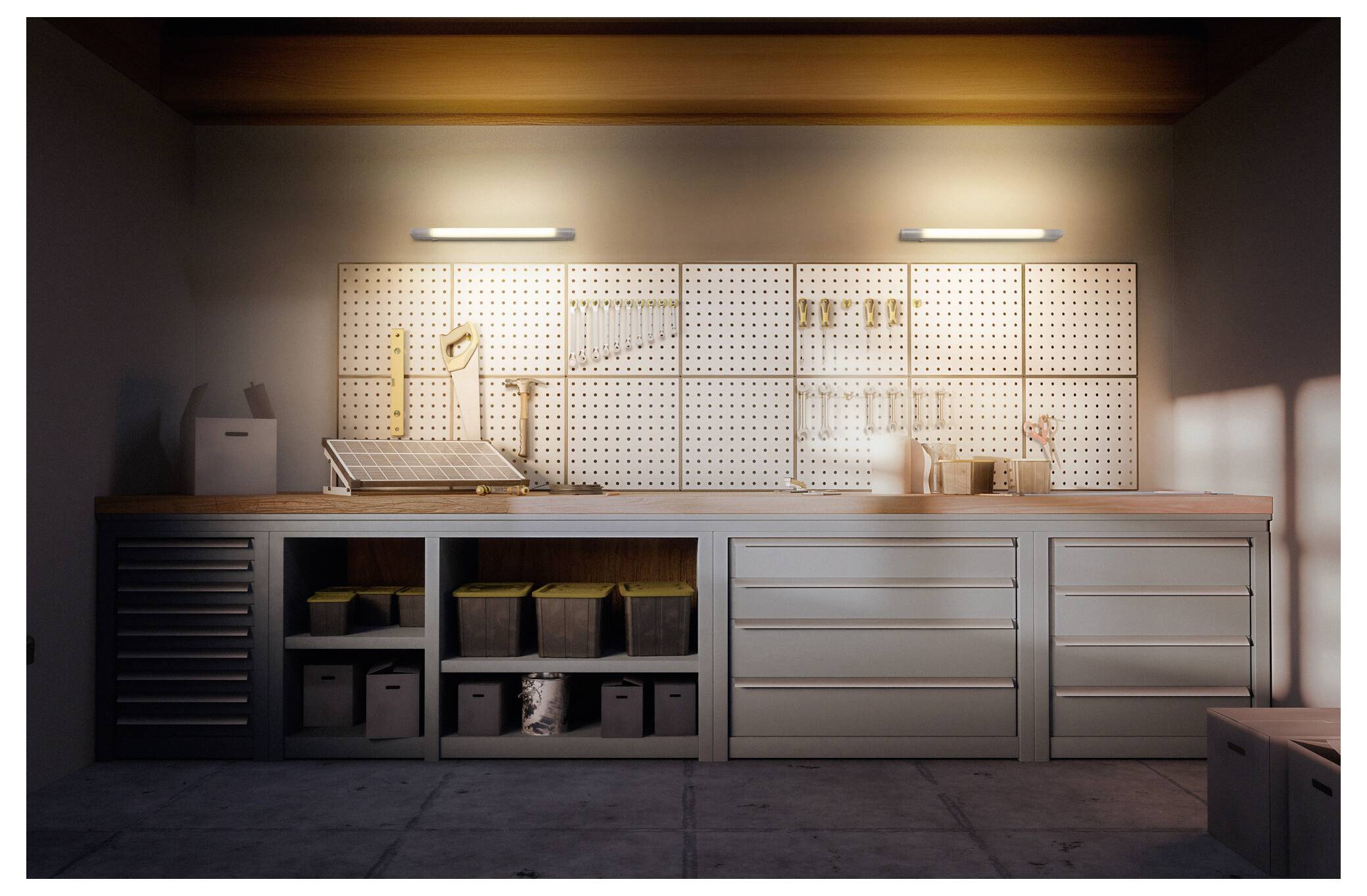

A tidy garage workbench with pegboard storage, drawers, shelves, and tools under two wall lights.

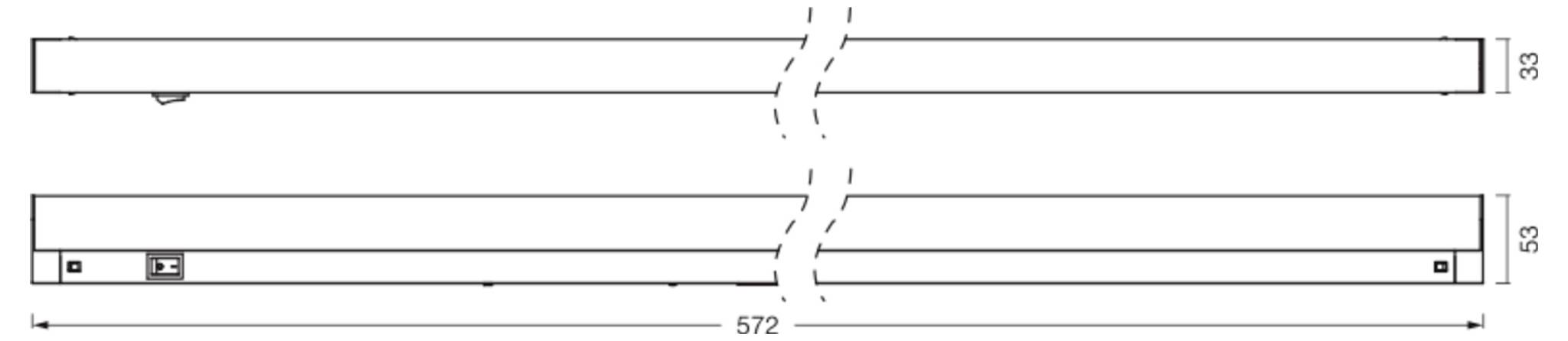

Technical drawing of a long rectangular bar shown in two aligned views with a center break; labeled dimensions include 572, 53, and 33.

1/3

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16.95 / piece)

€ 16.95

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

LED batteries 600mm 12W 840 G5 T5

Power= 12 W
Colour temperature= 4000 K
Cool white

Technical specifications

Product type: LED strip light

Type: Tube

Operating voltage: 230 V

Length: 600 mm

: G5

(Ø): 16 mm

: 12 W

: 4000 K

Colour: Cool white

Protection class: I

: IP20

Dim: (Ø x L) 16 mm x 600 mm

: n.rel.

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3846965 OSRAM LED Batten 600mm 12W 840 G5 T5 LED strip light G5 12 W Cool white

Conformity certificate

Conformity certificate 3846965 OSRAM LED Batten 600mm 12W 840 G5 T5 LED strip light G5 12 W Cool white

Warranty Terms

Warranty Terms 3846965 OSRAM LED Batten 600mm 12W 840 G5 T5 LED strip light G5 12 W Cool white

Description

Light strips with housing cover and included replaceable T5-LED tube. Product features: Replacement for conventional T5 lamps. Wall and ceiling light strip. Available lengths: 0.6 m, 0.9 m, 1.2 m. Product advantages: Housing cover for even light distribution. Convenient switch installed directly at the lamp. Flexible application through a wide assortment of available lengths from 600 to 1200 mm. Applications: Interior applications. Wall and ceiling mounting Kitchens, work areas. Corridors, stairwells, cellars. Workshop. Technical equipment: Complete mounting and connection accessories included. Safety instructions: All electrical connections must be made by qualified personnel only. Caution, risk of electric shock. Product of the protection class I. All electrically conductive metal housing parts which can absorb voltage during operation or maintenance, must be connected permanently to the protective conductor. Check that the wall/ceiling is suitable. If you are unsure, get professional advice.

This text is machine translated.

Features

Product properties
Replacement for conventional T5-lamps
Wall and ceiling light strip
Available lengths: 0.6 m, 0.9 m, 1.2 m.

Hints

All electrical connections may be made only by qualified personnel.,Caution, danger of electric shock.,Product of protection class I. All electrically conductive metal parts of the housing which can take voltage during operation or maintenance in case of failure must be connected permanently to the protective earth.,Check the wall/ceiling for their suitability. If you are unsure, get professional advice.
