PCE 025-6 CEE plug 32 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
3
6% = € 0.30
€ 5.15
5
8% = € 0.42
€ 5.03
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 10.08
-46 %
€ 5.45
plus VAT.
Highlights & Details
CEE plug, 32 A
- IP44
Technical specifications
- 5-pin, 3 P + N + E
- Product type
CEE plug
- Nominal voltage
400 V
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Type A
Screws
- Type B
CEE plug
- Cores
5
IP44
- Factory colour
Red
- Content
1 pc(s)
- Nominal voltage (details)
230 - 400 V
- Nominal current (details)
32 A
- UKCA
yes
Documents & Downloads

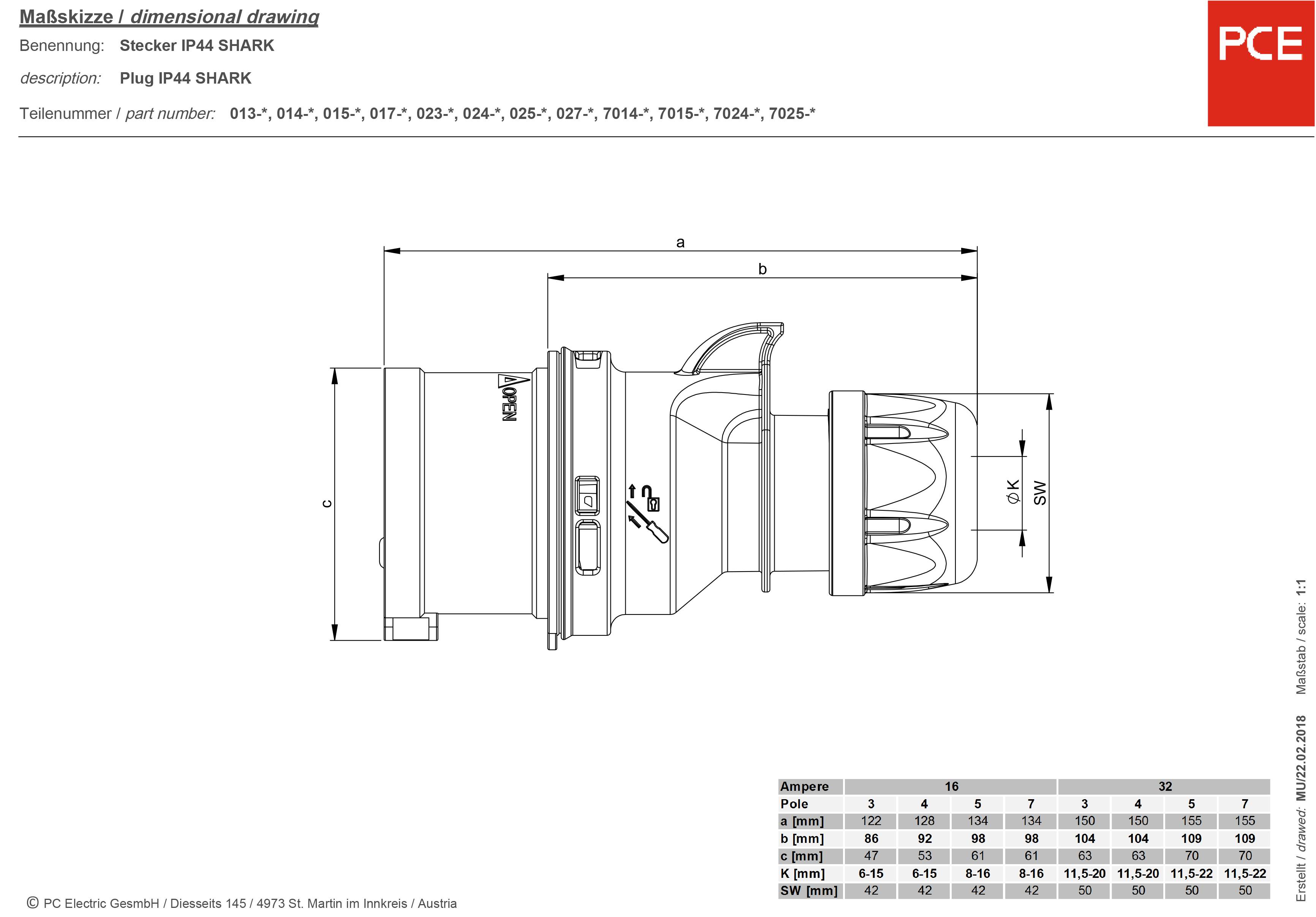

Datasheet
Datasheet 618217 PCE 025-6 CEE plug 32 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 618217 PCE 025-6 CEE plug 32 A 5-pin 400 V 1 pc(s)
Description
Round connectors DIN 49462/63, VDE 0623, CEE 17, IEC 309, plastic-encased, with plastic insert, 5-pole, 3 P + N + E.
Features
- CEE-plug 32A 5p 6h IP44/IP54 SHARK<>br Housing material<>: PA6
- Number of pins: 5 (3P+N+PE) br<>Time position: 6h
- Rated voltage / frequency<><>: 200/346V~ - 240/415V~ / 50+60Hz br Contacts: Brass br Connection technology: Screw terminals br<>Protection type: IP44/IP54
