Buy PCE Power Twist 245-6 CEE connector 125 A 5-pin 400 V 1 pc(s)

Grey and red industrial connector with a removable red cover showing multiple connection openings.

A car tyre sits on a connector on an asphalt road. The connector is red and grey and is pinched by the tyre.

A grey pipe with a red valve floats in flowing water. It is half-submerged, with water currents visibly moving along its surface.

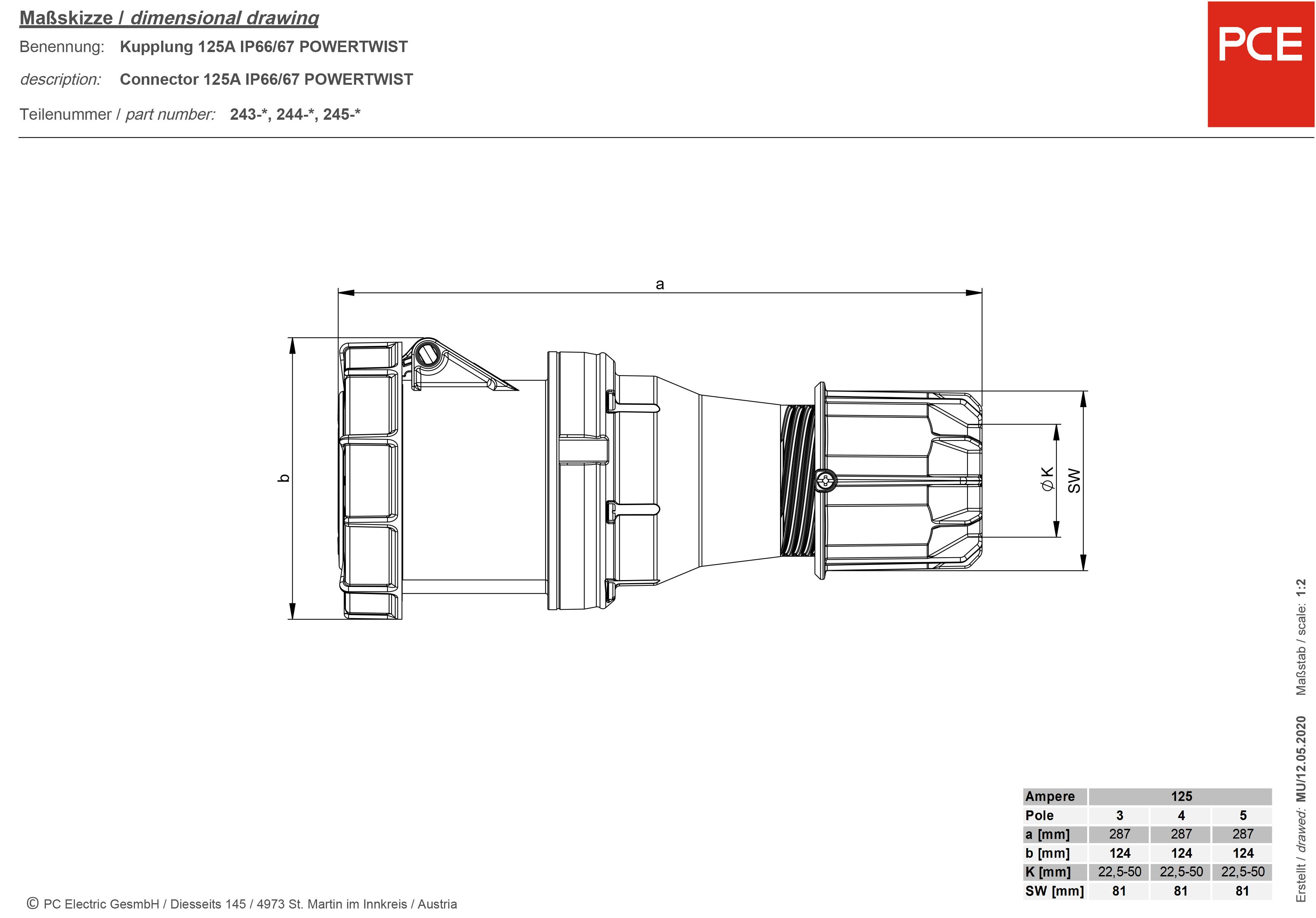

Technical drawing of a connector PCE 125A IP66/67 POWERTWIST. Details of dimensions, product numbers, and current rating.

1/4

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

67 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 105.03 / piece)

€ 105.03

plus VAT.

Report legal concerns

Highlights & Details

CEE COUPLING 125 A IP67

IP67
Extremely robust

Technical specifications

Product type: CEE connector

Features: Extremely robust

Nominal voltage: 400 V

Nominal current: 125 A

Nominal current - rounded value: 125 A

Type A: Screws

Type B: CEE connector

Cores: 5

: IP67

Factory colour: Red

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 613480 PCE Power Twist 245-6 CEE connector 125 A 5-pin 400 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 613480 PCE Power Twist 245-6 CEE connector 125 A 5-pin 400 V 1 pc(s)

Description

The casing is characterized by special impact resistance and is suitable for harsh environmental conditions. With high heating conditions, contact carriers and corrosion-resistant contacts.

This text is machine translated.

Features

CEE-clutch 125A 5p 6h IP67 Power TWIST<><>
pins: 5 (3P+N+PE) br<>Time position: 6h
rated voltage/frequency<><>: 200/346V~ - 240/415V~ / 50+60Hz br contacts: Brass, with leaf contact (cube) br connection technology: Frame terminals with screws br<>Protection type: IP66/IP67
