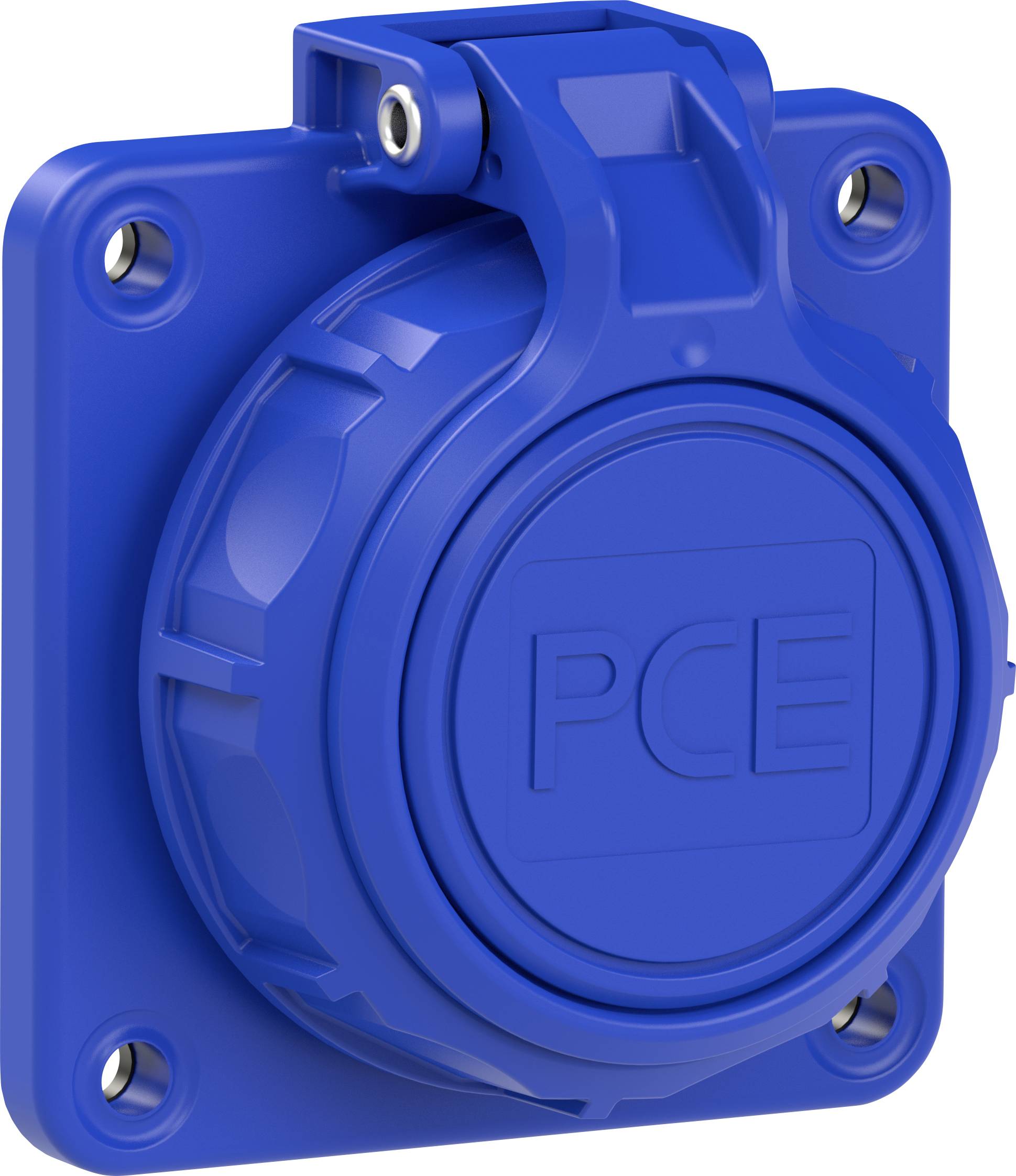

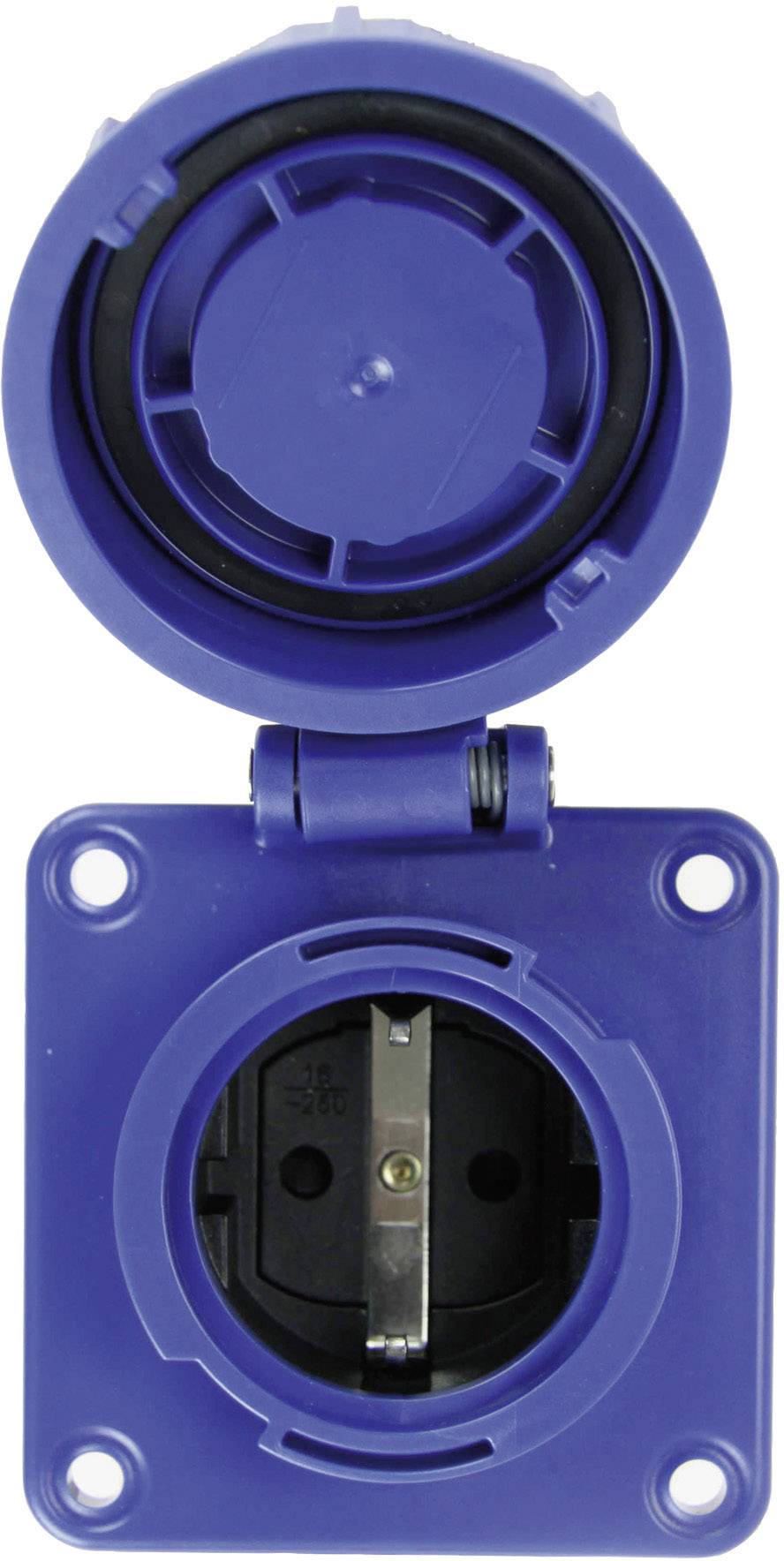

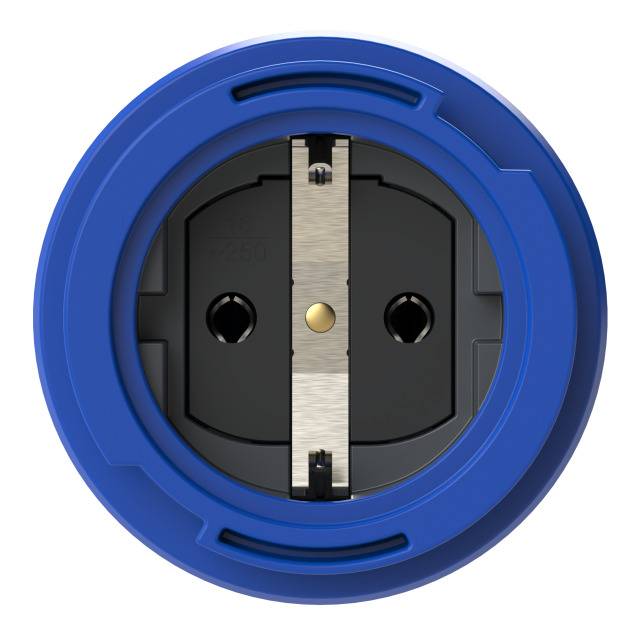

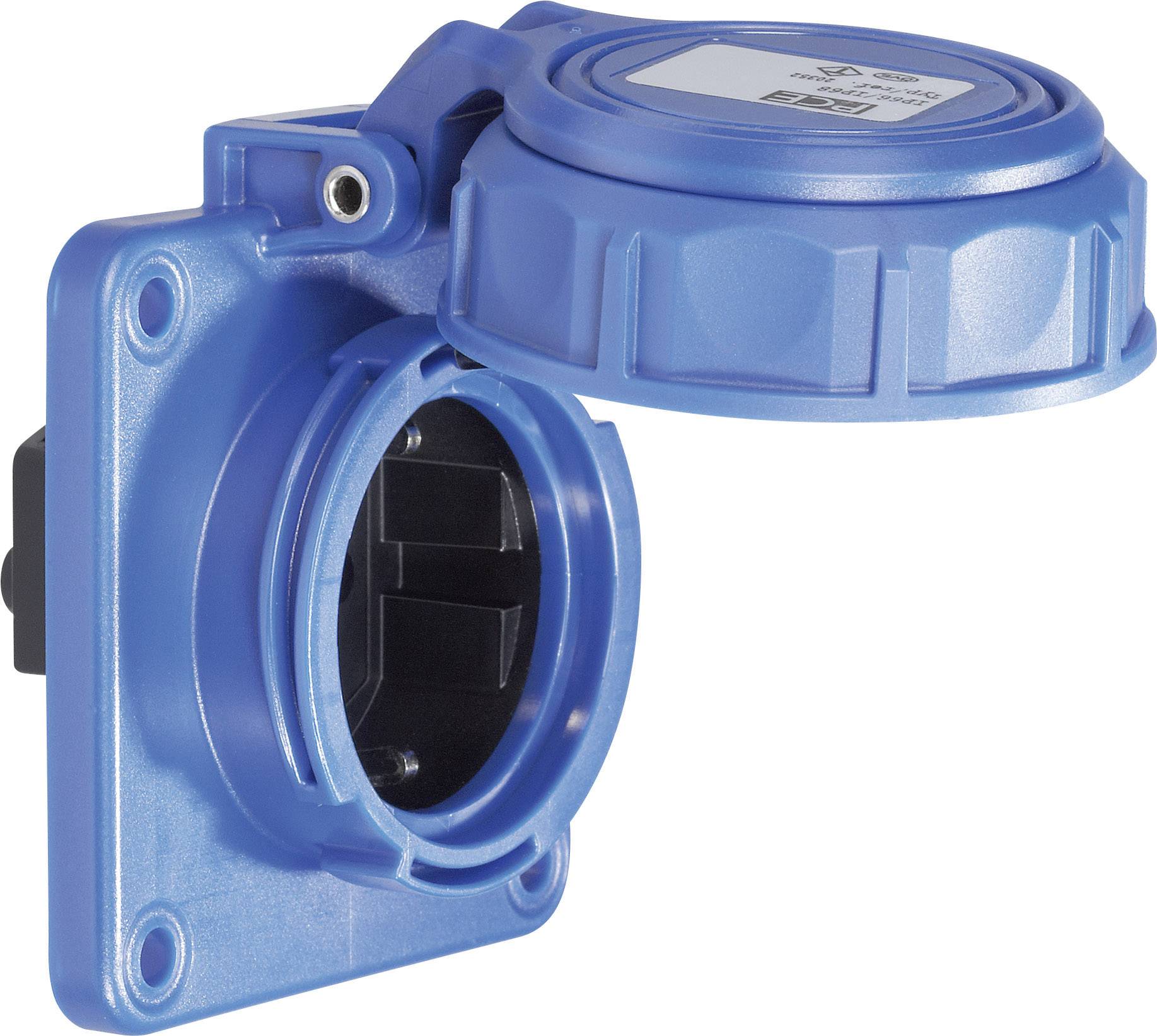

PCE 20352-8b Add-on socket IP68 Blue
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.05
€ 25.83
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€
Highlights & Details
Mounting Socket with hinged lid
- 4-point attachment
- IP68
Technical specifications
- Product type
Add-on socket
- Outlets
1
- Nominal voltage
230 V
- Nominal current
16 A
- Mounting type
Enclosure
Recess-mount
- Design type
Angular, with hinged lid
- Recess diameter
43 mm
- Mounting depth
25 mm
- Flange dimensions
75 x 75 mm
- Factory colour
Blue
IP68
- Dim
(W x H x D) 75 x 84 x 61 mm
- Width
75 mm
- Height
84 mm
- Depth
61 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 552993 PCE 20352-8b Add-on socket IP68 Blue
User & Safety Instructions
User & Safety Instructions 552993 PCE 20352-8b Add-on socket IP68 Blue
Description
Pressurised water density safety contact socket up to 2 bar/2 h and conductor cross-section 1-2x 2.5 mm². Hole spacing 60 x 60 mm.
